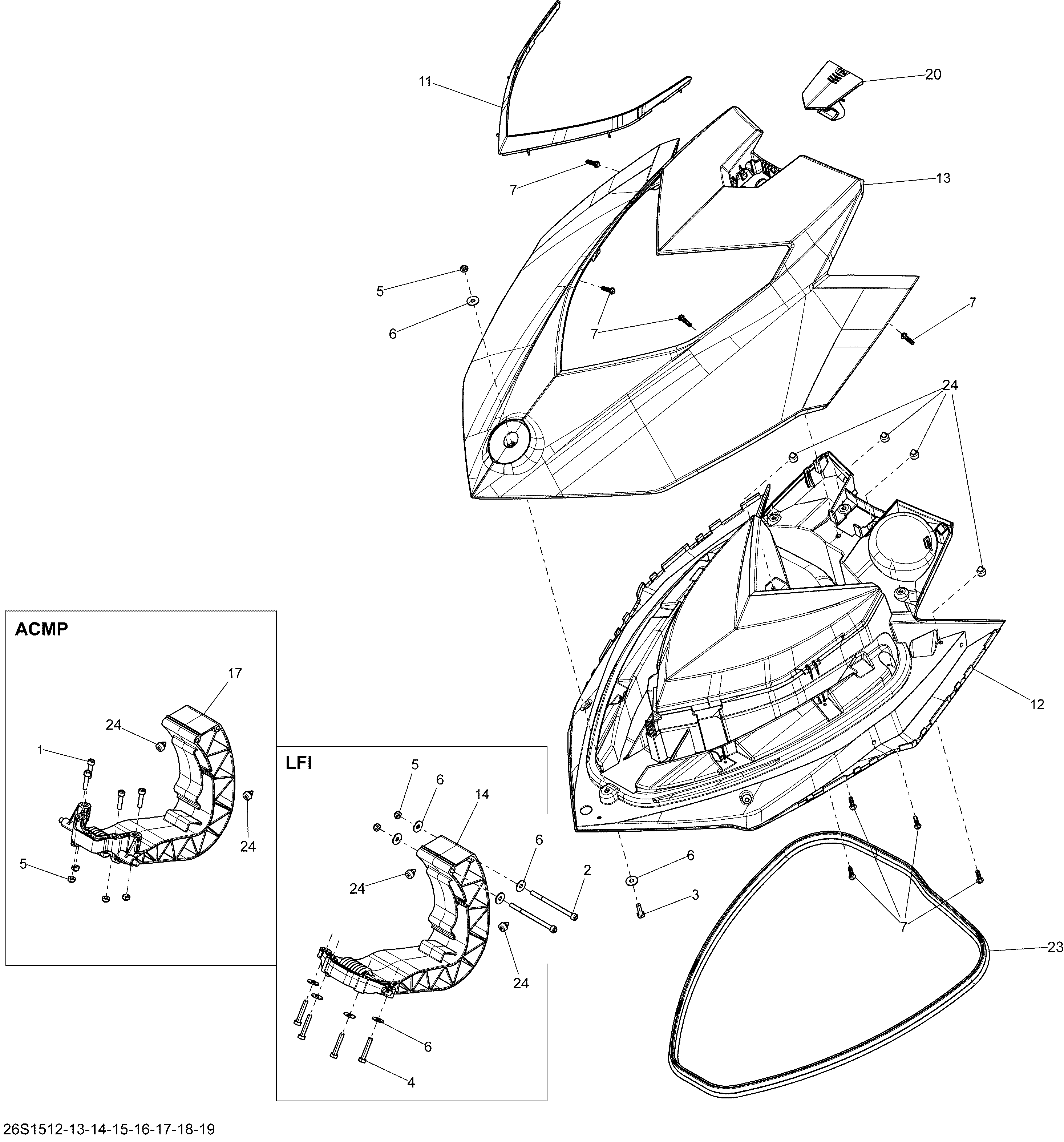

09- Front Cover _26S1517 для BRP WAKE 155 - 2015
-
№АртикулНазвание
-
1205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
2205069060 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
3207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
4207363560 Screw Hex. M6 X 35, Scotch GripScrew Hex. M6 X 35, Scotch Grip
-
5232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
6234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
7241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
11269502008 Dragon Red Front MouldingDragon Red Front Moulding
-
12269502046 Lower Storage CoverLower Storage Cover
-
13269502042 Black Storage CoverBlack Storage Cover
-
14269501944 Hinge Ass'yHinge Ass'y
-
17269501944 Hinge Ass'yHinge Ass'y
-
20269700142 Latch LeverLatch Lever
-
23293250047 Neoprene SealNeoprene Seal
-
24293830005 Rubber BumperRubber Bumper
