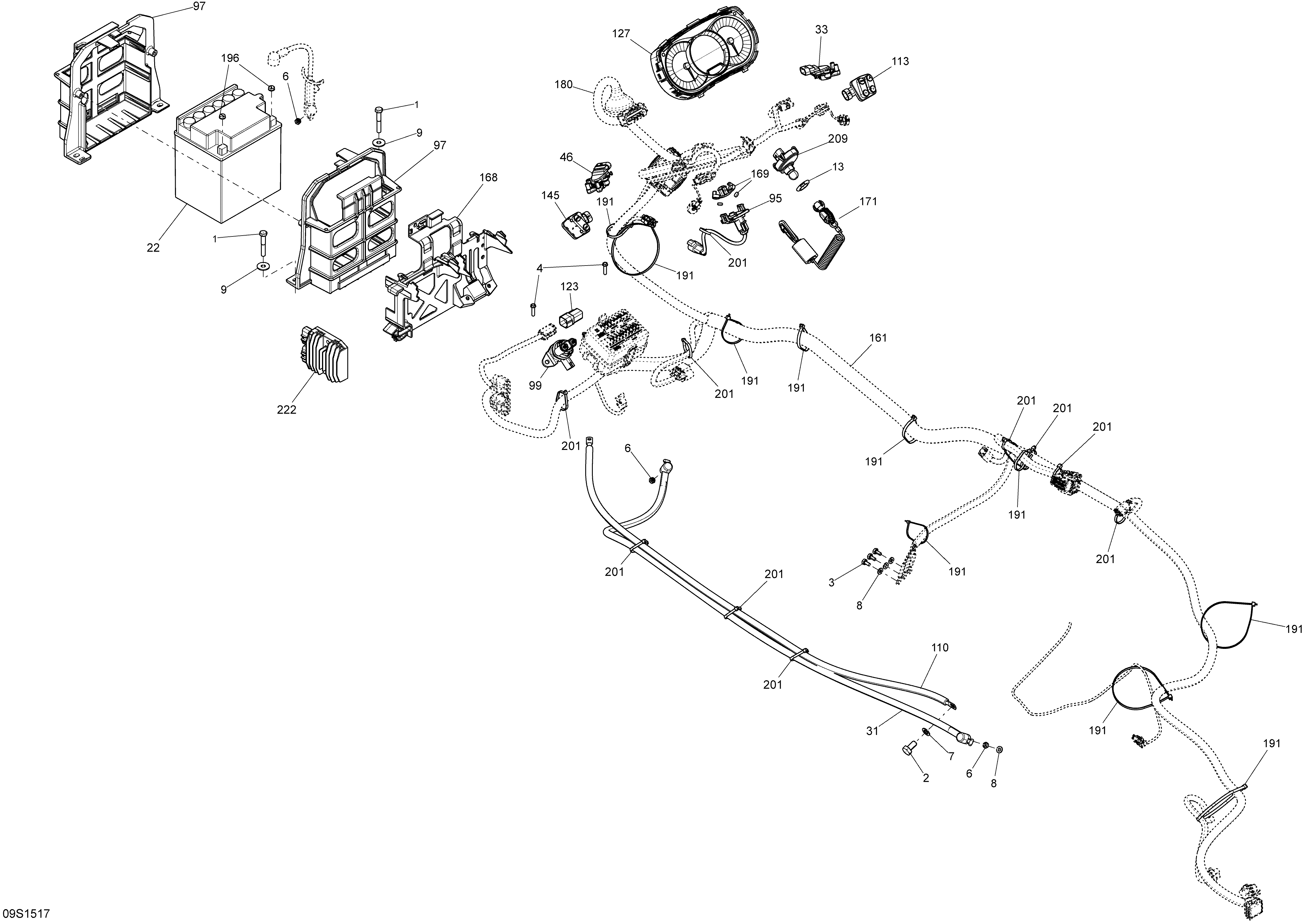

10- Electrical System _09S1517 для BRP WAKE 155 - 2015
-
№АртикулНазвание
-
1207185060 Hex Screw M8 X 50Hex Screw M8 X 50
-
2207302060 Hex. Screw M10 X 20, Scotch GripHex. Screw M10 X 20, Scotch Grip
-
3207361260 Hex. Screw M6 X 12, Scotch GripHex. Screw M6 X 12, Scotch Grip
-
4211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
6232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
7234000600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
8234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
9234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
13278002963 Safety NutSafety Nut
-
22278001882 Battery 30 AMPBattery 30 AMP
-
31278003267 Starter HarnessStarter Harness
-
33278002283 RH Throttle SensorRH Throttle Sensor
-
46278002284 LH Throttle SensorLH Throttle Sensor
-
95278003009 O.T.A.S. Sensor Ass'yO.T.A.S. Sensor Ass'y
-
97278002339 Battery SupportBattery Support
-
99278003012 Starter RelayStarter Relay
-
110278003270 Battery Ground CableBattery Ground Cable
-
113278002602 SwitchSwitch
-
123278002704 Diagnostic ConnectorDiagnostic Connector
-
127278003214 Central Information Cluster SECentral Information Cluster SE
-
145278002768 SwitchSwitch
-
161278003256 Main Harness Ass'yMain Harness Ass'y
-
168278003048 SupportSupport
-
169278003053 O.T.A.S ActuatorO.T.A.S Actuator
-
171278003092 Anti-Theft Tether CordAnti-Theft Tether Cord
-
171278003093 Learning Tether CordLearning Tether Cord
-
180278003262 Steering Harness Ass'ySteering Harness Ass'y
-
191293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
196250000282 Battery Bolt KitBattery Bolt Kit
-
201414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
209515177458 SwitchSwitch
-
222710001103 Voltage RegulatorVoltage Regulator
