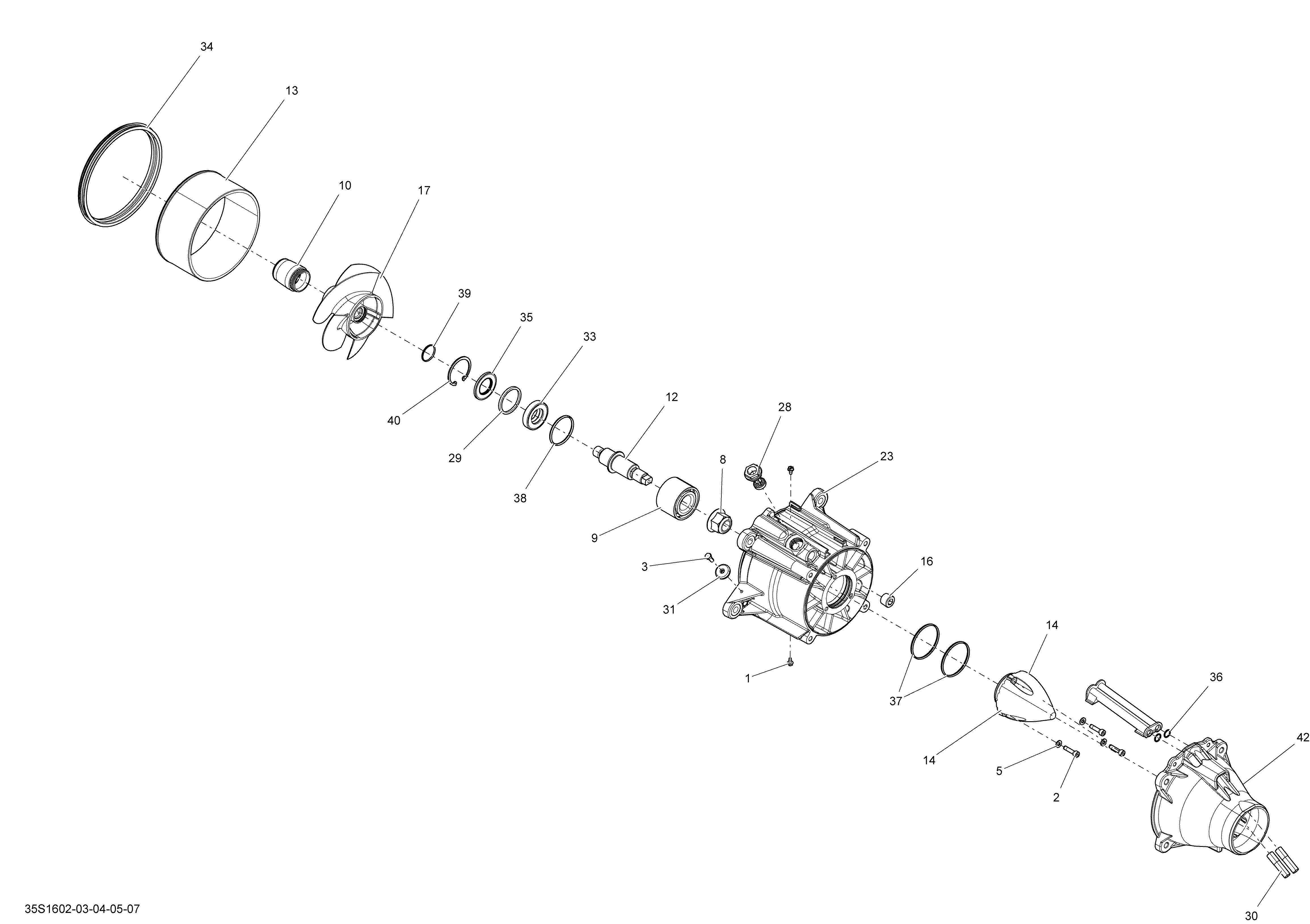

05- Pump для BRP Wake PRO - 2016
-
№АртикулНазвание
-
1204100269 Hex. Screw 10-32 X 3/8'', StainlessHex. Screw 10-32 X 3/8'', Stainless
-
2205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
3207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
5234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
8250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
9267000900 Angled BearingAngled Bearing
-
10267000458 Impeller BootImpeller Boot
-
12267000388 Impeller ShaftImpeller Shaft
-
13267000372 Wear RingWear Ring
-
14267000428 Impeller CoverImpeller Cover
-
16267000469 Plug Plastic, BlackPlug Plastic, Black
-
17267000623 Impeller Ass'yImpeller Ass'y
-
23267000852 Impeller HousingImpeller Housing
-
28267000282 PlugPlug
-
29271001393 SpacerSpacer
-
30271001885 Siphon TubeSiphon Tube
-
31271001920 Anode ZincAnode Zinc
-
33293200086 Oil SealOil Seal
-
34293200087 Neoprene SealNeoprene Seal
-
35293200089 Oil SealOil Seal
-
36293300013 O-RingO-Ring
-
37293300086 O-RingO-Ring
-
38293300090 O-RingO-Ring
-
39293300114 O-RingO-Ring
-
40293370038 CirclipCirclip
-
42267000844 Black VenturiBlack Venturi
