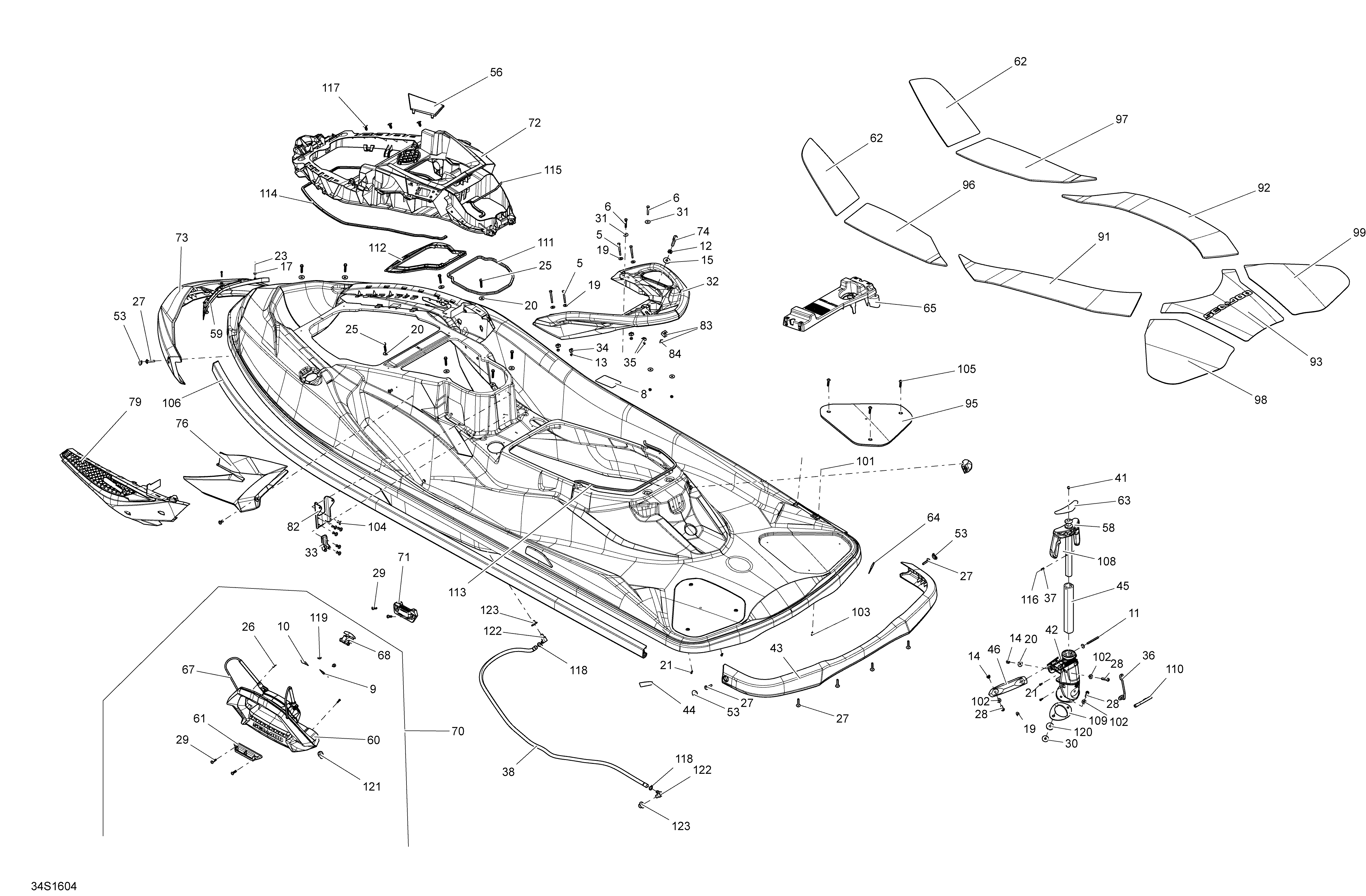

09- Body для BRP Wake PRO - 2016
-
№АртикулНазвание
-
5207065560 Hex. Screw M6 x 55Hex. Screw M6 x 55
-
6207164060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
9219903228 Warning WAKEWarning WAKE
-
10219903240 WAKE-PRO DecalWAKE-PRO Decal
-
11230006060 Hex. Screw M6 x 100Hex. Screw M6 x 100
-
12232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
13232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
14232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
15234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
17234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
19234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
20234082600 Flat Washer 8 mmFlat Washer 8 mm
-
21241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
23241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
25243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
26250000287 Allen Flanged Screw K40x16Allen Flanged Screw K40x16
-
27250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
28250000452 Torx Screw M8 X 40, StainlessTorx Screw M8 X 40, Stainless
-
29250000466 Torx Screw Plastite M6Torx Screw Plastite M6
-
30250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
31250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
32291004623 Manta Green-Rear HandleManta Green-Rear Handle
-
34269500252 Housing Nut Ass'yHousing Nut Ass'y
-
35269501166 Nut Housing Ass'yNut Housing Ass'y
-
36269501299 StrapStrap
-
37269501651 Ball SpringBall Spring
-
38275000008 Hose 12 mm, MeterHose 12 mm, Meter
-
41291001519 Bumper Plug, BlackBumper Plug, Black
-
43291004274 Rear BumperRear Bumper
-
44291002626 LH NonskidLH Nonskid
-
45291002642 Aluminum PostAluminum Post
-
46291002711 LH Lateral ArmLH Lateral Arm
-
46291002712 RH Lateral ArmRH Lateral Arm
-
53291002744 Bumber CapBumber Cap
-
56291002756 Front Rewinder CapFront Rewinder Cap
-
58291002812 Molded HandleMolded Handle
-
59291002818 Deck NoseDeck Nose
-
60291003101 Board Support KitBoard Support Kit
-
61291002864 Lower AnchorageLower Anchorage
-
62291002931 RH Front CarpetRH Front Carpet
-
62291002930 LH Front CarpetLH Front Carpet
-
63219903137 Warning LabelWarning Label
-
64291002937 RH NonskidRH Nonskid
-
65291002947 Lower Deck Ass'yLower Deck Ass'y
-
67291002979 Elastic Rope Ass'yElastic Rope Ass'y
-
68291002980 LatchLatch
-
70291003101 Board Support KitBoard Support Kit
-
71291003582 Upper AnchorageUpper Anchorage
-
72291004400 Front ModuleFront Module
-
73291004275 Front BumperFront Bumper
-
74291003878 Seat StudSeat Stud
-
76291004245 RH CosmeticRH Cosmetic
-
76291004240 LH CosmeticLH Cosmetic
-
79291004176 Front RH Cosmetic AssFront RH Cosmetic Ass
-
79291004177 Front LH Cosmetic AssFront LH Cosmetic Ass
-
82291004210 Seat PivotSeat Pivot
-
83271001732 Elastic Nut M10 HousingElastic Nut M10 Housing
-
84232501200 Elastic Stop Nut M10, BrassElastic Stop Nut M10, Brass
-
91291004361 CarpetCarpet
-
92291004362 CarpetCarpet
-
93291004291 CarpetCarpet
-
95291004295 LH SpacerLH Spacer
-
96291004359 CarpetCarpet
-
97291004360 CarpetCarpet
-
98291004336 CarpetCarpet
-
99291004337 CarpetCarpet
-
101293000014 Black Snap CapBlack Snap Cap
-
102293050001 Flat WasherFlat Washer
-
103293150016 Rivet 1/8''Rivet 1/8''
-
104293150123 Pop Rivet 3/16''Pop Rivet 3/16''
-
105250000879 Screw-Plastite Torx M6.81X30Screw-Plastite Torx M6.81X30
-
106291004304 BumperBumper
-
108293150167 Type ''U'' Metallic Drive ScrewType ''U'' Metallic Drive Screw
-
109293250151 SealSeal
-
110293250183 StrapStrap
-
111293250200 Neoprene SealNeoprene Seal
-
112293250365 Neoprene SealNeoprene Seal
-
113293250218 GasketGasket
-
114293250259 GasketGasket
-
115293250376 SealSeal
-
116293350062 Ball 1/4''Ball 1/4''
-
117293730010 Black DartBlack Dart
-
118293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
119293830005 Rubber BumperRubber Bumper
-
120293830037 Rubber WasherRubber Washer
-
121293830119 Rubber BufferRubber Buffer
-
122414523600 Elbow FittingElbow Fitting
-
123513033435 GrommetGrommet
