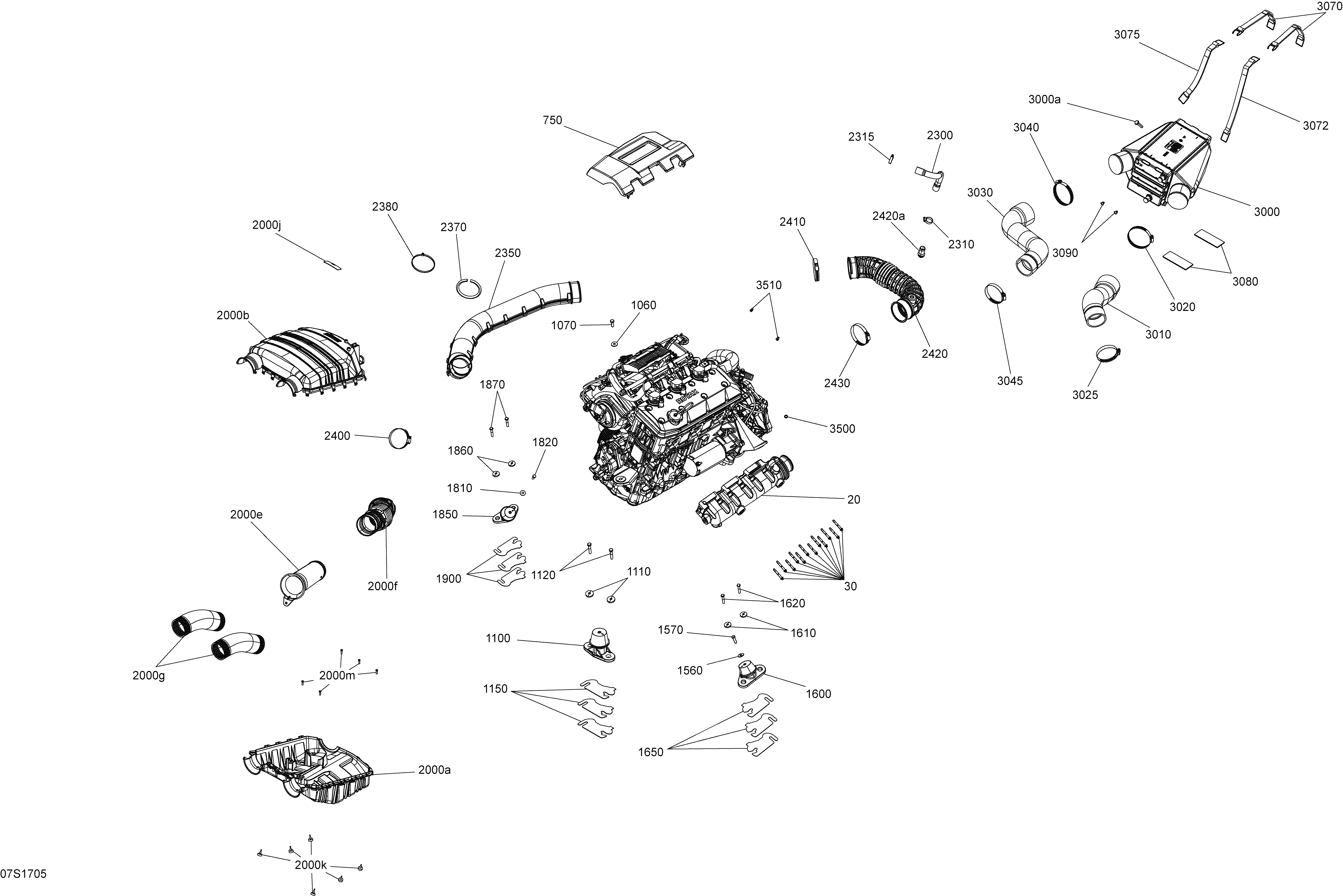

01- Engine - All Models для BRP RXP - 2017
-
№АртикулНазвание
-
20274001553 Engine Exhaust ManifoldEngine Exhaust Manifold
-
30420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
750270001002 Cover Ass'yCover Ass'y
-
1060234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1070207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1100270000885 Rubber MountRubber Mount
-
1110250200018 Cone WasherCone Washer
-
1120250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1150270000762 Shim 1.3 mmShim 1.3 mm
-
1560234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1570207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1600270000882 Rubber MountRubber Mount
-
1610250200018 Cone WasherCone Washer
-
1620250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1650270000762 Shim 1.3 mmShim 1.3 mm
-
1810234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
1820207382560 Hex. Screw M8 X 25, Scotch GripHex. Screw M8 X 25, Scotch Grip
-
1850270000882 Rubber MountRubber Mount
-
1860250200018 Cone WasherCone Washer
-
1870250000782 Hexagonal Head Cap Screw M8 X 45Hexagonal Head Cap Screw M8 X 45
-
1900270000762 Shim 1.3 mmShim 1.3 mm
-
2000a273000342 Airbox BaseAirbox Base
-
2000b273000373 Airbox CoverAirbox Cover
-
2000e273000359 Intake HoseIntake Hose
-
2000f273000306 Hose ConnectorHose Connector
-
2000g273000290 Air Silencer HoseAir Silencer Hose
-
2000j219903177 Notice Decal, Air SilencerNotice Decal, Air Silencer
-
2000k708000759 Rubber StopperRubber Stopper
-
2000m250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
2300270000950 Formed HoseFormed Hose
-
2310293650051 Tridon Gear ClampTridon Gear Clamp
-
2315293650051 Tridon Gear ClampTridon Gear Clamp
-
2350273000311 Intake Hose, CenterIntake Hose, Center
-
2370415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
2380293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2400293650179 Tridon ClampTridon Clamp
-
2410293650179 Tridon ClampTridon Clamp
-
2420>2420a273000328 Hose Intake, Rear. Includes 2420 to 2420aHose Intake, Rear. Includes 2420 to 2420a
-
2420a273000234 BreatherBreather
-
2430293650179 Tridon ClampTridon Clamp
-
3000>3000a276000335 Intercooler. Includes 3000 to 3000aIntercooler. Includes 3000 to 3000a
-
3000a271001942 Anode ZincAnode Zinc
-
3010273000338 Inlet HoseInlet Hose
-
3020293650244 Tridon Gear ClampTridon Gear Clamp
-
3025293650179 Tridon ClampTridon Clamp
-
3030273000339 Outlet HoseOutlet Hose
-
3040293650244 Tridon Gear ClampTridon Gear Clamp
-
3045293650179 Tridon ClampTridon Clamp
-
3070293850094 Fuel Tank StrapFuel Tank Strap
-
3072293850093 StrapStrap
-
3075293850095 Fuel Tank StrapFuel Tank Strap
-
3080293830178 Pad-RubberPad-Rubber
-
3090293730016 Dart, BlackDart, Black
-
3500293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3510293750002 Tie-Rap 142 mmTie-Rap 142 mm
