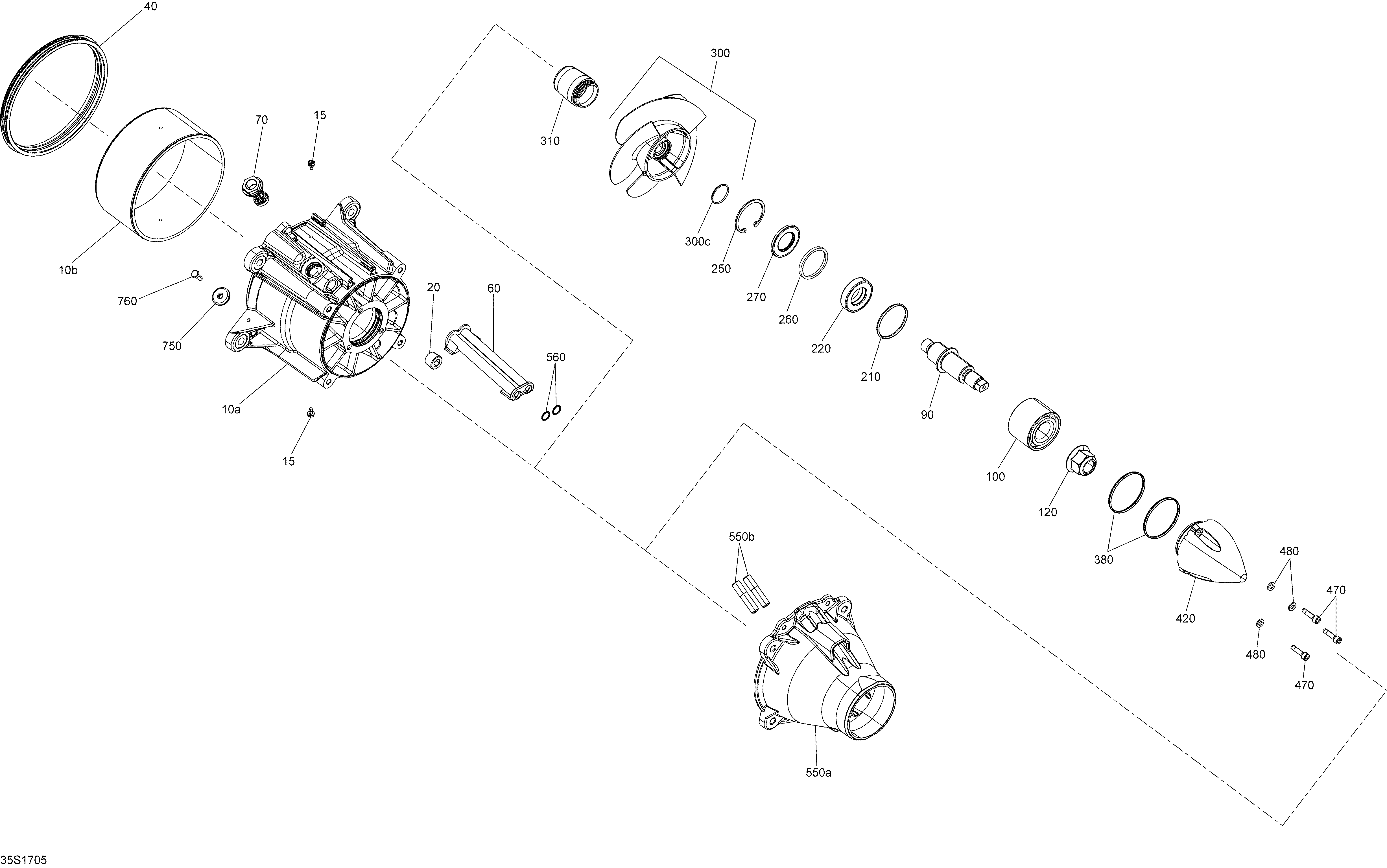

05- Pump - All Models для BRP RXP - 2017
-
№АртикулНазвание
-
10a267000852 Impeller HousingImpeller Housing
-
10b267000917 Wear RingWear Ring
-
15204100269 Hex. Screw 10-32 X 3/8'', StainlessHex. Screw 10-32 X 3/8'', Stainless
-
20267000469 Plug Plastic, BlackPlug Plastic, Black
-
40293200087 Neoprene SealNeoprene Seal
-
60271000785 Water OutletWater Outlet
-
70267000282 PlugPlug
-
90267000388 Impeller ShaftImpeller Shaft
-
100267000900 Angled BearingAngled Bearing
-
120250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
210293300090 O-RingO-Ring
-
220293200086 Oil SealOil Seal
-
250293370038 CirclipCirclip
-
260271001393 SpacerSpacer
-
270293200089 Oil SealOil Seal
-
300>300c267000803 Stainless Steel Impeller Ass'y. Includes 300 to 300cStainless Steel Impeller Ass'y. Includes 300 to 300c
-
300c293300114 O-RingO-Ring
-
310267000929 Impeller BootImpeller Boot
-
380293300086 O-RingO-Ring
-
420267000428 Impeller CoverImpeller Cover
-
470205562560 Socket Head Screw M6 X 25, Scotch GripSocket Head Screw M6 X 25, Scotch Grip
-
480234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
550a267000844 Black VenturiBlack Venturi
-
550b271001885 Siphon TubeSiphon Tube
-
560293300013 O-RingO-Ring
-
750271001920 Anode ZincAnode Zinc
-
760207361660 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
