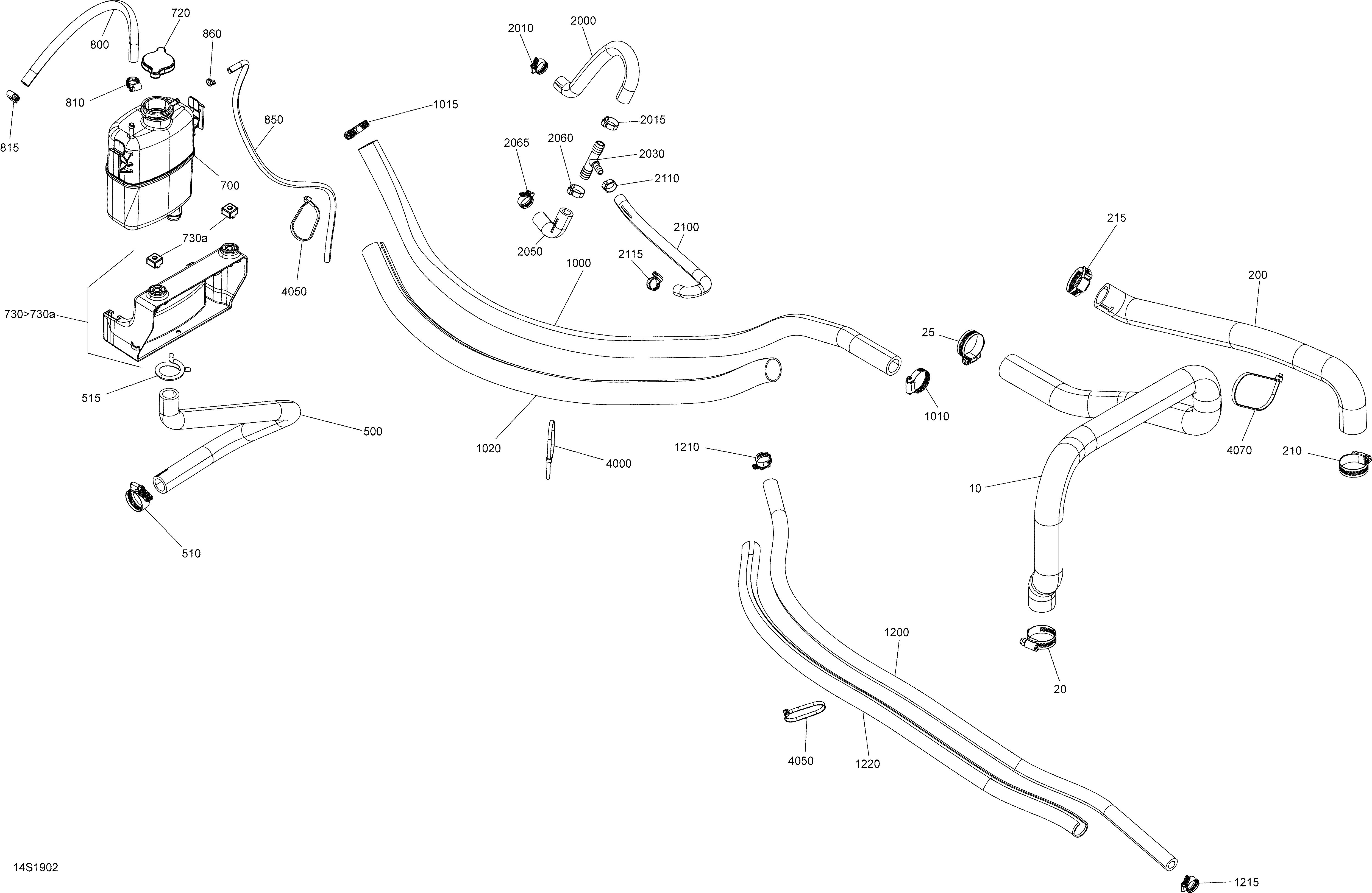

01- Cooling System Package Rental для BRP 003 - GTI 130 Rental - 2019
-
№АртикулНазвание
-
10276000426 Radiator HoseRadiator Hose
-
20293650280 Clamp GearClamp Gear
-
25293650280 Clamp GearClamp Gear
-
200276000248 RH Radiator HoseRH Radiator Hose
-
210293650280 Clamp GearClamp Gear
-
215293650280 Clamp GearClamp Gear
-
500276000364 Hose-MoldedHose-Molded
-
510293650290 Clamp GearClamp Gear
-
515293650115 Spring ClampSpring Clamp
-
700276000086 Coolant TankCoolant Tank
-
720276000100 Pressure CapPressure Cap
-
730>730a291004446 Tank Holder Ass'y. Includes 730 TO 730aTank Holder Ass'y. Includes 730 TO 730a
-
730a269501166 Nut Housing Ass'yNut Housing Ass'y
-
800276000394 Hose 6.4 mmHose 6.4 mm
-
810293650287 Clamp GearClamp Gear
-
815293650287 Clamp GearClamp Gear
-
850293830193 Polyurethane HosePolyurethane Hose
-
860293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
1000276000158 Hose 19 mmHose 19 mm
-
1010293650284 Clamp GearClamp Gear
-
1015293650284 Clamp GearClamp Gear
-
1020409902200 Tubing 25 mmTubing 25 mm
-
1200296000303 Hose 12.5 mmHose 12.5 mm
-
1210293650285 Clamp GearClamp Gear
-
1215293650285 Clamp GearClamp Gear
-
1220515175319 Tubing 22 mmTubing 22 mm
-
1270515175319 Tubing 22 mmTubing 22 mm
-
2000276000244 Formed HoseFormed Hose
-
2010293650285 Clamp GearClamp Gear
-
2015293650012 Oetiker ClampOetiker Clamp
-
2030293710116 T-FittingT-Fitting
-
2050276000245 Lower Formed HoseLower Formed Hose
-
2060293650012 Oetiker ClampOetiker Clamp
-
2065293650285 Clamp GearClamp Gear
-
2100276000246 Formed HoseFormed Hose
-
2110293650030 Oetiker ClampOetiker Clamp
-
2115293650285 Clamp GearClamp Gear
-
4000293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4050414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
4070293750008 Tie-Rap 350 mmTie-Rap 350 mm
