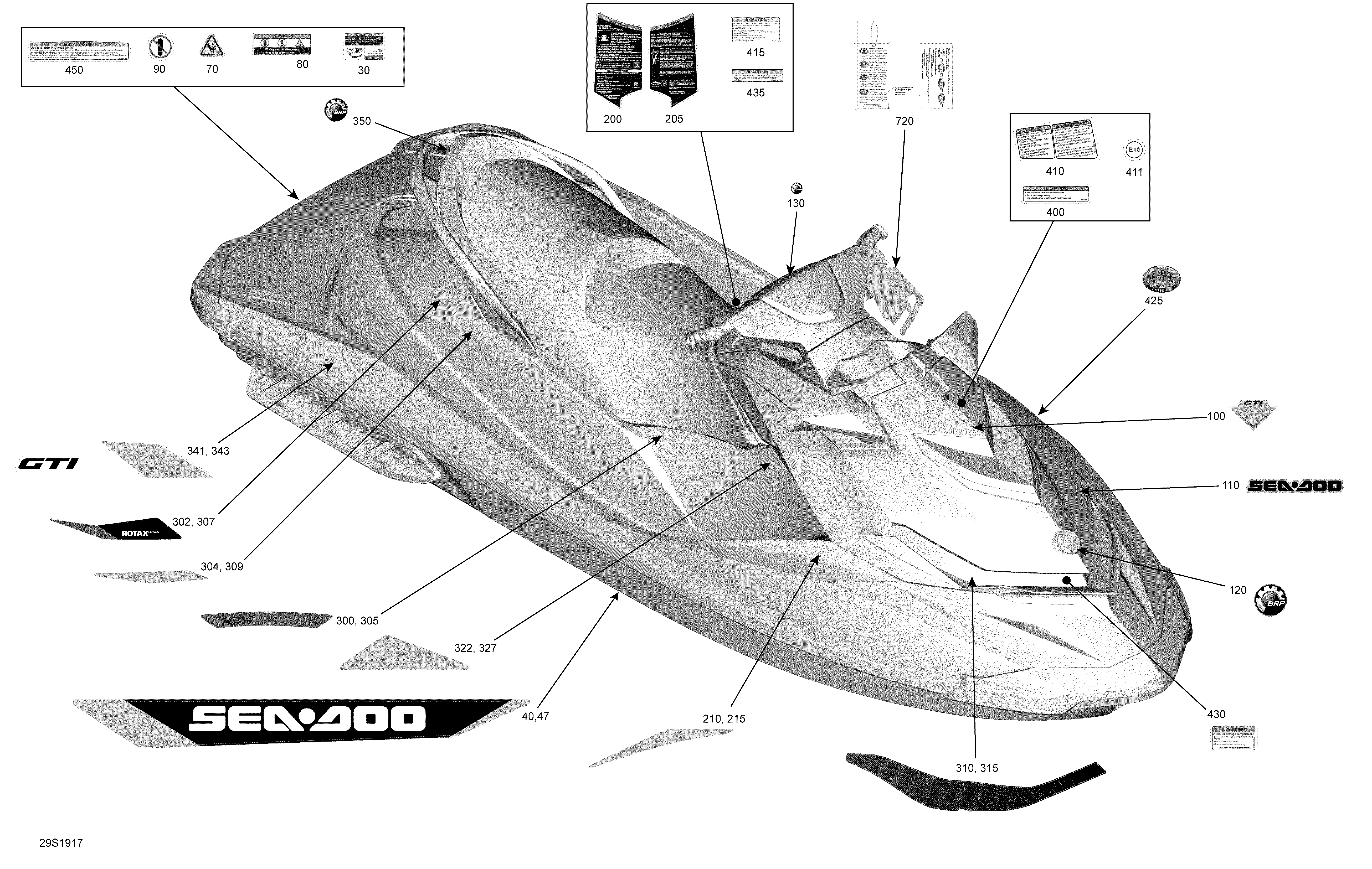

09- Decals для BRP 003 - GTI 130 Rental - 2019
-
№АртикулНазвание
-
30219903301 Warning Decal, Tip Over/HeatWarning Decal, Tip Over/Heat
-
40219905470 SEA-DOO Hull Decal LeftSEA-DOO Hull Decal Left
-
47219905471 SEA-DOO Hull Decal RightSEA-DOO Hull Decal Right
-
70219903077 Decal Hand, Risk Of InjuryDecal Hand, Risk Of Injury
-
80219903078 Warning Decal, Risk Of Injury. Model With IBRWarning Decal, Risk Of Injury. Model With IBR
-
90219904804 Pictogram Foot Gate Label. Model With IBRPictogram Foot Gate Label. Model With IBR
-
100219905547 Deflector DecalDeflector Decal
-
110219905432 Front SEA-DOO DecalFront SEA-DOO Decal
-
120516008739 BRP Logo, 68mmBRP Logo, 68mm
-
130516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
200219905338 General Warning Decal LeftGeneral Warning Decal Left
-
205219903448 RH Warning Decal, SecurityRH Warning Decal, Security
-
210219905278 LH Decal Side FrontLH Decal Side Front
-
215219905279 RH Decal Side FrontRH Decal Side Front
-
300219905538 iBR Decal LH. Model With IBRiBR Decal LH. Model With IBR
-
300219905548 Center Decal. Model Without IBRCenter Decal. Model Without IBR
-
302219905536 Decal Rear LHDecal Rear LH
-
304219905438 Decal Rear Lateral LHDecal Rear Lateral LH
-
305219905539 iBR Decal RHiBR Decal RH
-
307219905537 Decal Rear RHDecal Rear RH
-
309219905439 Decal Rear Lateral RHDecal Rear Lateral RH
-
310219905542 Decal Front Lateral LHDecal Front Lateral LH
-
315219905543 Decal Front Lateral RHDecal Front Lateral RH
-
322219905540 Decal Center LH, Manta GreenDecal Center LH, Manta Green
-
327219905541 Decal Center RH, Manta GreenDecal Center RH, Manta Green
-
341219905447 Decal Rear Lateral LHDecal Rear Lateral LH
-
343219905448 Decal Rear Lateral RHDecal Rear Lateral RH
-
350516008738 BRP Logo, 48mmBRP Logo, 48mm
-
400219903082 Warning Decal, BatteryWarning Decal, Battery
-
410219903501 Warning Decal, FuelWarning Decal, Fuel
-
411704907278 Decal - Ethanol Percantage (E10). InternationalDecal - Ethanol Percantage (E10). International
-
415219904829 Engine Oil LabelEngine Oil Label
-
425219902679 Decal, Emission ControlDecal, Emission Control
-
430219903502 Warning Decal, StorageWarning Decal, Storage
-
435219903132 Caution Decal, SecurityCaution Decal, Security
-
450219904576 Decal Warning, Re-BoardDecal Warning, Re-Board
-
720219902678 Label, InformationLabel, Information
