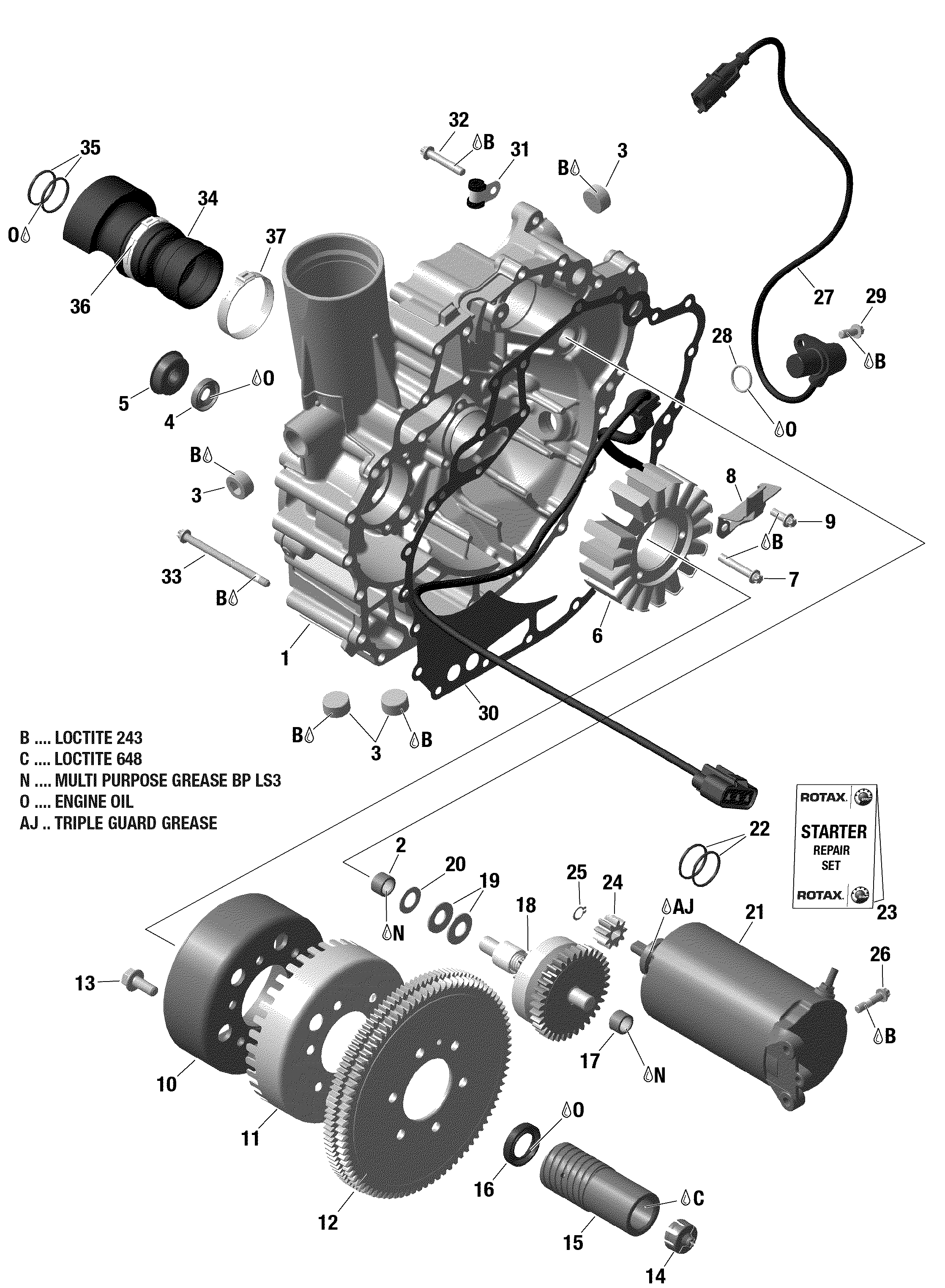

03- PTO Cover And Magneto для BRP 003 - GTX 300 - 2019
-
№АртикулНазвание
-
1>5420912261 Timing Drive CoverTiming Drive Cover
-
2420232482 Needle BushingNeedle Bushing
-
3420641317 Plug Screw M20 X 1.5Plug Screw M20 X 1.5
-
4420650315 Oil SealOil Seal
-
5420650370 Rotary SealRotary Seal
-
6420889728 Stator PlateStator Plate
-
7420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
8420926300 Retaining PlateRetaining Plate
-
9420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
10420296900 Magneto FlywheelMagneto Flywheel
-
11420966851 Trigger WheelTrigger Wheel
-
12420834915 Starter Double Gear 117/86 TStarter Double Gear 117/86 T
-
13295501162 Hex ScrewHex Screw
-
14420660280 Stop SleeveStop Sleeve
-
15420947770 Output SleeveOutput Sleeve
-
16420630551 Sealing RingSealing Ring
-
17420933523 Half-BearingHalf-Bearing
-
18420890637 Bendix StarterBendix Starter
-
19420238300 Spring WasherSpring Washer
-
20420827280 Thrust WasherThrust Washer
-
21>22420888995 Electric Starter Ass'yElectric Starter Ass'y
-
22420631310 O-RingO-Ring
-
23420881340 Carbon Brush SetCarbon Brush Set
-
24420834522 Starter Gear, 9 TeethStarter Gear, 9 Teeth
-
25420845601 Retaining RingRetaining Ring
-
26420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
27>28420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
28420431580 O-RingO-Ring
-
29420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
30420931130 GasketGasket
-
31420853414 ClampClamp
-
32420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
33420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
34>36420832648 Ball Bearing With Bellows Ass'yBall Bearing With Bellows Ass'y
-
35420631610 O-RingO-Ring
-
36420853023 Gear ClampGear Clamp
-
37420851653 Gear ClampGear Clamp
