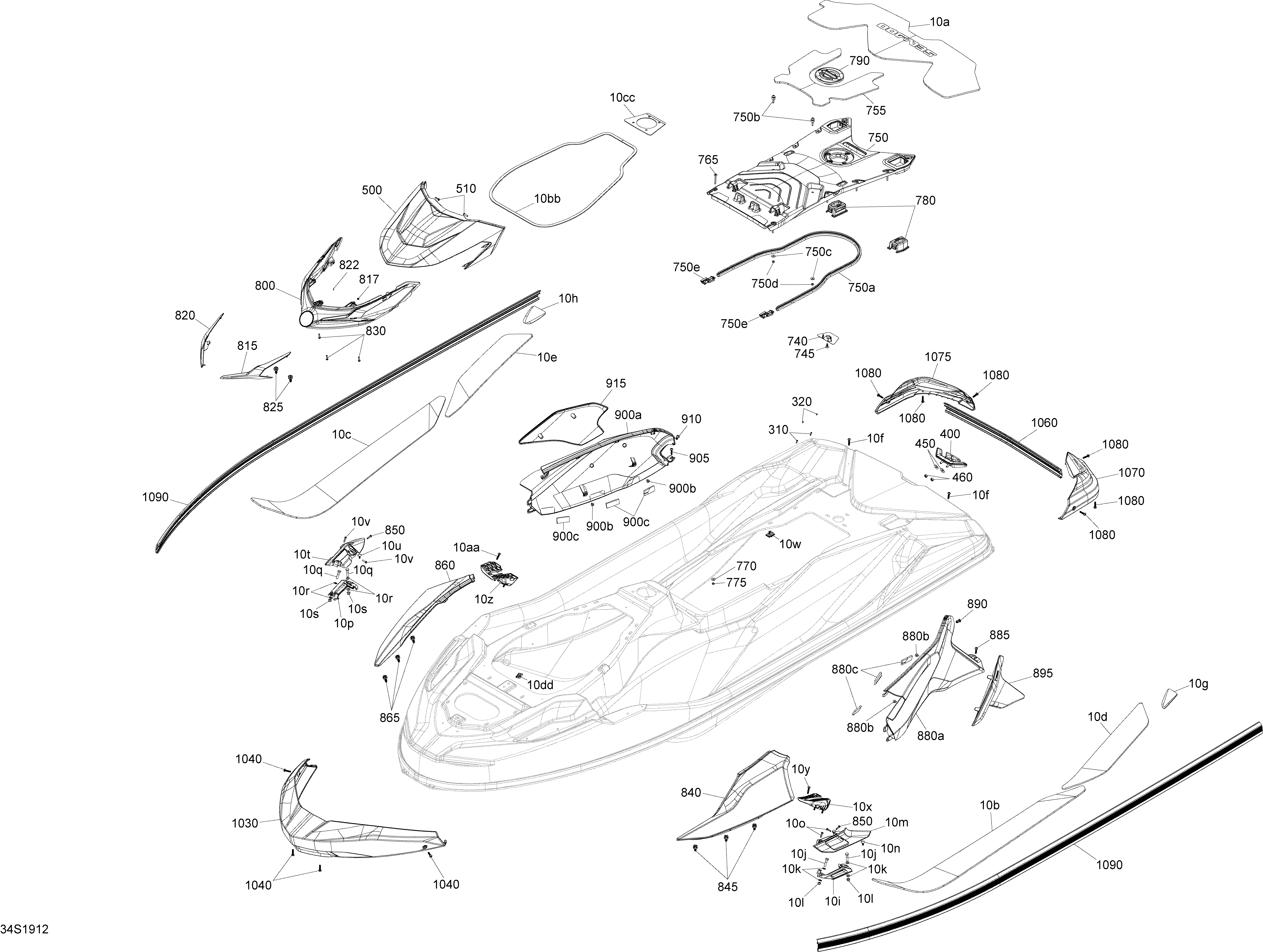

09- Body для BRP 003 - GTX 300 - 2019
-
№АртикулНазвание
-
10a291005075 Rear Plat-Form CarpetRear Plat-Form Carpet
-
10b291005044 Anti Slip Mat FRT LHAnti Slip Mat FRT LH
-
10c291005045 Anti Slip Mat FRT RHAnti Slip Mat FRT RH
-
10d291004514 LH Rear CarpetLH Rear Carpet
-
10e291004515 RH Rear CarpetRH Rear Carpet
-
10f250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10g291004516 Anti-Skid Pad LHAnti-Skid Pad LH
-
10h291004517 Anti-Skid Pad RHAnti-Skid Pad RH
-
10i291004559 LH CleatLH Cleat
-
10j207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10k234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10l232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10m291004661 LH Shell CleatLH Shell Cleat
-
10n293730011 Black DartBlack Dart
-
10o211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10p291004720 RH CleatRH Cleat
-
10q207083560 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10r234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
10s232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
10t291004719 RH Shell CleatRH Shell Cleat
-
10u293730011 Black DartBlack Dart
-
10v211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
10w291004813 Housing Nut M6Housing Nut M6
-
10x291004714 LH SupportLH Support
-
10y250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10z291004715 RH SupportRH Support
-
10aa250001008 Screw-Pastite Torx Cone HD M6 81 X 30Screw-Pastite Torx Cone HD M6 81 X 30
-
10bb293250401 GasketGasket
-
10cc293250451 GasketGasket
-
10dd293750025 Tie-Rap MountTie-Rap Mount
-
310293150016 Rivet 1/8''Rivet 1/8''
-
320293000014 Black Snap CapBlack Snap Cap
-
400291004597 CleatCleat
-
450234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
500291004794 Hood B-160Hood B-160
-
510211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
740291004941 Hose ProtectorHose Protector
-
745293730011 Black DartBlack Dart
-
750291004462 Access Cover Assy. Includes 750 TO 750eAccess Cover Assy. Includes 750 TO 750e
-
750a293200124 Seal, 1 PAC = 3 MSeal, 1 PAC = 3 M
-
750b291004611 StudStud
-
750c234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
750d232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
750e291004717 SealSeal
-
755291004603 Cover B-421Cover B-421
-
765250000708 Screw Torx M6 X 50Screw Torx M6 X 50
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
775232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
780291005048 Cargo BaseCargo Base
-
790291004481 Acces Cap Ass'yAcces Cap Ass'y
-
800291004454 Front GrilleFront Grille
-
815291004491 Trim LH ChromedTrim LH Chromed
-
817211100002 Push NutPush Nut
-
820291004492 Trim RH ChromedTrim RH Chromed
-
822211100002 Push NutPush Nut
-
825293730071 DardDard
-
830211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
840291004553 Body Panel FL B-413 PaintedBody Panel FL B-413 Painted
-
845293730071 DardDard
-
850211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
860291004554 Body Panel FR B-413 PaintedBody Panel FR B-413 Painted
-
865293730071 DardDard
-
880a291004555 Body Panel CTRL L B-413 DrilledBody Panel CTRL L B-413 Drilled
-
880b293830005 Rubber BumperRubber Bumper
-
880c278003618 StopperStopper
-
885250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
890293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
895291004796 Knee Pads LH B-286 AssyKnee Pads LH B-286 Assy
-
900a291004557 Body Panel CTRL L B-413 DrilledBody Panel CTRL L B-413 Drilled
-
900b293830005 Rubber BumperRubber Bumper
-
900c278003618 StopperStopper
-
905250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
910293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
915291004803 Knee Pads RH B-418 AssyKnee Pads RH B-418 Assy
-
1030291004452 Front BumperFront Bumper
-
1040250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1060291004468 BumperBumper
-
1070291004465 Bumper RLBumper RL
-
1075291004466 Bumper RRBumper RR
-
1080250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
1090291004468 BumperBumper
