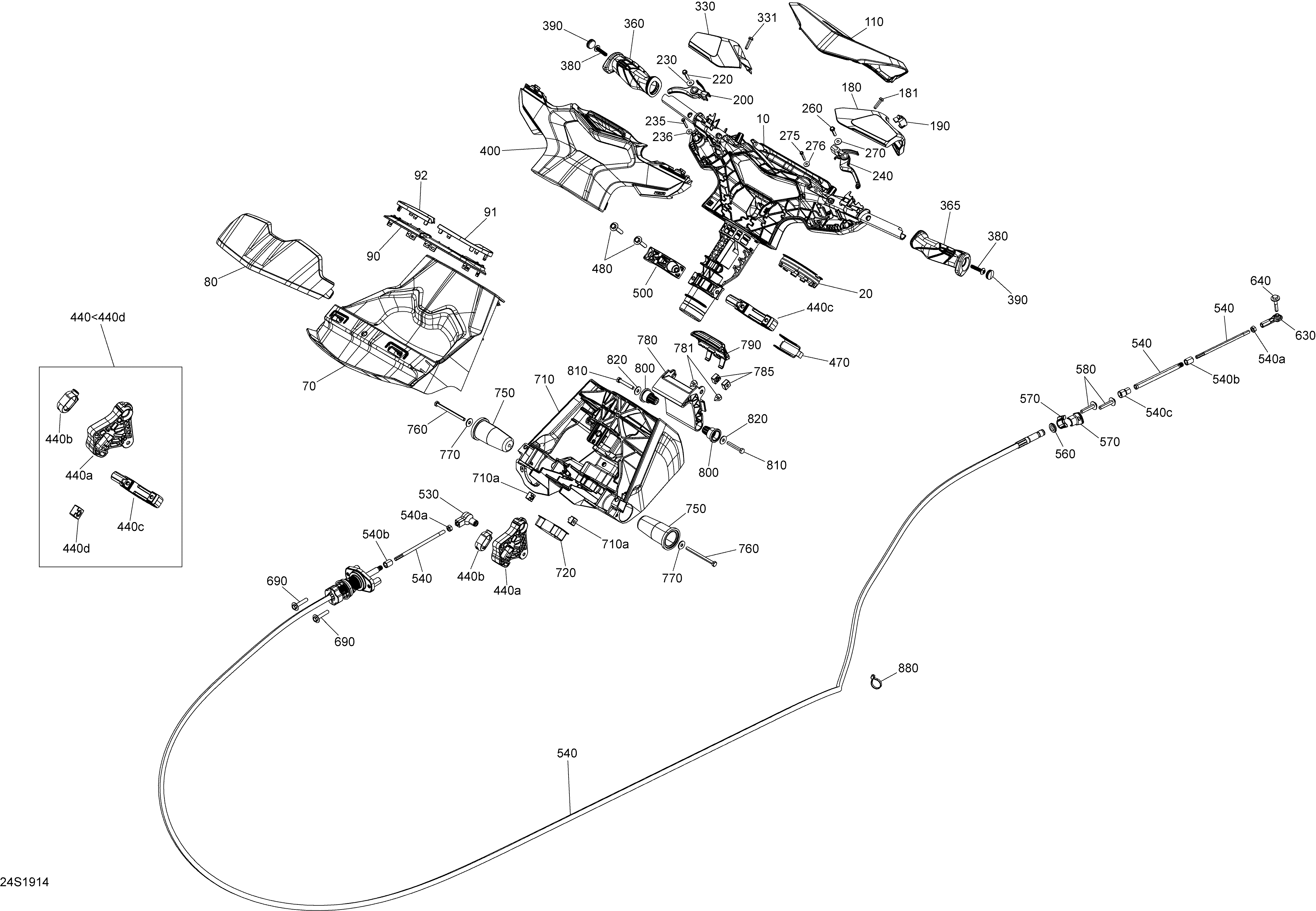

07- Steering для BRP 001 - RXT 230 - 2019
-
№АртикулНазвание
-
10277001979 Steering ColumnSteering Column
-
20277001874 Wear RingWear Ring
-
70277001980 Cluster SupportCluster Support
-
80277001981 Cluster CoverCluster Cover
-
90705011286 Bezel For Speed IndicatorBezel For Speed Indicator
-
91705012349 LH Trim, Deep Black B-160LH Trim, Deep Black B-160
-
92705012351 RH Trim, Deep Black B-160RH Trim, Deep Black B-160
-
110277001988 Steering Pad B-160Steering Pad B-160
-
180277001983 LH Housing CoverLH Housing Cover
-
181211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
190277002052 Push Button RedPush Button Red
-
200277001944 Throttle HandleThrottle Handle
-
220211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
230234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
235241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
236234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
240277001945 Reverse HandleReverse Handle
-
260211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
270234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
275241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
276234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
330277002067 RH Housing CoverRH Housing Cover
-
331211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
360277001946 Handle Grip RHHandle Grip RH
-
365277001958 Handle Grip LHHandle Grip LH
-
380250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
390277000203 Black CapBlack Cap
-
400277001985 Steering CoverSteering Cover
-
440295501183 Arm Steering Kit. Canada/USA, EuropeArm Steering Kit. Canada/USA, Europe
-
470277001654 SpacerSpacer
-
530277002011 End FittingEnd Fitting
-
540>540c277001989 Steering Cable. Includes 540 TO 540cSteering Cable. Includes 540 TO 540c
-
540a211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540b277001582 Small BootSmall Boot
-
540c277001583 Large BootLarge Boot
-
560293830063 Rubber WasherRubber Washer
-
570277001856 Ring HalvesRing Halves
-
580250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
630277000775 Ball JointBall Joint
-
640250000970 Hex Sems Screw M6X35Hex Sems Screw M6X35
-
690250000399 Hexagonal Cap Screw M6 X35Hexagonal Cap Screw M6 X35
-
710>710a277001993 Steering Support Assembly. Includes 710 TO 710aSteering Support Assembly. Includes 710 TO 710a
-
710a269501166 Nut Housing Ass'yNut Housing Ass'y
-
720277001741 Wear RingWear Ring
-
750277001605 Steering Support PivotSteering Support Pivot
-
760207168060 Hex Screw M6 X 80Hex Screw M6 X 80
-
770234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
780277001996 Adjustment HandleAdjustment Handle
-
781293830005 Rubber BumperRubber Bumper
-
785269501166 Nut Housing Ass'yNut Housing Ass'y
-
790277002010 LockLock
-
800277001652 PivotPivot
-
810207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
820234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
