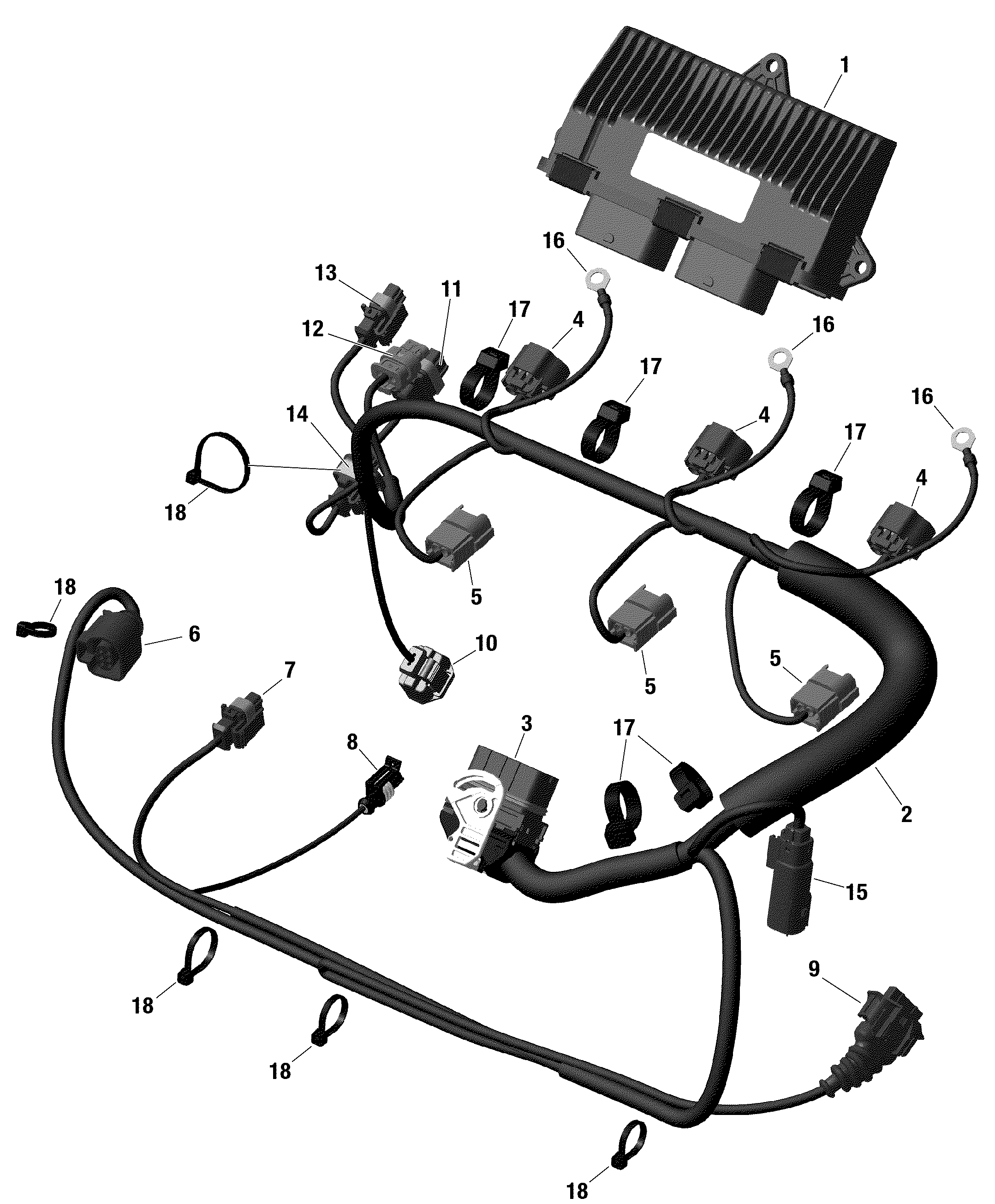

10- Engine Harness And Electronic Module для BRP 001 - RXT 230 - 2019
-
№АртикулНазвание
-
1420464258 Electronic BoxElectronic Box
-
1420464259 Electronic BoxElectronic Box
-
2>16420964082 Engine Wiring Harness Ass'yEngine Wiring Harness Ass'y
-
5515176129 Female HousingFemale Housing
-
6515177406 Female HousingFemale Housing
-
7278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
9515176410 Male ConnectorMale Connector
-
11278003197 HousingHousing
-
13278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15515178176 4 Circuits Male Housing4 Circuits Male Housing
-
16278000992 Open BarrelOpen Barrel
-
17420866716 Tie-RapTie-Rap
-
18420866714 Tie RapTie Rap
