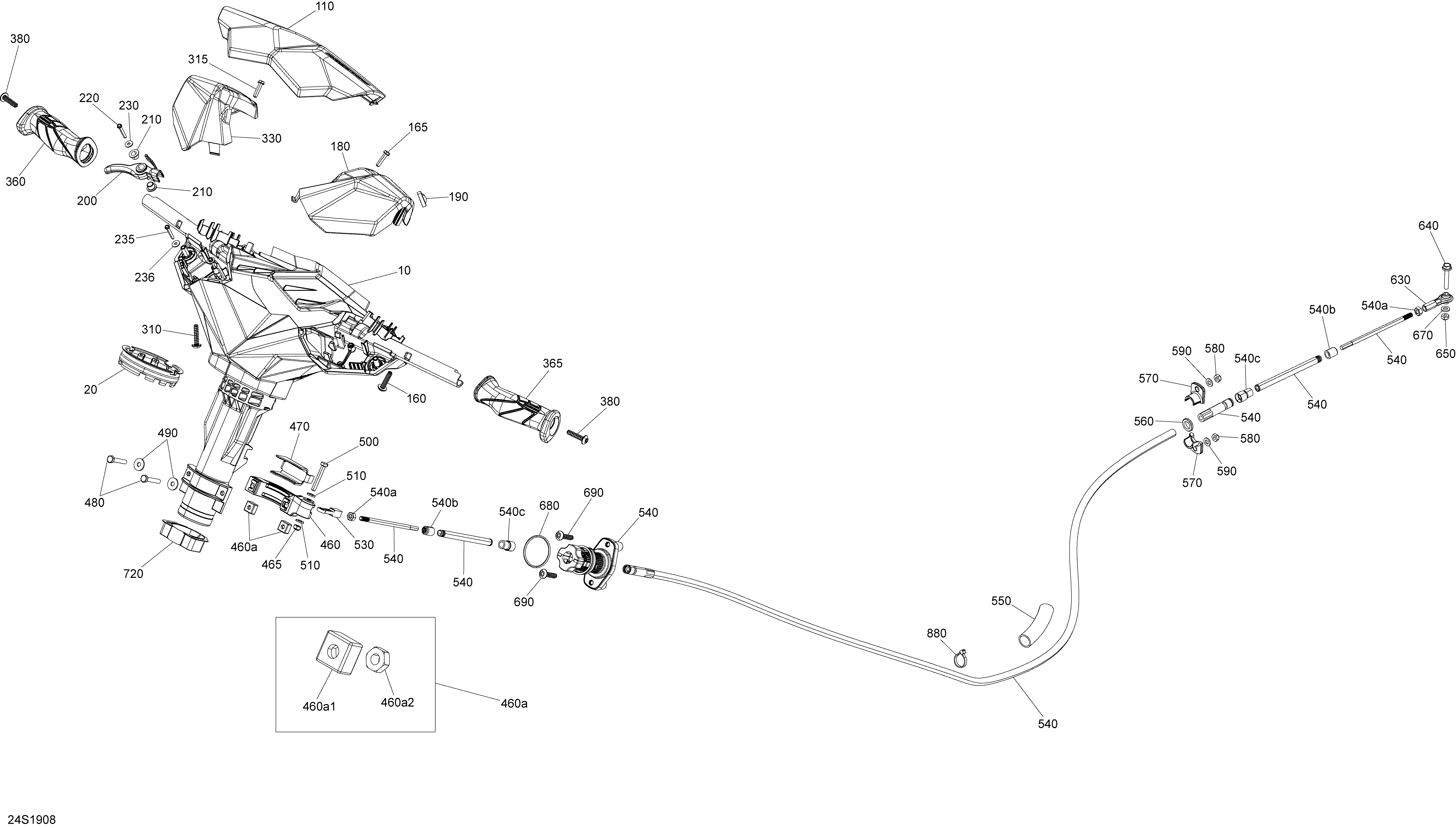

07- Steering для BRP 001 - Spark 900 ACE - 2019
-
№АртикулНазвание
-
10277001952 SteeringSteering
-
20277001874 Wear RingWear Ring
-
110277001786 Steering Pad, Bright WhiteSteering Pad, Bright White
-
160250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
165211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
180277001787 LH CoverLH Cover
-
190277001887 Red Knob SwitchRed Knob Switch
-
200277001944 Throttle HandleThrottle Handle
-
210293900091 BushingBushing
-
220241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
230234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
235241142560 Hex. Flanged Screw K40 X 25Hex. Flanged Screw K40 X 25
-
236234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
310250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
315211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
330277001788 RH CoverRH Cover
-
360277001946 Handle Grip RHHandle Grip RH
-
365277001958 Handle Grip LHHandle Grip LH
-
380250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
460>460a277002019 Support Ass'y. Includes 460 TO 460aSupport Ass'y. Includes 460 TO 460a
-
460a269501166 Nut Housing Ass'yNut Housing Ass'y
-
465232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
470277001654 SpacerSpacer
-
480207163560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
490234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
500207064060 Hex. Screw M6 X 40Hex. Screw M6 X 40
-
510234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
530277001180 Ball JointBall Joint
-
540>540c277002065 Steering Cable. Includes 540 TO 540cSteering Cable. Includes 540 TO 540c
-
540a211100056 Hex. Nut 1/4''-28Hex. Nut 1/4''-28
-
540b277001582 Small BootSmall Boot
-
540c277001583 Large BootLarge Boot
-
550276000446 Sheat Corrugated 19 MM IDSheat Corrugated 19 MM ID
-
560293830063 Rubber WasherRubber Washer
-
570277001856 Ring HalvesRing Halves
-
580232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
590234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
630277000775 Ball JointBall Joint
-
640207663560 Hex. Screw M6 X 35Hex. Screw M6 X 35
-
650232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
670234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680293300176 O-RingO-Ring
-
690250001007 Screw Torx M6.81 X 30Screw Torx M6.81 X 30
-
720277001741 Wear RingWear Ring
-
880414115200 Tie-Rap 180 mmTie-Rap 180 mm
