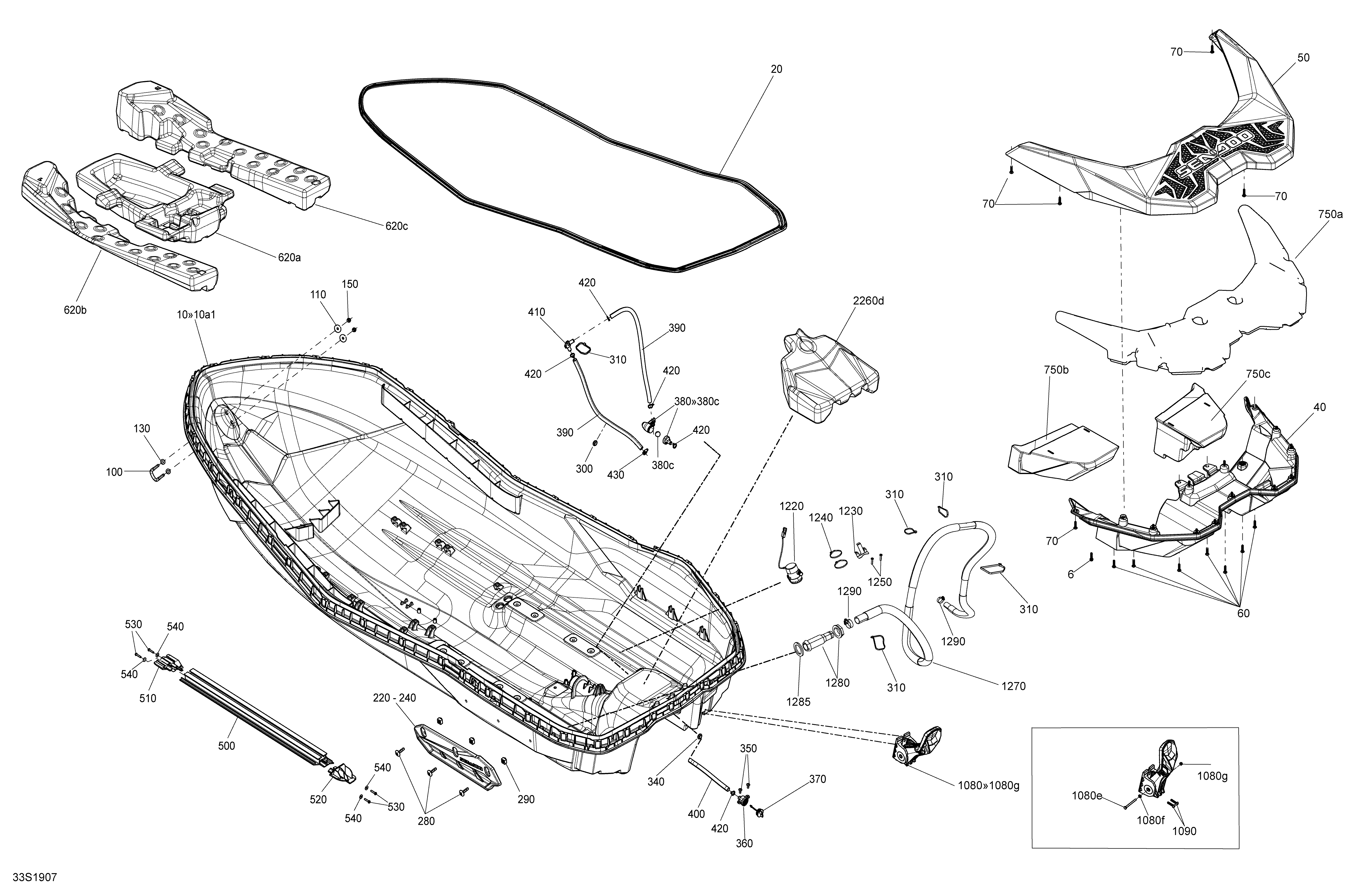

09- Hull для BRP 001 - Spark 900 ACE - 2019
-
№АртикулНазвание
-
10>10a295501188 Hull. Includes 10 TO 10aHull. Includes 10 TO 10a
-
10a295501139 Insert Hull Kit. Not ShownInsert Hull Kit. Not Shown
-
20293250338 Seal JointSeal Joint
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
130250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220292002009 Sponson RHSponson RH
-
240292002008 Sponson LHSponson LH
-
280250000697 Torx Screw M8 X 35Torx Screw M8 X 35
-
290269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
300293830063 Rubber WasherRubber Washer
-
310293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
340293830063 Rubber WasherRubber Washer
-
350250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
360292001552 Neck DrainNeck Drain
-
370292002024 Plug Drain Ass'yPlug Drain Ass'y
-
380>380a292001636 Bailer Pick-up Ass'y. Includes Ref 380aBailer Pick-up Ass'y. Includes Ref 380a
-
380a293830080 Floating BallFloating Ball
-
390293830198 HoseHose
-
400293830198 HoseHose
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293650171 Tridon Gear ClampTridon Gear Clamp
-
500292001549 Hull ReinforcementHull Reinforcement
-
510292001550 Front End Piece ReinforcementFront End Piece Reinforcement
-
520292001551 Rear End Piece ReinforcementRear End Piece Reinforcement
-
530250000680 Hex. Flange Screw K50 X 25Hex. Flange Screw K50 X 25
-
540234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
620a292001439 Front FloatFront Float
-
620b292001467 LH FloatLH Float
-
620c292001468 RH FloatRH Float
-
620d292001469 Rear FloatRear Float
