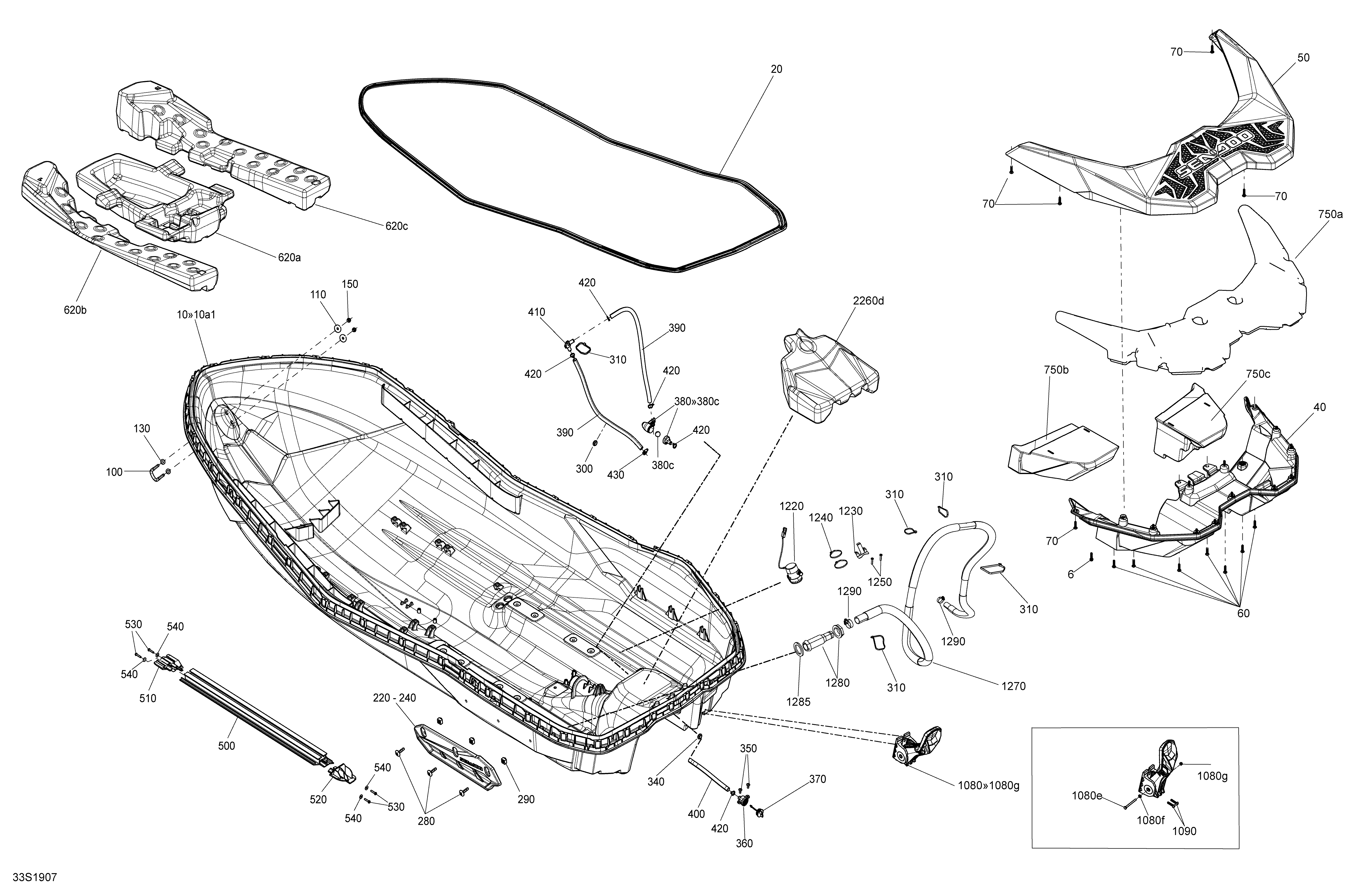

09- Hull для BRP 003 - Spark TRIXX - 2019
-
№АртикулНазвание
-
10>10a295501188 Hull. Includes 10 TO 10aHull. Includes 10 TO 10a
-
10a295501139 Insert Hull Kit. Not ShownInsert Hull Kit. Not Shown
-
20293250338 Seal JointSeal Joint
-
40292002010 Hull Extension Black. 3 UpHull Extension Black. 3 Up
-
50291004596 Deck. 3 UpDeck. 3 Up
-
60243163060 Flanged Hex. Screw M6.81 X 30. 3 UpFlanged Hex. Screw M6.81 X 30. 3 Up
-
70250001007 Screw Torx M6.81 X 30. 3 UpScrew Torx M6.81 X 30. 3 Up
-
100292000933 U-ClampU-Clamp
-
110293050001 Flat WasherFlat Washer
-
130250200175 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
150232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
220292002009 Sponson RHSponson RH
-
240292002008 Sponson LHSponson LH
-
280250000697 Torx Screw M8 X 35Torx Screw M8 X 35
-
290269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
300293830063 Rubber WasherRubber Washer
-
310293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
340293830063 Rubber WasherRubber Washer
-
350250000384 Torx Screw M6 X 14Torx Screw M6 X 14
-
360292001552 Neck DrainNeck Drain
-
370292002024 Plug Drain Ass'yPlug Drain Ass'y
-
380292001636 Bailer Pick-up Ass'yBailer Pick-up Ass'y
-
390293830198 HoseHose
-
400293830198 HoseHose
-
410293710152 Fitting Elbow 90°Fitting Elbow 90°
-
420293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
430293650171 Tridon Gear ClampTridon Gear Clamp
-
500292001549 Hull ReinforcementHull Reinforcement
-
510292001550 Front End Piece ReinforcementFront End Piece Reinforcement
-
520292001551 Rear End Piece ReinforcementRear End Piece Reinforcement
-
530250000680 Hex. Flange Screw K50 X 25Hex. Flange Screw K50 X 25
-
540234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
620a292001439 Front FloatFront Float
-
620b292001467 LH FloatLH Float
-
620c292001468 RH FloatRH Float
-
620d292001469 Rear FloatRear Float
-
750a292001504 Rear Deck Extension Float. 3 UpRear Deck Extension Float. 3 Up
-
750b292001505 LH Extension Float. 3 UpLH Extension Float. 3 Up
-
750c292001506 RH Extension Float. 3 UpRH Extension Float. 3 Up
-
1220278003483 Bilge PumpBilge Pump
-
1230269800473 Bilge Pump SupportBilge Pump Support
-
1240293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
1250211000023 Hex. Screw 10-14 X 7/8”Hex. Screw 10-14 X 7/8”
-
1270291002952 Hose BilgeflexHose Bilgeflex
-
1280293710162 FittingFitting
-
1285292001486 GasketGasket
-
1290293650172 Tridon Gear ClampTridon Gear Clamp
