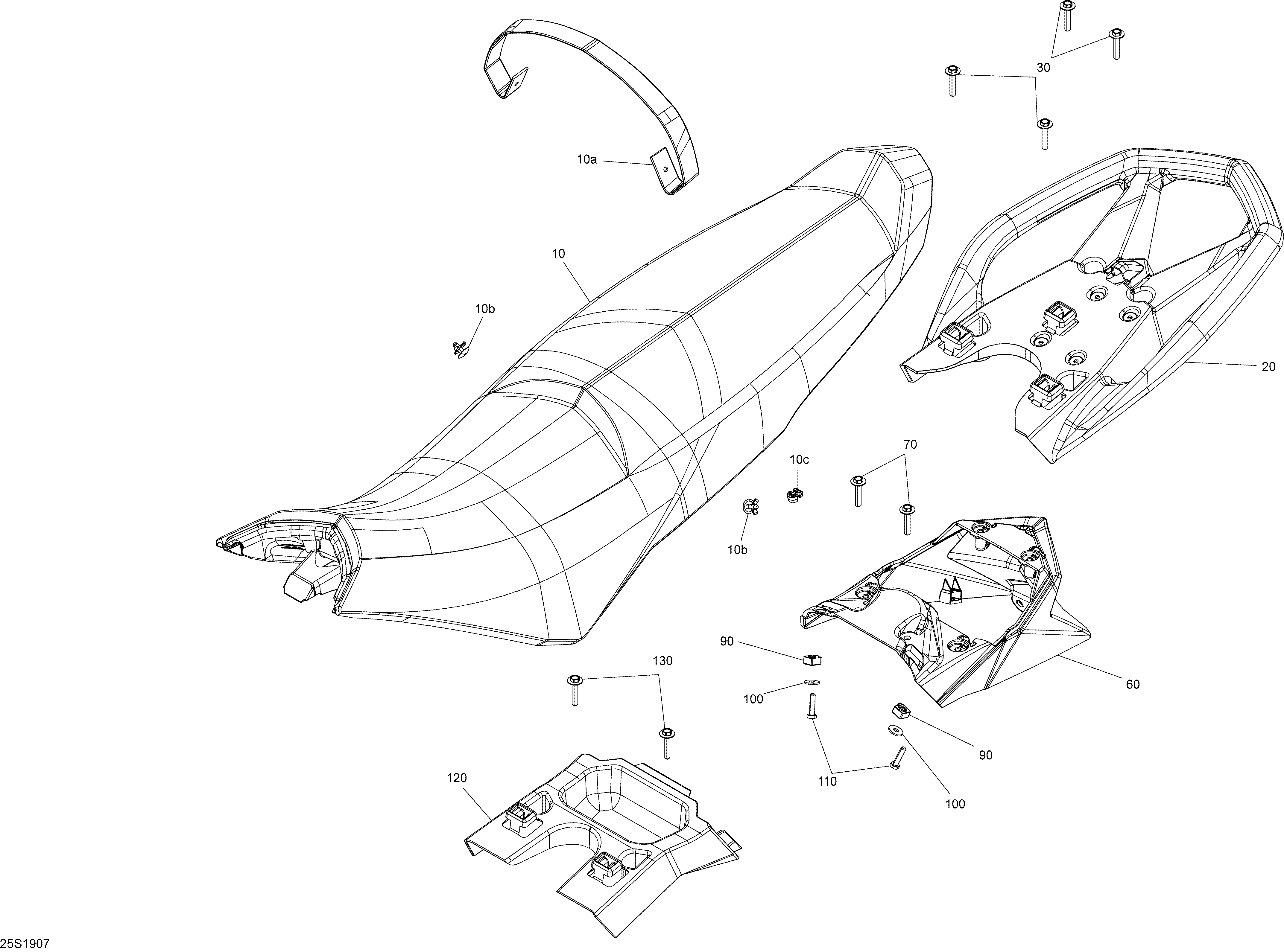

09- Seat для BRP 003 - Spark TRIXX - 2019
-
№АртикулНазвание
-
10>10c269003044 Seat Assembly. Package 2UP, Model Can-Am Red B-101. Includes 10 TO 10cSeat Assembly. Package 2UP, Model Can-Am Red B-101. Includes 10 TO 10c
-
10>10c269003136 Seat Ass'y. Package 3UP, Model Can-Am Red B-101. Includes 10 TO 10cSeat Ass'y. Package 3UP, Model Can-Am Red B-101. Includes 10 TO 10c
-
10>10c269003254 Seat Ass'y 2 Places, Manta Green B-357. Package 2UP, Model Manta Green B-357. Includes 10 TO 10cSeat Ass'y 2 Places, Manta Green B-357. Package 2UP, Model Manta Green B-357. Includes 10 TO 10c
-
10>10c269003255 Seat Ass'y 3 Places, Manta Green B-357. Package 3UP, Model Manta Green B-357. Includes 10 TO 10cSeat Ass'y 3 Places, Manta Green B-357. Package 3UP, Model Manta Green B-357. Includes 10 TO 10c
-
10a269002967 Can-Am Red Seat Strap. Package 2UP, Model Can-Am Red B-101Can-Am Red Seat Strap. Package 2UP, Model Can-Am Red B-101
-
10a269002973 Can-Am Red Seat Strap. Package 3UP, Model Can-Am Red B-101Can-Am Red Seat Strap. Package 3UP, Model Can-Am Red B-101
-
10a269003115 Strap-Seat. Package 2UP, Model Manta Green B-357Strap-Seat. Package 2UP, Model Manta Green B-357
-
10a269003139 Seat-Strap B-357. Package 3UP, Model Manta Green B-357Seat-Strap B-357. Package 3UP, Model Manta Green B-357
-
10b293150067 RivetRivet
-
10c293720100 Rubber StopperRubber Stopper
-
20291004527 Grab HandleGrab Handle
-
30250000689 Hex. Cap Screw M6.8Hex. Cap Screw M6.8
-
60291003556 Handle Support. Package 3UPHandle Support. Package 3UP
-
70250000689 Hex. Cap Screw M6.8. Package 3UPHex. Cap Screw M6.8. Package 3UP
-
90269500252 M6 Nut Housing Ass'y. Package 3UPM6 Nut Housing Ass'y. Package 3UP
-
100234062600 Flat Washer M6, Stainless. Package 3UPFlat Washer M6, Stainless. Package 3UP
-
110207162560 Hex. Screw M6 X 25. Package 3UPHex. Screw M6 X 25. Package 3UP
-
120291003789 Seat Support. Package 3UPSeat Support. Package 3UP
-
130250000689 Hex. Cap Screw M6.8. Package 3UPHex. Cap Screw M6.8. Package 3UP
