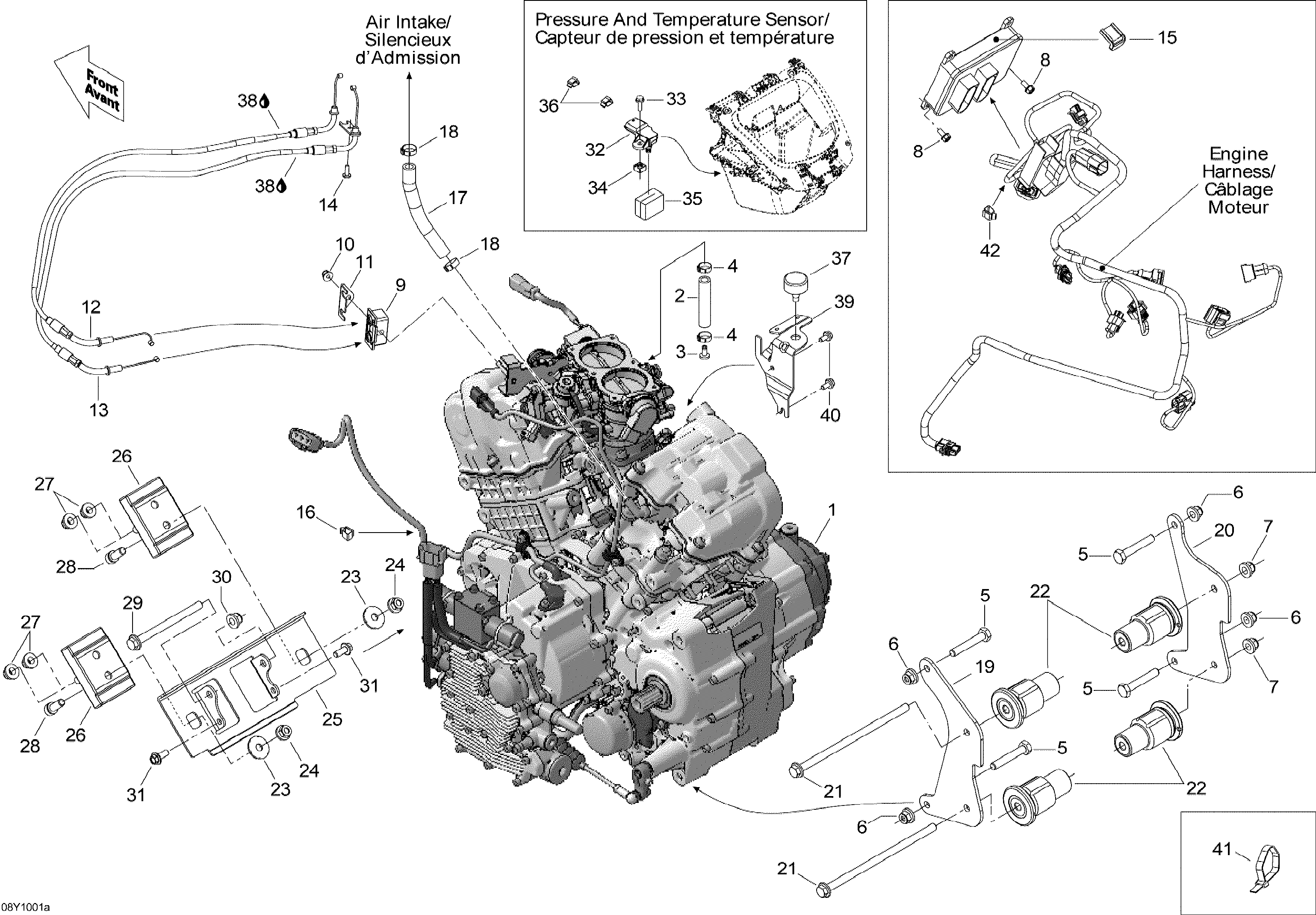

01- Engine SE5 для BRP Spyder RS Roadster SE5, Late Production 2010 - 2010
-
№АртикулНазвание
-
1707000853 Engine 991. Long Block 421000709Engine 991. Long Block 421000709
-
2513033565 HoseHose
-
3707000946 PlugPlug
-
4414415200 Universal Spring ClampUniversal Spring Clamp
-
5207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
6233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
7233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
8210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
9707000614 Indexing BlockIndexing Block
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11707000610 Fixation PlateFixation Plate
-
12707000809 Throttle CableThrottle Cable
-
13707000810 Throttle CableThrottle Cable
-
14250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
15278001166 Module ProtectorModule Protector
-
16414227300 ClipClip
-
17707000484 HoseHose
-
18293650186 Oetiker ClampOetiker Clamp
-
19707000510 Support LHSupport LH
-
20707000512 Support RHSupport RH
-
21250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
22707000516 Rubber MountRubber Mount
-
23512056700 Lock WasherLock Washer
-
24233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
25707000823 Front Engine SupportFront Engine Support
-
26707000441 Rubber MountRubber Mount
-
27233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
28205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
29230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
30233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
31207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
32707000564 Pressure And Temperature SensorPressure And Temperature Sensor
-
33207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34269500725 Nut Housing Ass'yNut Housing Ass'y
-
35707000586 FilterFilter
-
36414227300 ClipClip
-
37708000758 Rubber StopperRubber Stopper
-
38293600041 Cable Lubricant, 400 gCable Lubricant, 400 g
-
39707000756 Intake SupportIntake Support
-
40207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
41293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
41293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
42414227300 ClipClip
