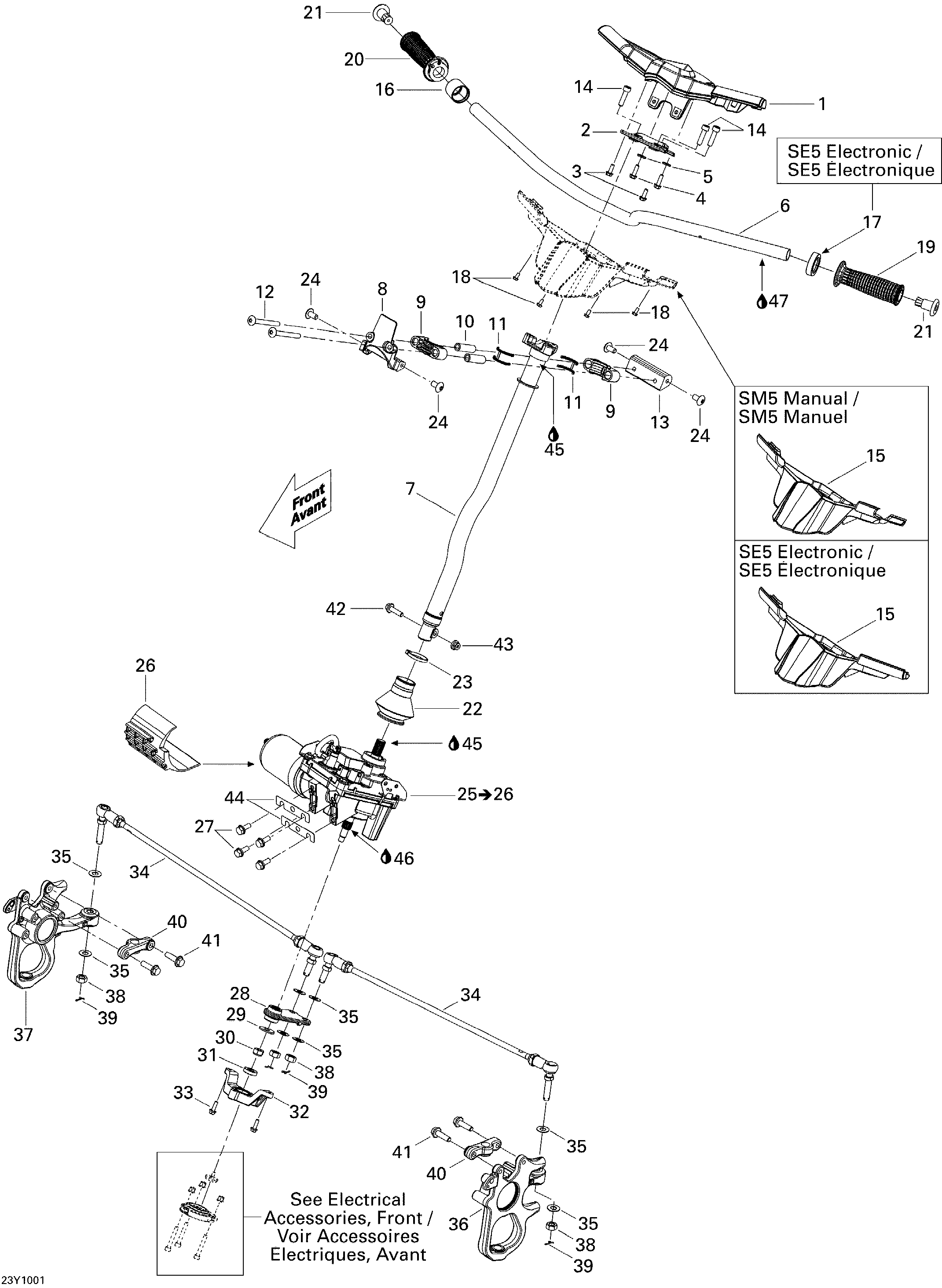

07- Steering SE5 для BRP Spyder RS Roadster SE5, Late Production 2010 - 2010
-
№АртикулНазвание
-
1709400661 Handle Bar CoverHandle Bar Cover
-
2709400481 Steering ClampSteering Clamp
-
3210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
5234081410 Flat Washer 8 mmFlat Washer 8 mm
-
6709400483 Handle BarHandle Bar
-
7709400794 Steering ColumnSteering Column
-
8709400791 Steering Column SupportSteering Column Support
-
9709400471 Half BushingHalf Bushing
-
10709400072 BushingBushing
-
11293300120 Half-SealHalf-Seal
-
12250000442 Torx Screw, M8 X 80Torx Screw, M8 X 80
-
13709400799 Rear Steering Column SupportRear Steering Column Support
-
14205583034 Socket Head Screw, Scotch GripSocket Head Screw, Scotch Grip
-
15709400614 Ignition Switch Cover. SE5 ElectronicIgnition Switch Cover. SE5 Electronic
-
16709400498 Handle RingHandle Ring
-
17709400615 Handle Ring. SE5 ElectronicHandle Ring. SE5 Electronic
-
18210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
19709400516 Handle GripHandle Grip
-
20709400517 Throttle HandleThrottle Handle
-
21709400189 End PieceEnd Piece
-
22709400454 BellowsBellows
-
23414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
24250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
25709400928 Power Steering Module. Includes 25 to 26Power Steering Module. Includes 25 to 26
-
24a219800191 DPS Hardware Kit. Not ShownDPS Hardware Kit. Not Shown
-
26709400551 ProtectorProtector
-
27207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
28709400469 ArmArm
-
29250200113 Flat Washer, 12 mmFlat Washer, 12 mm
-
30250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
31293200113 Seal RingSeal Ring
-
32709400455 Sensor SupportSensor Support
-
33207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
34709400557 Tie Rod Ass`yTie Rod Ass`y
-
35250200086 Flat WasherFlat Washer
-
36505071709 Knuckle LHKnuckle LH
-
37505071711 Knuckle RHKnuckle RH
-
38250100099 Nut M12Nut M12
-
39250400034 Cotter PinCotter Pin
-
40706200528 Upper SupportUpper Support
-
41207503534 Hex. Flange Screw, Scotch GripHex. Flange Screw, Scotch Grip
-
42207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
43233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
44709400572 ShimShim
-
45293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
46293800070 Loctite 767, Antiseize Lubricant, 8 ozLoctite 767, Antiseize Lubricant, 8 oz
-
47293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
