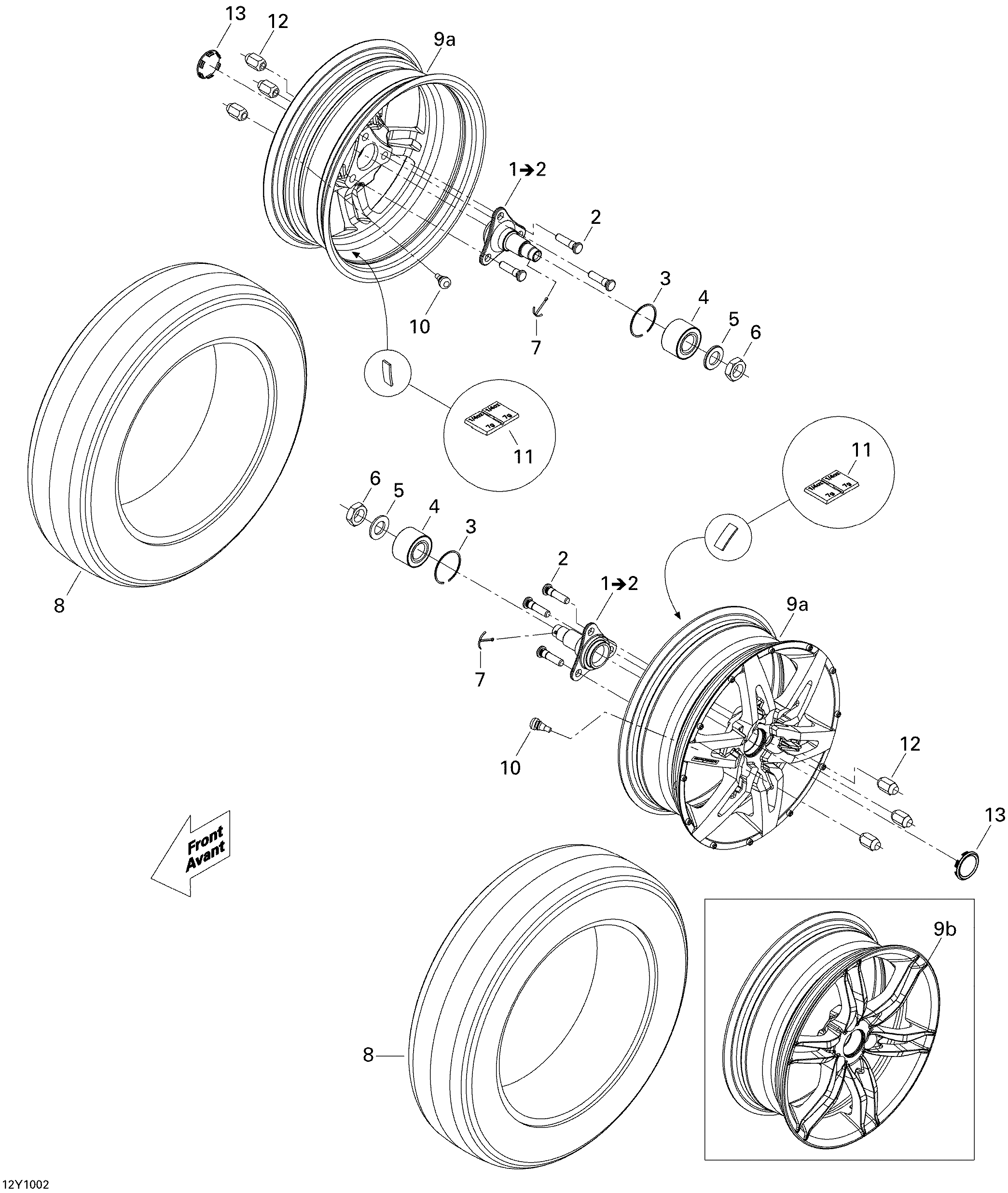

07- Drive System, Front для BRP Spyder RT, RTS Roadster SM5 - 2010
-
№АртикулНазвание
-
1706201159 Hub Ass'yHub Ass'y
-
2250300024 Wheel Stud M12 X 1.5Wheel Stud M12 X 1.5
-
3293370019 CirclipCirclip
-
4293350040 Cone BearingCone Bearing
-
5250200094 Flat WasherFlat Washer
-
6250100103 Hex. Jam Nut M24Hex. Jam Nut M24
-
7250400047 Cotter PinCotter Pin
-
8706201292 Front TireFront Tire
-
9a706200757 Front Rim. All Except RTSFront Rim. All Except RTS
-
9b706201121 Front Rim. RTSFront Rim. RTS
-
10705400193 Rim ValveRim Valve
-
11705501383 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
12250100057 Wheel NutWheel Nut
-
13705400388 Wheel CapWheel Cap
