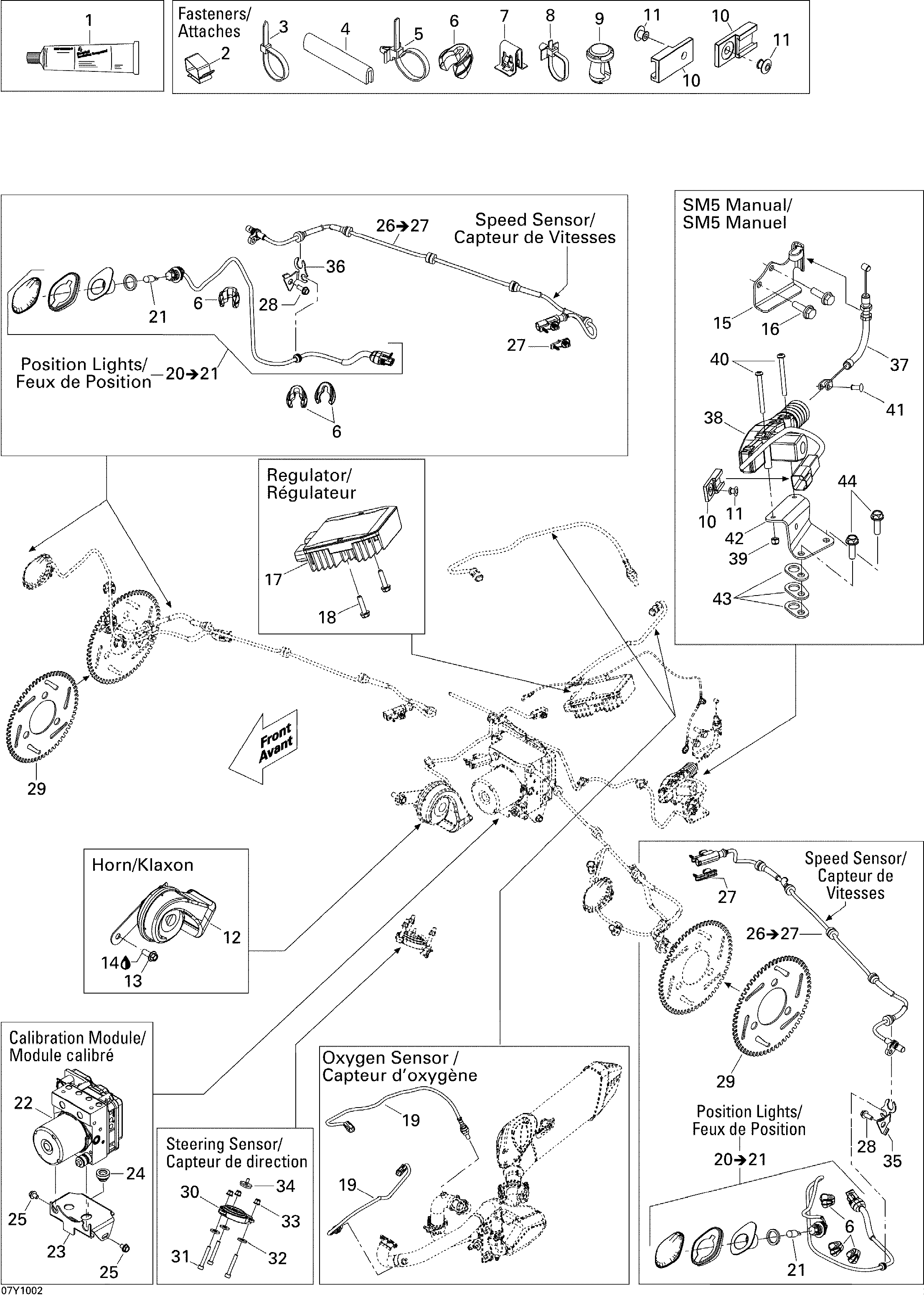

10- Electrical Accessories, Front SM5 для BRP Spyder RT, RTS Roadster SM5 - 2010
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2414227300 ClipClip
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
6710001452 Wire BracketWire Bracket
-
7517302785 ClipClip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12710001777 HornHorn
-
13207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
14293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
15420251565 Reverse Cable Support. SM5 ManualReverse Cable Support. SM5 Manual
-
16207662044 Hex. Flanged Screw M6 X 20. SM5 ManualHex. Flanged Screw M6 X 20. SM5 Manual
-
17710001191 Voltage RegulatorVoltage Regulator
-
18210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
19707600557 Oxygen SensorOxygen Sensor
-
20710001478 Position Light. Includes 20 to 21Position Light. Includes 20 to 21
-
21410922994 Bulb 5W.Bulb 5W.
-
22219800097 VSS Hydraulic UnitVSS Hydraulic Unit
-
23705600602 Module BracketModule Bracket
-
24710000938 StopperStopper
-
25210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
26706200495 Speed Sensor. Includes 26 to 27Speed Sensor. Includes 26 to 27
-
27219800059 Speed Sensor ClipSpeed Sensor Clip
-
28210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
29705600436 Tone WheelTone Wheel
-
30709400363 Steering Position SensorSteering Position Sensor
-
31205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
32234051410 Flat Washer M5Flat Washer M5
-
33233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
34709400362 Encoder MagnetEncoder Magnet
-
35710002019 LH Wire SupportLH Wire Support
-
36710002018 RH Wire SupportRH Wire Support
-
37707000636 Reverse Cable. SM5 ManualReverse Cable. SM5 Manual
-
38710001554 Actuator. SM5 ManualActuator. SM5 Manual
-
39232541414 Elastic Stop Nut M4. SM5 ManualElastic Stop Nut M4. SM5 Manual
-
40205444086 Socket Head Screw M4 X 40. SM5 ManualSocket Head Screw M4 X 40. SM5 Manual
-
41390401600 Pop Rivet 1/8''. SM5 ManualPop Rivet 1/8''. SM5 Manual
-
42710001599 Actuator Support. SM5 ManualActuator Support. SM5 Manual
-
43710002024 Shim. SM5 ManualShim. SM5 Manual
-
44210262080 Hex. Forming Screw M6 X 20. SM5 ManualHex. Forming Screw M6 X 20. SM5 Manual
