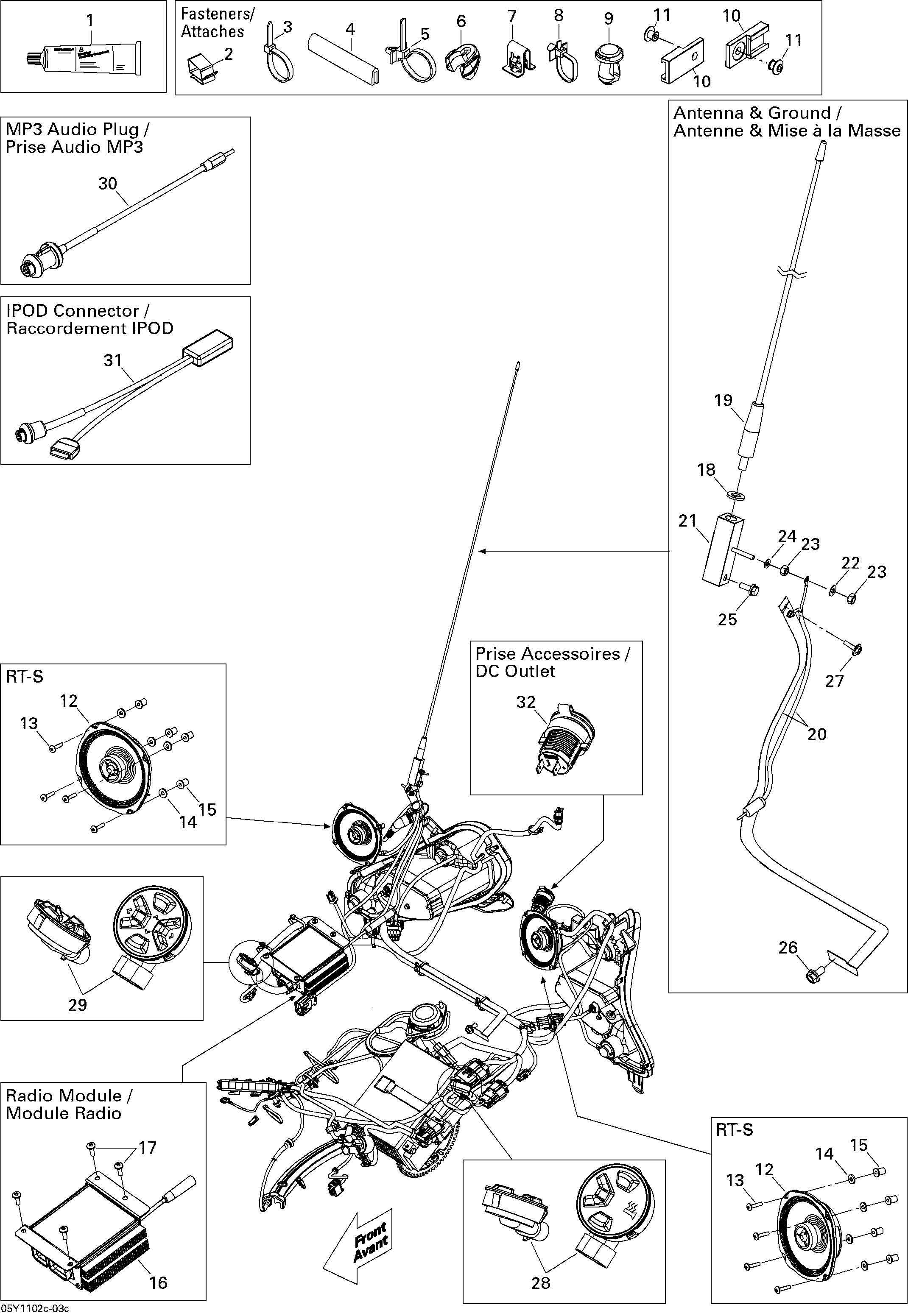

10- Electrical Accessories 3, SE5 для BRP Spyder RT, Roadster SE5 - 2011
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2414227300 Clip. RT-SClip. RT-S
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
3293750002 Tie-Rap 130 mm. RT (STD)Tie-Rap 130 mm. RT (STD)
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12710001404 Rear Speaker. RT-SRear Speaker. RT-S
-
13250000405 Torx Screw M4 X 20. RT-STorx Screw M4 X 20. RT-S
-
14517225900 Flat Washer. RT-SFlat Washer. RT-S
-
15705003635 Well Rubber Nut M4x.7. RT-SWell Rubber Nut M4x.7. RT-S
-
16710002271 Radio Module Ass'y. Except RT (STD)Radio Module Ass'y. Except RT (STD)
-
17250000146 Truss Head Torx Screw K50 X 16. Except RT (STD)Truss Head Torx Screw K50 X 16. Except RT (STD)
-
18234161601 Lock Washer Helical M6Lock Washer Helical M6
-
19710001402 Antenna. Except RT (STD)Antenna. Except RT (STD)
-
20710002014 Antenna Cable Ass'y. Except RT (STD)Antenna Cable Ass'y. Except RT (STD)
-
21710001532 Antenna Support. Except RT (STD)Antenna Support. Except RT (STD)
-
22234040200 Brass Flat Washer DIN.433 M4. Except RT (STD)Brass Flat Washer DIN.433 M4. Except RT (STD)
-
23232041200 Brass Hex Nut M4 DIN.934. Except RT (STD)Brass Hex Nut M4 DIN.934. Except RT (STD)
-
24234140602 Curved Stainless Lock Washer DIN.128A. Except RT (STD)Curved Stainless Lock Washer DIN.128A. Except RT (STD)
-
25207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Except RT (STD)Hex. Flanged Screw M6 X 16, Scotch Grip. Except RT (STD)
-
26207581046 Flanged Screw M8 x 10, Scotch Grip. Except RT (STD)Flanged Screw M8 x 10, Scotch Grip. Except RT (STD)
-
27250000113 Screw M4 X 16, Type K-40. Except RT (STD)Screw M4 X 16, Type K-40. Except RT (STD)
-
28710002349 LH Housing. Except RT (STD)LH Housing. Except RT (STD)
-
29710002464 RH Housing Passenger Switch. RT-SRH Housing Passenger Switch. RT-S
-
30710001406 MP3 Audio Plug. RT-SMP3 Audio Plug. RT-S
-
31710002016 IPod Connector. Except RT (STD)IPod Connector. Except RT (STD)
-
32710001248 Outlet DCOutlet DC
