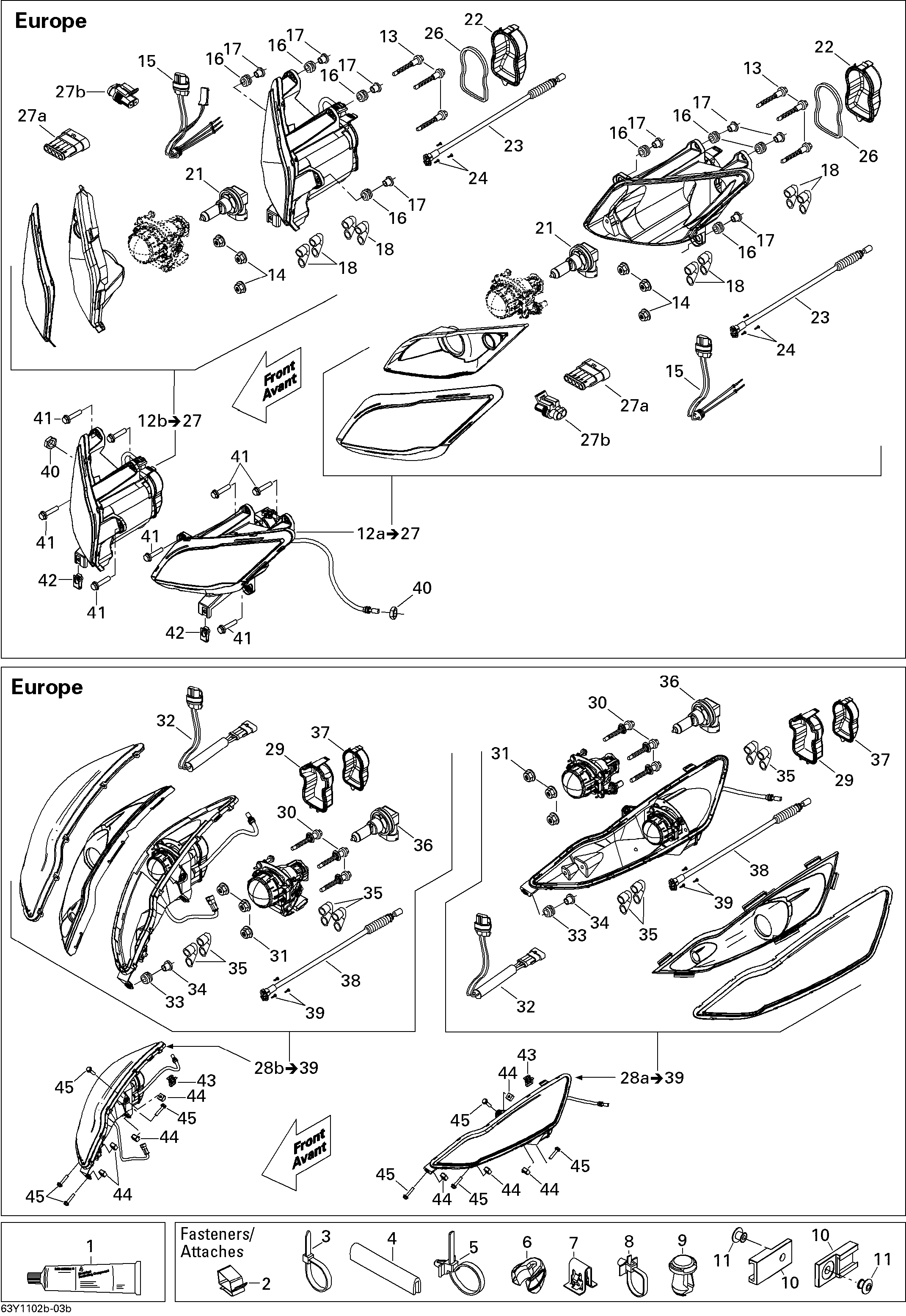

10- Lighting System , Europe, SE5 для BRP Spyder RT, Roadster SE5 - 2011
-
№АртикулНазвание
-
1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
2414227300 Clip. RT-SClip. RT-S
-
3414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3515175220 Tie RapTie Rap
-
3293750002 Tie-Rap 130 mm. RT (STD)Tie-Rap 130 mm. RT (STD)
-
4271001530 TrimTrim
-
5293750009 Tie-Rap 173 mm. SE5Tie-Rap 173 mm. SE5
-
6710001452 Wire BracketWire Bracket
-
8710002197 Unlocking ClipUnlocking Clip
-
9293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
10270000141 ClipClip
-
11390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
12a710001384 LH High Beam Ass'y. Includes 12a to 27LH High Beam Ass'y. Includes 12a to 27
-
12b710001386 RH High Beam Ass'y. Includes 12b to 27RH High Beam Ass'y. Includes 12b to 27
-
16219800100 AntivibrationAntivibration
-
17219800099 SpacerSpacer
-
18219800133 Rubber VentilationRubber Ventilation
-
21219800140 Halogen Bulb H9 65WHalogen Bulb H9 65W
-
22219800174 Cover With GasketCover With Gasket
-
23219800111 Adjustement CableAdjustement Cable
-
24219800110 Chromed Screw 4X13Chromed Screw 4X13
-
26219800139 GasketGasket
-
27a710000779 HousingHousing
-
27b710002160 Connector With PlugConnector With Plug
-
28a710001387 LH Low Beam Ass'y. Includes 28a to 39LH Low Beam Ass'y. Includes 28a to 39
-
28b710001388 RH Low Beam Ass'y. Includes 28b to 39RH Low Beam Ass'y. Includes 28b to 39
-
33219800100 AntivibrationAntivibration
-
34219800099 SpacerSpacer
-
35219800101 Rubber VentilationRubber Ventilation
-
36415129249 Halogen BulbHalogen Bulb
-
37219800174 Cover With GasketCover With Gasket
-
38219800105 Adjustement CableAdjustement Cable
-
39219800110 Chromed Screw 4X13Chromed Screw 4X13
-
40232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
41207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
42250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
43517302785 ClipClip
-
44269500725 Nut Housing Ass'yNut Housing Ass'y
-
45207663044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
