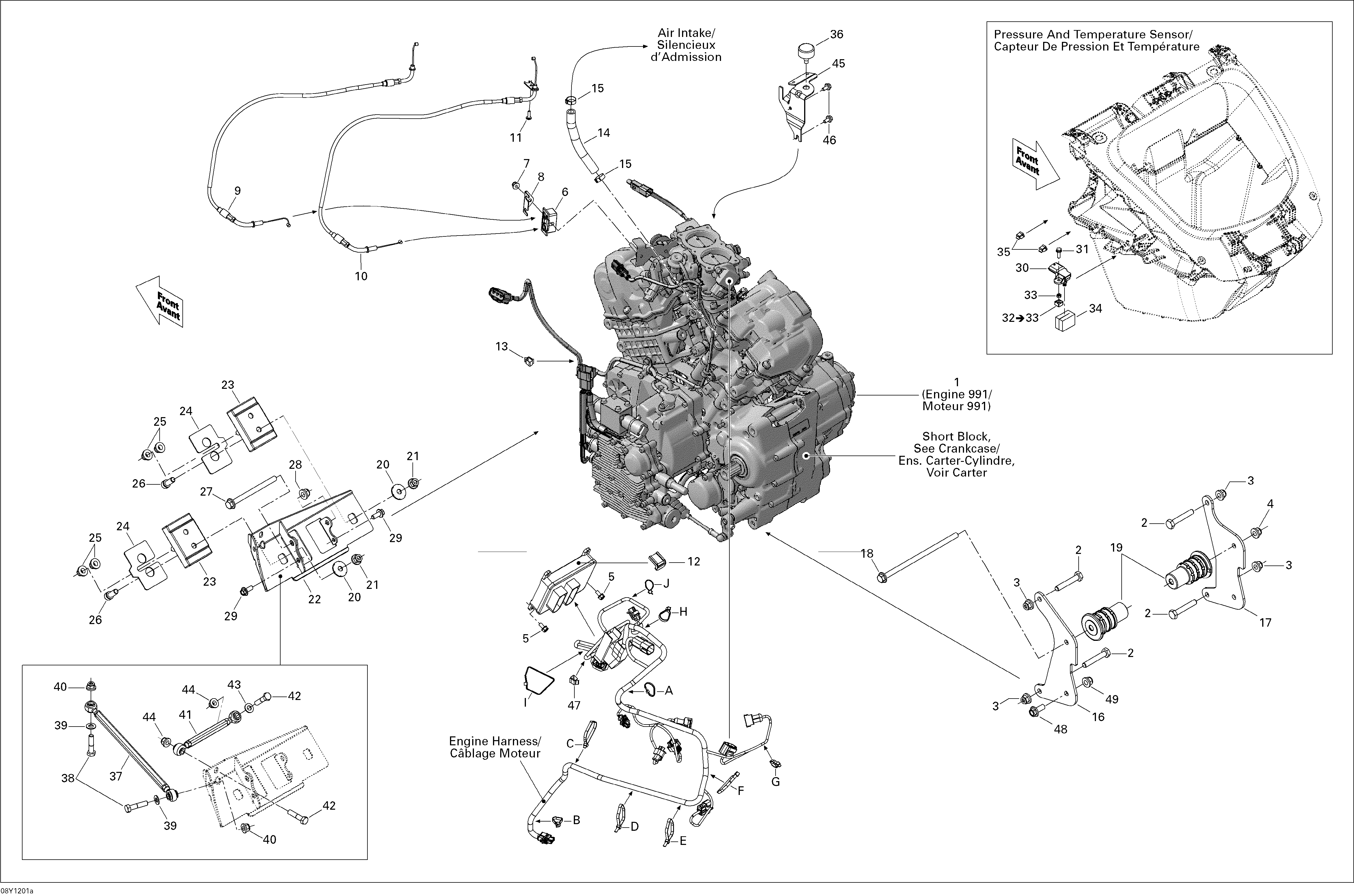

01- Engine SE5 для BRP Spyder RS SE5 - 2012
-
№АртикулНазвание
-
1707000962 Engine 991. Long Block 421000709Engine 991. Long Block 421000709
-
2207006044 Hex. Screw M10 X 60Hex. Screw M10 X 60
-
3233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
5210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
6707000614 Indexing BlockIndexing Block
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8707000610 Fixation PlateFixation Plate
-
9707001208 Throttle CableThrottle Cable
-
10707001209 Throttle CableThrottle Cable
-
11250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
12278001166 Module ProtectorModule Protector
-
13414227300 ClipClip
-
14707000484 HoseHose
-
15293650186 Oetiker ClampOetiker Clamp
-
16707000510 Support LHSupport LH
-
17707000512 Support RHSupport RH
-
18250000286 Hex. Flanged Screw M10 X 210Hex. Flanged Screw M10 X 210
-
19707000814 Rubber MountRubber Mount
-
20512056700 Lock WasherLock Washer
-
21233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
22707001072 Front Engine SuportFront Engine Suport
-
23707000815 Rubber MountRubber Mount
-
24707001074 ShimShim
-
25233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26205002544 Socket Head Screw M10 X 25Socket Head Screw M10 X 25
-
27230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
28233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
29207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
30707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
31207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32269500725 Nut Housing Ass'y. Includes 32 to 33Nut Housing Ass'y. Includes 32 to 33
-
33232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
34707000586 FilterFilter
-
35414227300 ClipClip
-
36708000758 Rubber StopperRubber Stopper
-
37707000816 Tie Rod Ass'yTie Rod Ass'y
-
38207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
39234001410 Flat Washer 10 mmFlat Washer 10 mm
-
40233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
41707001001 Tie Rod Ass'yTie Rod Ass'y
-
42207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
43234001410 Flat Washer 10 mmFlat Washer 10 mm
-
44233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
45707000756 Intake SupportIntake Support
-
46207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
47414227300 ClipClip
-
48207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
49233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
A293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
B293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
C293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
D293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
E293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
F414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
G414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
H414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
I293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
J414115200 Tie-Rap 180 mmTie-Rap 180 mm
