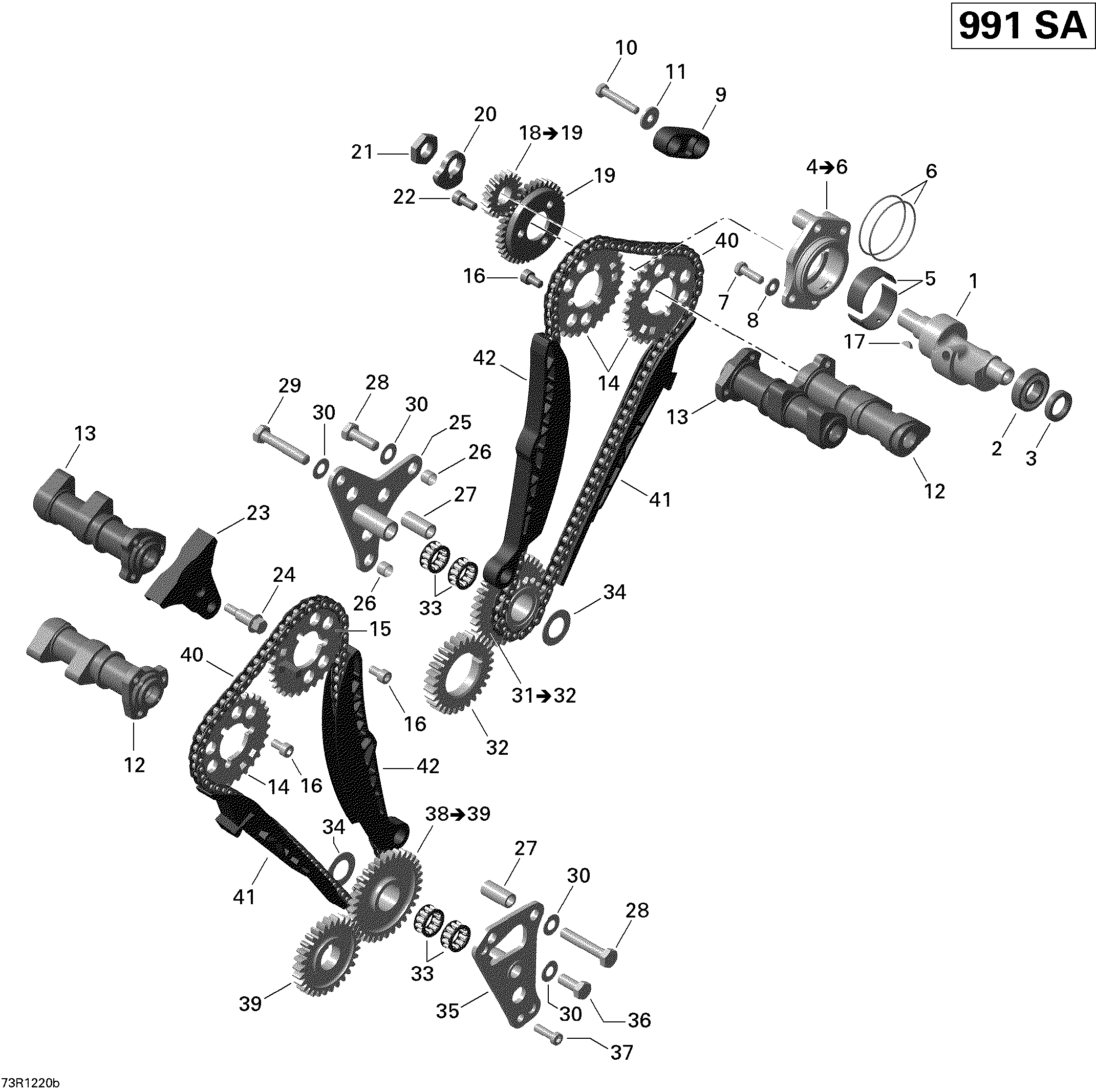

01- Valve Train для BRP Spyder RS SE5 - 2012
-
№АртикулНазвание
-
1420220444 Top BalancerTop Balancer
-
2420832360 Ball BearingBall Bearing
-
3420250130 Oil SealOil Seal
-
4420211683 Flange Bearing Ass'y. Includes 4 to 6Flange Bearing Ass'y. Includes 4 to 6
-
6420831160 O-RingO-Ring
-
7420940560 Hex. Screw M6 X 20Hex. Screw M6 X 20
-
8224061121 Flat WasherFlat Washer
-
9420236380 Chain GuideChain Guide
-
10207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
11420827305 Flat WasherFlat Washer
-
12420620208 Camshaft ExhaustCamshaft Exhaust
-
13420620204 Intake CamshaftIntake Camshaft
-
14420634732 Timing GearTiming Gear
-
15420634739 Timing GearTiming Gear
-
16420840371 Socket Head Screw M6 X 11.5Socket Head Screw M6 X 11.5
-
17420246055 Woodruff KeyWoodruff Key
-
18420295775 Gear Train Ass'y. Includes 18 to 19Gear Train Ass'y. Includes 18 to 19
-
20420219340 BalancingBalancing
-
21420942570 Hex. Nut M14 X 1Hex. Nut M14 X 1
-
22420840391 Allen Screw M6 X 14Allen Screw M6 X 14
-
23420236322 Chain GuideChain Guide
-
24420240960 Distance Screw M6 X 16Distance Screw M6 X 16
-
25420211756 Flange BearingFlange Bearing
-
26420929500 Dowel TubeDowel Tube
-
27420247980 SleeveSleeve
-
28207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
29207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
30420845030 Spring WasherSpring Washer
-
31420295760 Camshaft Drive Gear Ass'y. Includes 31 to 32Camshaft Drive Gear Ass'y. Includes 31 to 32
-
33420632161 Needle BearingNeedle Bearing
-
34420627190 Thrust WasherThrust Washer
-
35420211766 Flange BearingFlange Bearing
-
36207181860 Hex. Screw M8 X 18Hex. Screw M8 X 18
-
37420240400 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
38420295765 Distribution Drive Gear Ass'y. Includes 38 to 39Distribution Drive Gear Ass'y. Includes 38 to 39
-
40420297957 Camshaft ChainCamshaft Chain
-
41420236310 Chain GuideChain Guide
-
42420236300 Chain Tension GuideChain Tension Guide
