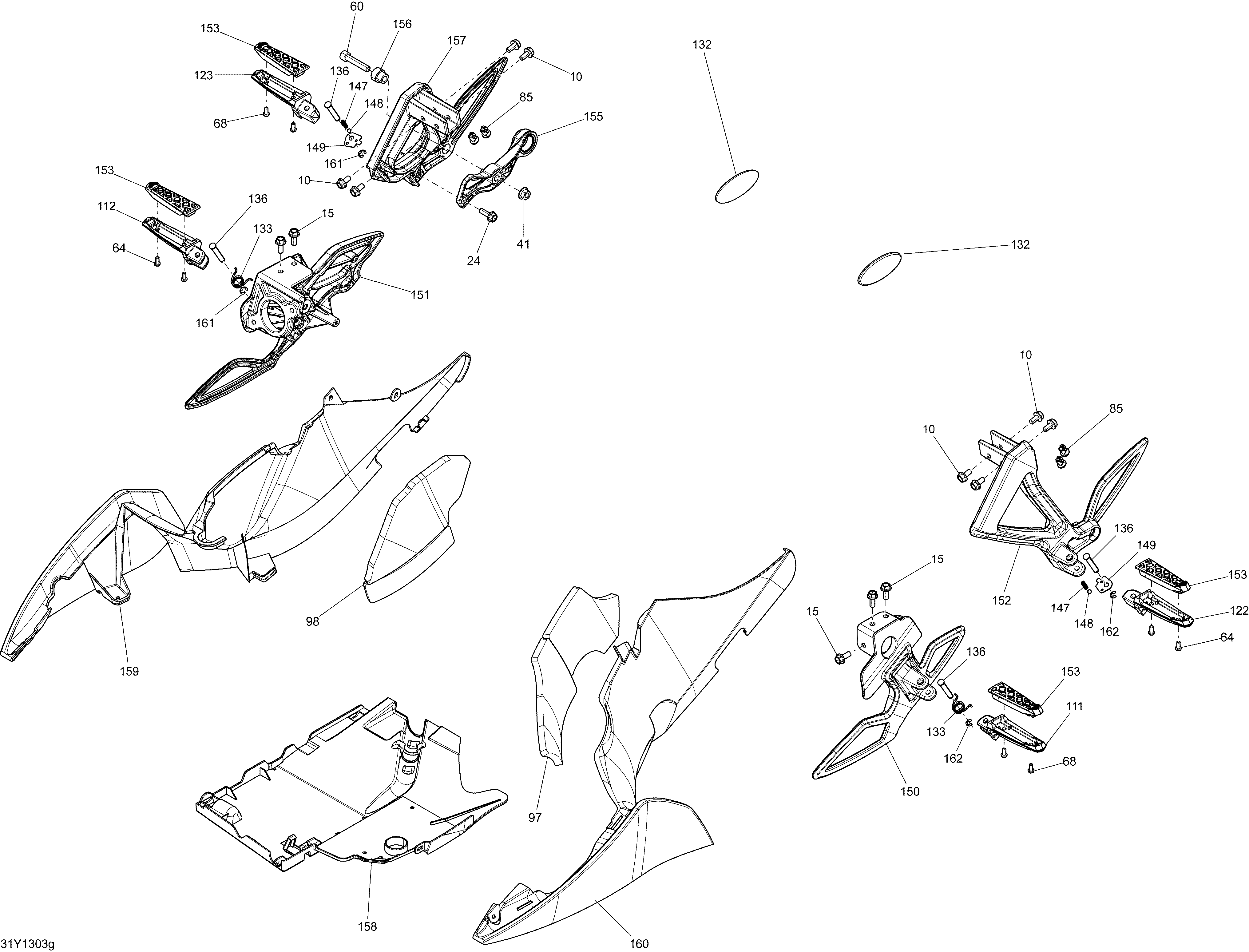

09- Body And Accessories G для BRP Spyder RS_RSS SE5 - 2013
-
№АртикулНазвание
-
10207581644 Hex. Flanged Screw M8 X 16, Scotch Grip. RS, RS-SHex. Flanged Screw M8 X 16, Scotch Grip. RS, RS-S
-
15207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. RS, RS-SHex. Flanged Screw M8 X 20, Scotch Grip. RS, RS-S
-
24207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. RS STD, RS SHex. Flanged Screw M8 X 20, Scotch Grip. RS STD, RS S
-
41233101600 Hex. Flanged Nut M10. RS, RS-SHex. Flanged Nut M10. RS, RS-S
-
60244005060 Allen Screw S.GRIP M10 X 50. RS, RS-SAllen Screw S.GRIP M10 X 50. RS, RS-S
-
64250000099 Allen Plastite Screw #12. RS-SAllen Plastite Screw #12. RS-S
-
64250000099 Allen Plastite Screw #12. RSAllen Plastite Screw #12. RS
-
68250000099 Allen Plastite Screw #12. RSAllen Plastite Screw #12. RS
-
68250000099 Allen Plastite Screw #12. RS-SAllen Plastite Screw #12. RS-S
-
85293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
97518324753 LH Rocker Panel Foam. RS, RS-SLH Rocker Panel Foam. RS, RS-S
-
98518327520 RH Rocker Panel Foam. RS-SRH Rocker Panel Foam. RS-S
-
98518327520 RH Rocker Panel Foam. RSRH Rocker Panel Foam. RS
-
111705004180 LH Front Footrest. RSLH Front Footrest. RS
-
112705004671 LH Front Footrest. RS-SLH Front Footrest. RS-S
-
122705004186 LH Rear Footrest. RSLH Rear Footrest. RS
-
123705004680 LH Rear Footrest. RS-SLH Rear Footrest. RS-S
-
132705001572 Red Rear Lateral Reflector. North AmericaRed Rear Lateral Reflector. North America
-
132705001573 Yellow Rear Lateral Reflector. EuropeYellow Rear Lateral Reflector. Europe
-
132705001573 Yellow Rear Lateral Reflector. RS AustralieYellow Rear Lateral Reflector. RS Australie
-
132705001573 Yellow Rear Lateral Reflector. RS BrezilYellow Rear Lateral Reflector. RS Brezil
-
133705001701 Spring. RSSpring. RS
-
133705001701 Spring. RS-SSpring. RS-S
-
136705001702 Retainer Pin. RSRetainer Pin. RS
-
136705001702 Retainer Pin. RS-SRetainer Pin. RS-S
-
136705001702 Retainer Pin. RSRetainer Pin. RS
-
136705001702 Retainer Pin. RS-SRetainer Pin. RS-S
-
147705001704 Spring. RSSpring. RS
-
147705001704 Spring. RS-SSpring. RS-S
-
148705001705 Ball. RSBall. RS
-
148705001705 Ball. RS-SBall. RS-S
-
149705001706 Indexation Plate. RSIndexation Plate. RS
-
149705001706 Indexation Plate. RS-SIndexation Plate. RS-S
-
150705004179 Silver LH Front Foot Support. RS-SSilver LH Front Foot Support. RS-S
-
151705004673 Black Carbon LH Front Foot Support. RS-SBlack Carbon LH Front Foot Support. RS-S
-
152705004185 Silver LH Rear Foot Support. RSSilver LH Rear Foot Support. RS
-
152705004679 RH Rear Foot Support. RS-SRH Rear Foot Support. RS-S
-
153705002359 Rubber Pad. RSRubber Pad. RS
-
153705002359 Rubber Pad. RS-SRubber Pad. RS-S
-
153705002359 Rubber Pad. RSRubber Pad. RS
-
153705002359 Rubber Pad. RS-SRubber Pad. RS-S
-
155705006852 Muffler Support, Grey. RSMuffler Support, Grey. RS
-
155705006853 Black Muffler Support. RS-SBlack Muffler Support. RS-S
-
156705003765 Bushing. RS, RS-SBushing. RS, RS-S
-
157705004188 Silver RH Rear Foot Support. RSSilver RH Rear Foot Support. RS
-
157705004678 Black Carbon LH Rear Foot Support. RS-SBlack Carbon LH Rear Foot Support. RS-S
-
158705005749 LH Deflector Pannel. RS, RS-SLH Deflector Pannel. RS, RS-S
-
159705006689 RH Rocker Panel. RS-SRH Rocker Panel. RS-S
-
159705006689 RH Rocker Panel. RSRH Rocker Panel. RS
-
160705006985 LH Rocker Panel. RS, RS-SLH Rocker Panel. RS, RS-S
-
161705601030 Circlip. RS SCirclip. RS S
-
162705601030 Circlip. RS STDCirclip. RS STD
