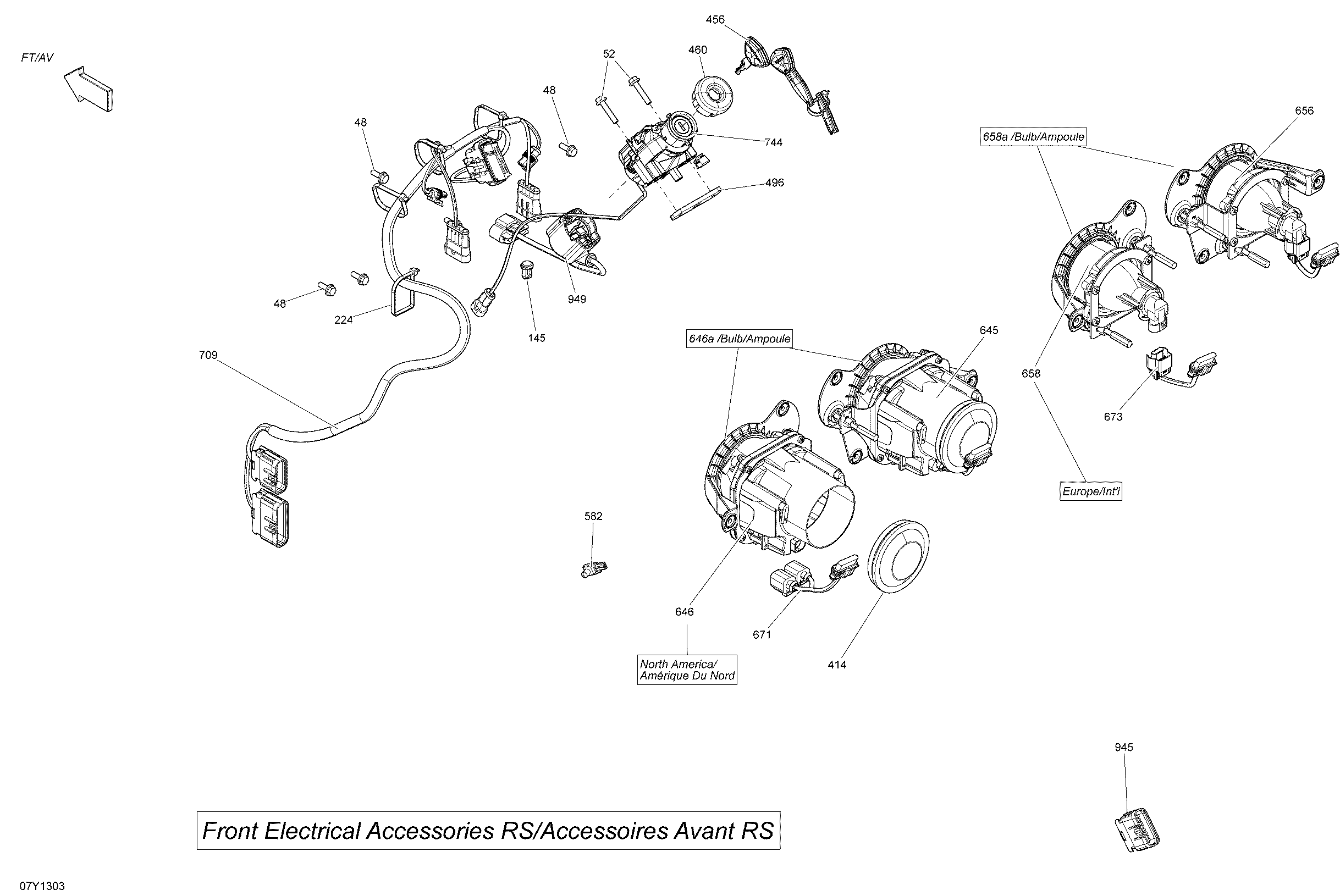

10- Electrical Accessories, Front Main Switch для BRP Spyder RS_RSS SE5 - 2013
-
№АртикулНазвание
-
48207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
52207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
145293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
224414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
414219400070 CapCap
-
456710001211 KeyKey
-
460710001194 Switch CoverSwitch Cover
-
496710001365 Switch SupportSwitch Support
-
582710002006 HolderHolder
-
645710002411 RH Bi-Halogen Beam Ass'y. RS, RS-SRH Bi-Halogen Beam Ass'y. RS, RS-S
-
646710002412 LH Bi-Halogen Beam Ass'yLH Bi-Halogen Beam Ass'y
-
656710002499 RH High Beam Ass'y. RS Europe/Int'lRH High Beam Ass'y. RS Europe/Int'l
-
658710002500 LH High Beam Ass'y. RS Europe/Int'lLH High Beam Ass'y. RS Europe/Int'l
-
671710002618 Headlight Adapter. RS, RS-SHeadlight Adapter. RS, RS-S
-
673710002621 Headlight Adapter. RS-S Europe/Int'lHeadlight Adapter. RS-S Europe/Int'l
-
673710002622 Headlight Adapter. RS Europe/Int'lHeadlight Adapter. RS Europe/Int'l
-
709710002832 Console Harness. RS, RS-SConsole Harness. RS, RS-S
-
744219800070 Ignition Switch & DESS Module KitIgnition Switch & DESS Module Kit
-
945710003649 Plug ConnectorPlug Connector
-
949710003334 Kic Pentalock HarnessKic Pentalock Harness
-
646a219400069 Halogen BulbHalogen Bulb
-
658a415129249 Halogen BulbHalogen Bulb
