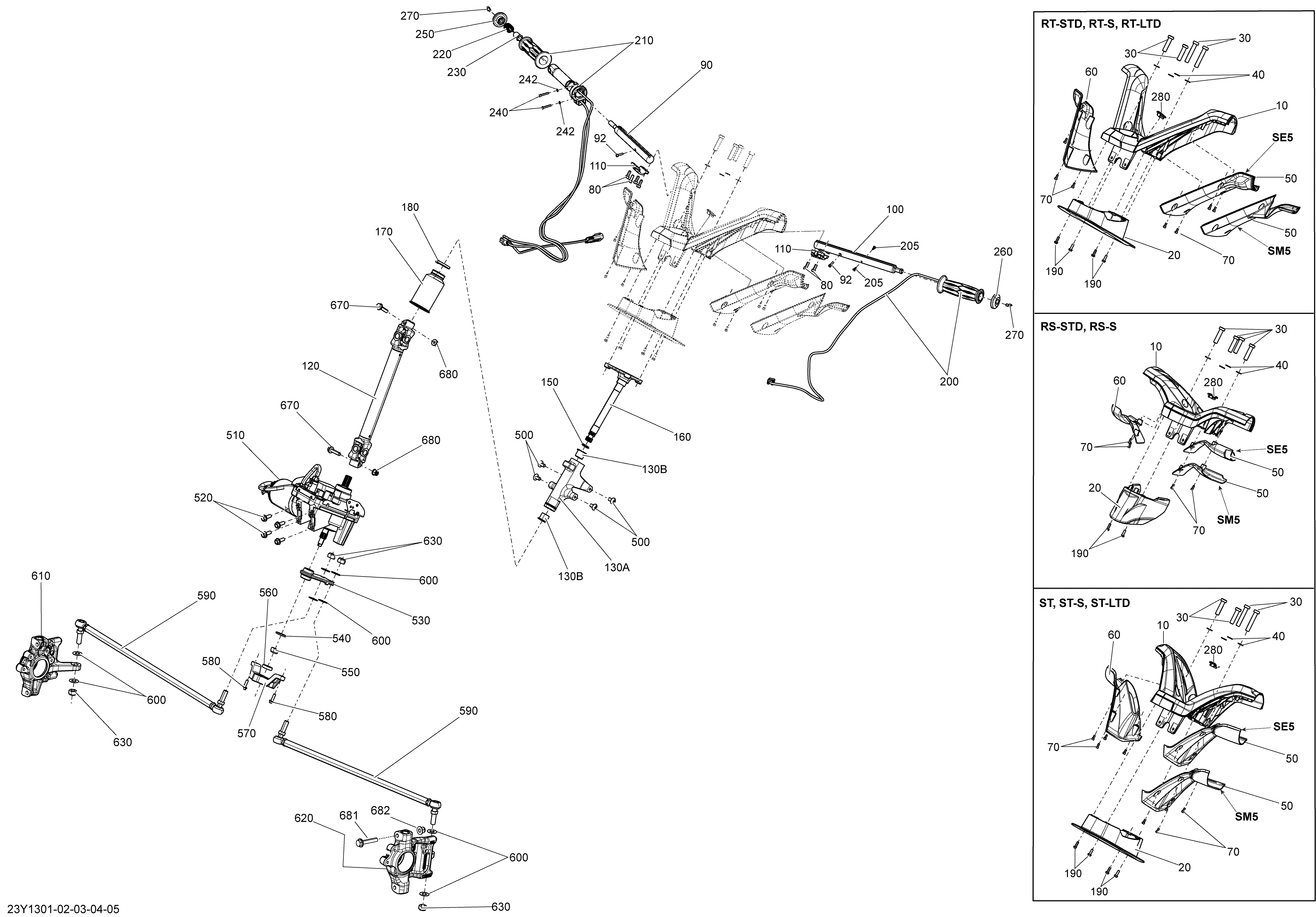

07- Steering SM5 для BRP Spyder RT_RTS SM5 - 2013
-
№АртикулНазвание
-
10709400693 Handlebar, Crystal Silver. RT-STDHandlebar, Crystal Silver. RT-STD
-
10709401194 Handlebar, Carbon Black. RT-SHandlebar, Carbon Black. RT-S
-
20709400579 Handlebar Central CoverHandlebar Central Cover
-
30250000456 Thin Socket Screw, Scotch Grip, M10 X 40Thin Socket Screw, Scotch Grip, M10 X 40
-
40250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
50709400741 LH Steering Cover. SM5LH Steering Cover. SM5
-
60709400578 RH Steering CoverRH Steering Cover
-
70205041094 Socket Screw, M4 X 10Socket Screw, M4 X 10
-
80205561644 Socket Screw M6 X 16, Scotch GripSocket Screw M6 X 16, Scotch Grip
-
90709401150 RH HandlebarsRH Handlebars
-
92250000494 Socket Screw, M4 X 16 Scotch GripSocket Screw, M4 X 16 Scotch Grip
-
100709401152 LH HandlebarsLH Handlebars
-
110709400631 Handlebar ClampHandlebar Clamp
-
120709400832 Lower Steering ColumnLower Steering Column
-
130a709401214 Steering Column Support. Includes 130A to 130BSteering Column Support. Includes 130A to 130B
-
150709000089 O-RingO-Ring
-
160709400774 Upper Steering ColumnUpper Steering Column
-
170709400790 BellowsBellows
-
180414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
190210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
200709400625 Heating Handle GripHeating Handle Grip
-
205250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
210709400929 Throttle Heating GripThrottle Heating Grip
-
220709400773 SpringSpring
-
230709400782 BushingBushing
-
240205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
242234040600 Flat Washer 4 mmFlat Washer 4 mm
-
250709400765 RH Handlebar End PieceRH Handlebar End Piece
-
260709400793 LH Handlebar End PieceLH Handlebar End Piece
-
270205061094 Socket Screw, M6 X 10Socket Screw, M6 X 10
-
280709400680 Cap, Crystal Silver. RT-STDCap, Crystal Silver. RT-STD
-
280709400923 Cap, Deep Black. RT-SCap, Deep Black. RT-S
-
500250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
510709401061 Power Steering ModulePower Steering Module
-
520207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
530709400922 Steering Pitman ArmSteering Pitman Arm
-
540250200113 Flat Washer, 12 mmFlat Washer, 12 mm
-
550250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
560293200113 Seal RingSeal Ring
-
570709400455 Sensor SupportSensor Support
-
580207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
590709400833 Tie Rod Ass'yTie Rod Ass'y
-
600250200086 Flat WasherFlat Washer
-
610709401217 RH Knuckle Ass'yRH Knuckle Ass'y
-
620709401216 LH Knuckle Ass'yLH Knuckle Ass'y
-
630250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
670207583587 Flanged Hex. Screw M8 X 35, Scotch GripFlanged Hex. Screw M8 X 35, Scotch Grip
-
680233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
681207605534 Hex. Flanged ScrewHex. Flanged Screw
-
682233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
