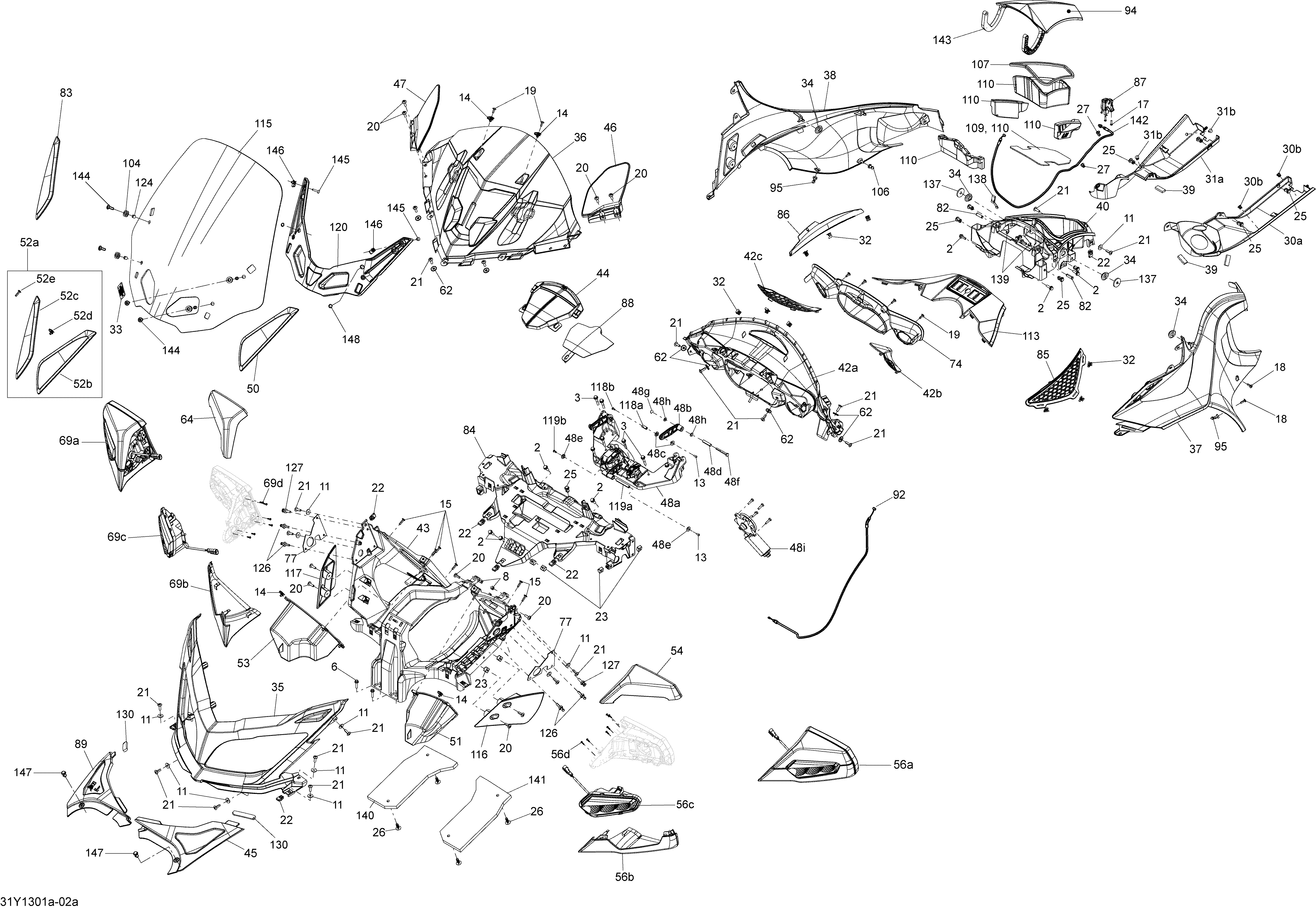

09- Body And Accessories Windshield для BRP Spyder RT_RTS SM5 - 2013
-
№АртикулНазвание
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
3207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8232862412 Square Nut M6Square Nut M6
-
8232862412 Square Nut M6Square Nut M6
-
11234062670 Flat WasherFlat Washer
-
11234062670 Flat WasherFlat Washer
-
13250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
13250000565 Hexalob Screw M4 X 10Hexalob Screw M4 X 10
-
14250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
14250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
15250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
15250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
17250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
17250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
18250000459 Torx Screw, K50X16Torx Screw, K50X16
-
18250000459 Torx Screw, K50X16Torx Screw, K50X16
-
19250000487 Torx Screw, Nylon Patch, M5 X 14Torx Screw, Nylon Patch, M5 X 14
-
19250000487 Torx Screw, Nylon Patch, M5 X 14Torx Screw, Nylon Patch, M5 X 14
-
20250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
22250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
22250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
23269501166 Nut Housing Ass'yNut Housing Ass'y
-
23269501166 Nut Housing Ass'yNut Housing Ass'y
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
25293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
26293730006 Black DartBlack Dart
-
26293730006 Black DartBlack Dart
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
27293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
30a705004631 LH Tank Cover Ass'y. Includes 30a to 30bLH Tank Cover Ass'y. Includes 30a to 30b
-
30a705004631 LH Tank Cover Ass'y. Includes 30a to 30bLH Tank Cover Ass'y. Includes 30a to 30b
-
30b293750044 Tie Rap MountTie Rap Mount
-
30b293750044 Tie Rap MountTie Rap Mount
-
31a705005950 RH Tank Cover Ass'y. Includes 31a to 31bRH Tank Cover Ass'y. Includes 31a to 31b
-
31a705005950 RH Tank Cover Ass'y. Includes 31a to 31bRH Tank Cover Ass'y. Includes 31a to 31b
-
31b293750044 Tie Rap MountTie Rap Mount
-
31b293750044 Tie Rap MountTie Rap Mount
-
32517302785 ClipClip
-
32517302785 ClipClip
-
33704903339 Caution Decal, WindshieldCaution Decal, Windshield
-
33704903339 Caution Decal, WindshieldCaution Decal, Windshield
-
34705000321 Oval WasherOval Washer
-
34705000321 Oval WasherOval Washer
-
35705007273 Front Console Viper Red. Red ModelFront Console Viper Red. Red Model
-
35705007273 Front Console Viper Red. Red ModelFront Console Viper Red. Red Model
-
35705007275 Front Console Blue. Blue ModelFront Console Blue. Blue Model
-
35705007275 Front Console Blue. Blue ModelFront Console Blue. Blue Model
-
35705007274 Front Console Magnesium. Magnesium ModelFront Console Magnesium. Magnesium Model
-
35705007274 Front Console Magnesium. Magnesium ModelFront Console Magnesium. Magnesium Model
-
35705007339 Yellow Front Console. Yellow ModelYellow Front Console. Yellow Model
-
35705007339 Yellow Front Console. Yellow ModelYellow Front Console. Yellow Model
-
36705006186 Upper ConsoleUpper Console
-
36705006186 Upper ConsoleUpper Console
-
37705006170 LH Upper Panel, Red. Red ModelLH Upper Panel, Red. Red Model
-
37705006170 LH Upper Panel, Red. Red ModelLH Upper Panel, Red. Red Model
-
37705006161 LH Upper Panel, Blue. Blue ModelLH Upper Panel, Blue. Blue Model
-
37705006161 LH Upper Panel, Blue. Blue ModelLH Upper Panel, Blue. Blue Model
-
37705006165 LH Upper Panel, Magnesium. Magnesium ModelLH Upper Panel, Magnesium. Magnesium Model
-
37705006165 LH Upper Panel, Magnesium. Magnesium ModelLH Upper Panel, Magnesium. Magnesium Model
-
37705006329 Yellow LH Upper Panel. Yellow ModelYellow LH Upper Panel. Yellow Model
-
37705006329 Yellow LH Upper Panel. Yellow ModelYellow LH Upper Panel. Yellow Model
-
38705006169 RH Upper Panel, Red. Red ModelRH Upper Panel, Red. Red Model
-
38705006169 RH Upper Panel, Red. Red ModelRH Upper Panel, Red. Red Model
-
38705006163 RH Upper Panel, Blue. Blue ModelRH Upper Panel, Blue. Blue Model
-
38705006163 RH Upper Panel, Blue. Blue ModelRH Upper Panel, Blue. Blue Model
-
38705006166 RH Upper Panel, Magnesium. Magnesium ModelRH Upper Panel, Magnesium. Magnesium Model
-
38705006166 RH Upper Panel, Magnesium. Magnesium ModelRH Upper Panel, Magnesium. Magnesium Model
-
38705006320 Yellow RH Upper Panel. Yellow ModelYellow RH Upper Panel. Yellow Model
-
38705006320 Yellow RH Upper Panel. Yellow ModelYellow RH Upper Panel. Yellow Model
-
39293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
39293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
40705002726 Glove BoxGlove Box
-
40705002726 Glove BoxGlove Box
-
42a705006655 Dashboard Ass'y. Includes 42a to 42cDashboard Ass'y. Includes 42a to 42c
-
42a705006655 Dashboard Ass'y. Includes 42a to 42cDashboard Ass'y. Includes 42a to 42c
-
42b705003199 LH Speaker GrillLH Speaker Grill
-
42b705003199 LH Speaker GrillLH Speaker Grill
-
42c705003200 RH Speaker GrillRH Speaker Grill
-
42c705003200 RH Speaker GrillRH Speaker Grill
-
43705002743 Console SupportConsole Support
-
43705002743 Console SupportConsole Support
-
44705002746 Guide Chart SupportGuide Chart Support
-
44705002746 Guide Chart SupportGuide Chart Support
-
45705002839 LH Service CenterLH Service Center
-
45705002839 LH Service CenterLH Service Center
-
46705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
46705002841 LH Upper Air DeflectorLH Upper Air Deflector
-
47705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
47705002842 RH Upper Air DeflectorRH Upper Air Deflector
-
48a705007069 Windshield Motor Support Ass'y. Includes 48a to 48iWindshield Motor Support Ass'y. Includes 48a to 48i
-
48a705007069 Windshield Motor Support Ass'y. Includes 48a to 48iWindshield Motor Support Ass'y. Includes 48a to 48i
-
48b219800197 Rear Arm. Includes 48b to 48dRear Arm. Includes 48b to 48d
-
48b219800197 Rear Arm. Includes 48b to 48dRear Arm. Includes 48b to 48d
-
48c705003267 SleeveSleeve
-
48c705003267 SleeveSleeve
-
48dNLA Inner Sleeve. Order 219800321Inner Sleeve. Order 219800321
-
48dNLA Inner Sleeve. Order 219800321Inner Sleeve. Order 219800321
-
48e705003267 SleeveSleeve
-
48e705003267 SleeveSleeve
-
48f207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
48f207065060 Hex. Screw M6 X 50Hex. Screw M6 X 50
-
48g232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
48g232561200 Elastic Stop Nut M6, BrassElastic Stop Nut M6, Brass
-
48h234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48h234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
48i278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
48i278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
50705007411 Black Deep Windshield Cap LH. RT-STDBlack Deep Windshield Cap LH. RT-STD
-
50705007411 Black Deep Windshield Cap LH. RT-STDBlack Deep Windshield Cap LH. RT-STD
-
51705003092 LH Speaker HousingLH Speaker Housing
-
51705003092 LH Speaker HousingLH Speaker Housing
-
52a219400191 Chrome Windshield Cap Kit. RT-SChrome Windshield Cap Kit. RT-S
-
52a219400191 Chrome Windshield Cap Kit. RT-SChrome Windshield Cap Kit. RT-S
-
52b705003973 LH Windshield Cap, Chrome. RT-SLH Windshield Cap, Chrome. RT-S
-
52b705003973 LH Windshield Cap, Chrome. RT-SLH Windshield Cap, Chrome. RT-S
-
52c705003974 RH Windshield Cap, Chrome. RT-SRH Windshield Cap, Chrome. RT-S
-
52c705003974 RH Windshield Cap, Chrome. RT-SRH Windshield Cap, Chrome. RT-S
-
52d250000079 Panel Nut M5 X 0.8. RT-SPanel Nut M5 X 0.8. RT-S
-
52d250000079 Panel Nut M5 X 0.8. RT-SPanel Nut M5 X 0.8. RT-S
-
52e250000455 Torx Screw M5 X 25. RT-STorx Screw M5 X 25. RT-S
-
52e250000455 Torx Screw M5 X 25. RT-STorx Screw M5 X 25. RT-S
-
53705003093 RH Speaker HousingRH Speaker Housing
-
53705003093 RH Speaker HousingRH Speaker Housing
-
54705007403 LH Upper Mirror Shell, Viper Red. Red ModelLH Upper Mirror Shell, Viper Red. Red Model
-
54705007403 LH Upper Mirror Shell, Viper Red. Red ModelLH Upper Mirror Shell, Viper Red. Red Model
-
54705007407 LH Upper Mirror Shell, Blue. Blue ModelLH Upper Mirror Shell, Blue. Blue Model
-
54705007407 LH Upper Mirror Shell, Blue. Blue ModelLH Upper Mirror Shell, Blue. Blue Model
-
54705007401 LH Upper Mirror Shell, Magnesium. Magnesium ModelLH Upper Mirror Shell, Magnesium. Magnesium Model
-
54705007401 LH Upper Mirror Shell, Magnesium. Magnesium ModelLH Upper Mirror Shell, Magnesium. Magnesium Model
-
54705007409 LH Upper Mirror Shell, Yellow. Yellow ModelLH Upper Mirror Shell, Yellow. Yellow Model
-
54705007409 LH Upper Mirror Shell, Yellow. Yellow ModelLH Upper Mirror Shell, Yellow. Yellow Model
-
56a705006966 LH Mirror Ass'y. Includes 56a to 56dLH Mirror Ass'y. Includes 56a to 56d
-
56a705006966 LH Mirror Ass'y. Includes 56a to 56dLH Mirror Ass'y. Includes 56a to 56d
-
56b705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
56b705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
56c710001510 LH Front Flasher UnitLH Front Flasher Unit
-
56c710001510 LH Front Flasher UnitLH Front Flasher Unit
-
56d250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
56d250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
62234062410 Flat Washer 6 mmFlat Washer 6 mm
-
62234062410 Flat Washer 6 mmFlat Washer 6 mm
-
64705007404 RH Upper Mirror Shell, Viper Red. Red ModelRH Upper Mirror Shell, Viper Red. Red Model
-
64705007404 RH Upper Mirror Shell, Viper Red. Red ModelRH Upper Mirror Shell, Viper Red. Red Model
-
64705007408 RH Upper Mirror Shell, Blue. Blue ModelRH Upper Mirror Shell, Blue. Blue Model
-
64705007408 RH Upper Mirror Shell, Blue. Blue ModelRH Upper Mirror Shell, Blue. Blue Model
-
64705007402 RH Upper Mirror Shell, Magnesium. Magnesium ModelRH Upper Mirror Shell, Magnesium. Magnesium Model
-
64705007402 RH Upper Mirror Shell, Magnesium. Magnesium ModelRH Upper Mirror Shell, Magnesium. Magnesium Model
-
64705007410 RH Upper Mirror Shell, Yellow. Yellow ModelRH Upper Mirror Shell, Yellow. Yellow Model
-
64705007410 RH Upper Mirror Shell, Yellow. Yellow ModelRH Upper Mirror Shell, Yellow. Yellow Model
-
69a705006967 RH Mirror Ass'y. Includes 69a to 69dRH Mirror Ass'y. Includes 69a to 69d
-
69a705006967 RH Mirror Ass'y. Includes 69a to 69dRH Mirror Ass'y. Includes 69a to 69d
-
69b705003159 RH Lower Mirror ShellRH Lower Mirror Shell
-
69b705003159 RH Lower Mirror ShellRH Lower Mirror Shell
-
69c710001511 RH Front Flasher UnitRH Front Flasher Unit
-
69c710001511 RH Front Flasher UnitRH Front Flasher Unit
-
69d250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
69d250000610 Flanged Screw K30 X 12Flanged Screw K30 X 12
-
74705003163 Dashboard BezelDashboard Bezel
-
74705003163 Dashboard BezelDashboard Bezel
