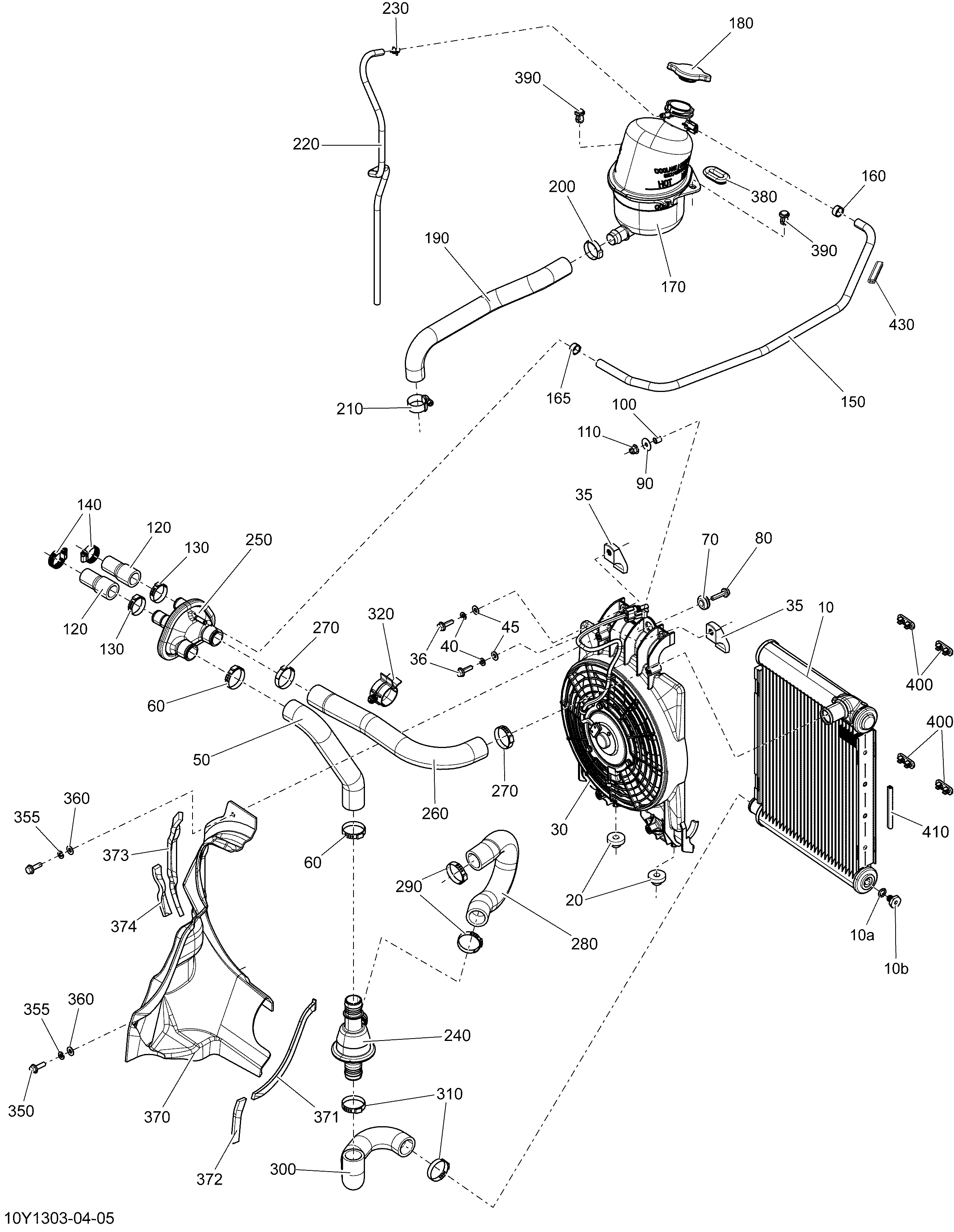

01- Cooling System для BRP Spyder ST_STS SM5 - 2013
-
№АртикулНазвание
-
10709200337 Radiator. Includes 10 to 10bRadiator. Includes 10 to 10b
-
10a709200417 O-RingO-Ring
-
10b709200418 Drain PlugDrain Plug
-
20709200285 GrommetGrommet
-
30709200409 FanFan
-
35709200372 Clamp BracketClamp Bracket
-
36207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
40234161601 Lock Washer Helical M6Lock Washer Helical M6
-
45224061121 Flat WasherFlat Washer
-
50709200419 Formed HoseFormed Hose
-
60509000045 Oetiker Gear ClampOetiker Gear Clamp
-
70293720053 GrommetGrommet
-
80207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
90224060201 Flat WasherFlat Washer
-
100293900105 BushingBushing
-
110233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
120709200144 Formed HoseFormed Hose
-
130293650099 Oetiker Gear ClampOetiker Gear Clamp
-
140293650173 Tridon Gear ClampTridon Gear Clamp
-
150709200421 Formed HoseFormed Hose
-
160293650025 Oetiker Gear ClampOetiker Gear Clamp
-
165293650025 Oetiker Gear ClampOetiker Gear Clamp
-
170709200405 Coolant TankCoolant Tank
-
180509000187 Pressure CapPressure Cap
-
190709200399 Formed HoseFormed Hose
-
200293650141 Oetiker Gear ClampOetiker Gear Clamp
-
210293650051 Tridon Gear ClampTridon Gear Clamp
-
220415080200 Hose, PolyurethaneHose, Polyurethane
-
230414554800 Spring ClampSpring Clamp
-
240709200384 Thermostat HousingThermostat Housing
-
250709200151 ConnectorConnector
-
260709200420 Formed HoseFormed Hose
-
270509000045 Oetiker Gear ClampOetiker Gear Clamp
-
280709200259 Formed HoseFormed Hose
-
290509000045 Oetiker Gear ClampOetiker Gear Clamp
-
300709200301 Formed HoseFormed Hose
-
310509000045 Oetiker Gear ClampOetiker Gear Clamp
-
320275500590 RetainerRetainer
-
350207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
355234161601 Lock Washer Helical M6Lock Washer Helical M6
-
360224061121 Flat WasherFlat Washer
-
370705006688 RH Inner Heat ShieldRH Inner Heat Shield
-
371293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
372293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
373293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
374293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
380705003668 Oblong GrommetOblong Grommet
-
390293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
400709200502 Rubber StopperRubber Stopper
-
410414506600 TrimTrim
-
430271001530 TrimTrim
