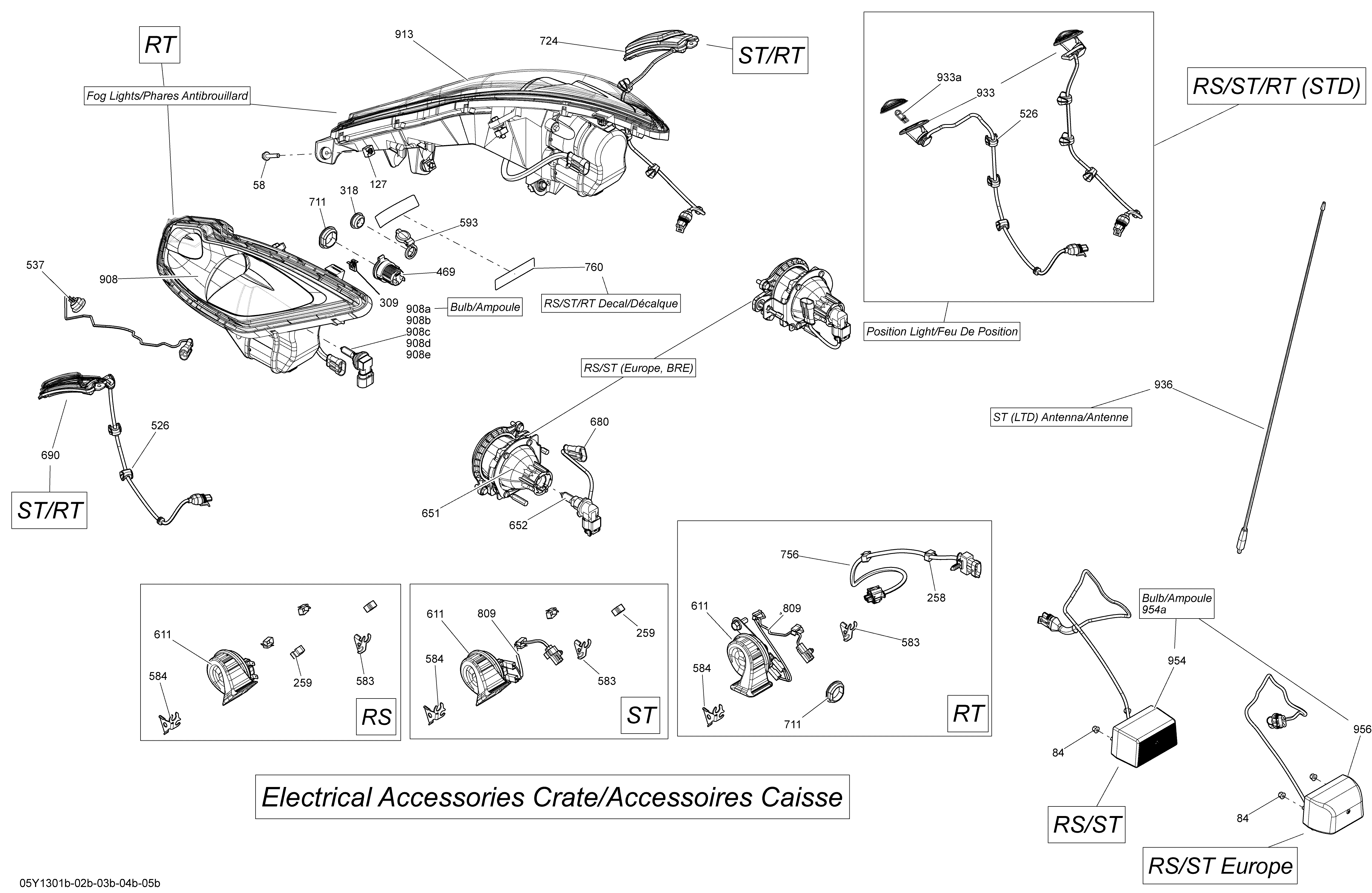

10- Electrical Accessories Crate Lighting для BRP Spyder ST_STS SM5 - 2013
-
№АртикулНазвание
-
84233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
258414227300 ClipClip
-
259414227300 ClipClip
-
469710001248 Outlet DCOutlet DC
-
526710001452 Wire BracketWire Bracket
-
583710002018 RH Wire SupportRH Wire Support
-
584710002019 LH Wire SupportLH Wire Support
-
593710002078 WeathercapWeathercap
-
611710002318 HornHorn
-
680710002622 Headlight AdapterHeadlight Adapter
-
690710002691 LH Position Light. RS-S, ST, RTLH Position Light. RS-S, ST, RT
-
690710003295 Position Light. RT STD, RS STD, STPosition Light. RT STD, RS STD, ST
-
724710002897 RH Position Light. RS-S, ST, RTRH Position Light. RS-S, ST, RT
-
724710003295 Position Light. RT STD, RS STD, STPosition Light. RT STD, RS STD, ST
-
760710003077 R/L Label DecalR/L Label Decal
-
809710003114 Extension Harness, HornExtension Harness, Horn
-
933710002691 LH Position Light. RS-SLH Position Light. RS-S
-
933710003295 Position Light. RS STDPosition Light. RS STD
-
933710002897 RH Position Light. RT-S, RT-LTDRH Position Light. RT-S, RT-LTD
-
954710003348 License Plate Light. RS, ST North AmericaLicense Plate Light. RS, ST North America
-
954710003349 License Plate Light. RS, ST Europe, BrezilLicense Plate Light. RS, ST Europe, Brezil
-
956710003349 License Plate Light. RS, ST EuropeLicense Plate Light. RS, ST Europe
-
933a410922994 Bulb 5W.Bulb 5W.
-
954a415129261 BulbBulb
