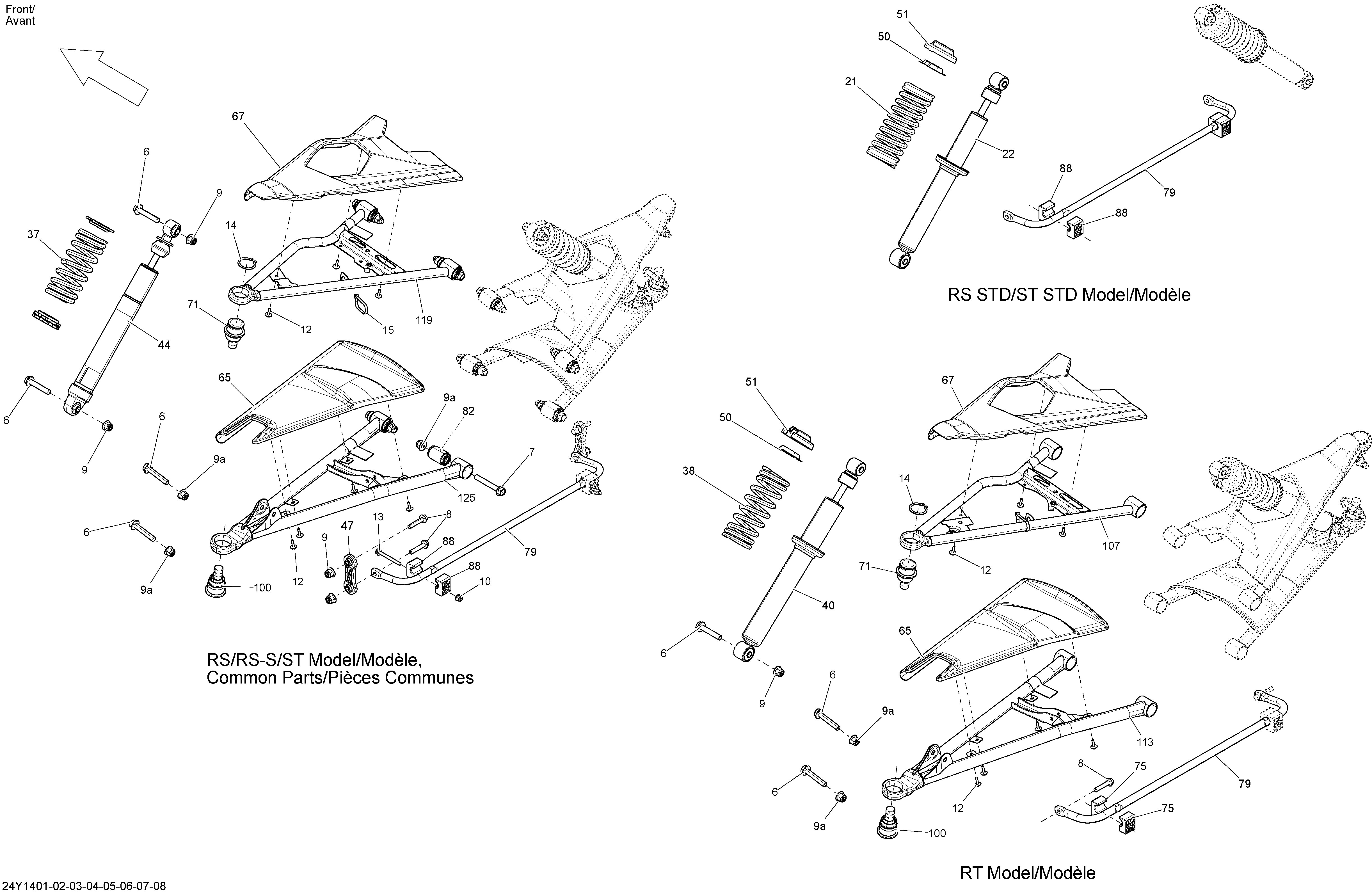

07- Suspension, Front _24Y1408 для BRP Spyder RSS SM5 - 2014
-
№АртикулНазвание
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
6207605534 Hex. Flanged ScrewHex. Flanged Screw
-
7207607036 Hex. Flanged ScrewHex. Flanged Screw
-
8207684034 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
9233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
9a233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
10250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
12250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
13250000397 Hex. Flanged Screw DIN.6921 M6 X 60Hex. Flanged Screw DIN.6921 M6 X 60
-
14293370035 CirclipCirclip
-
15414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
37706001108 Spring. Model- RS SSpring. Model- RS S
-
44706001750 Shock. Model- RS SShock. Model- RS S
-
47706200671 Tie RodTie Rod
-
65706201319 LH Lower Air DeflectorLH Lower Air Deflector
-
65706201320 RH Lower Air DeflectorRH Lower Air Deflector
-
67706201925 Red Dragon LH Upper Air Deflector. Model- RS S Red DragonRed Dragon LH Upper Air Deflector. Model- RS S Red Dragon
-
67706201926 Red Dragon RH Upper Air Deflector. Model- RS S Red DragonRed Dragon RH Upper Air Deflector. Model- RS S Red Dragon
-
67706201925 Red Dragon LH Upper Air Deflector. Model- RS S White SatinRed Dragon LH Upper Air Deflector. Model- RS S White Satin
-
67706201926 Red Dragon RH Upper Air Deflector. Model- RS S White SatinRed Dragon RH Upper Air Deflector. Model- RS S White Satin
-
67706201927 Yellow LH Upper Air Deflector. Model- RS S Yellow SatinYellow LH Upper Air Deflector. Model- RS S Yellow Satin
-
67706201928 Yellow RH Upper Air Deflector. Model- RS S Yellow SatinYellow RH Upper Air Deflector. Model- RS S Yellow Satin
-
71706201371 Ball JointBall Joint
-
79706201421 Sway Bar. Model- RS SSway Bar. Model- RS S
-
82706201519 Suspension Arm BushingSuspension Arm Bushing
-
88706201545 Stabilizer Bushing. Model- RS SStabilizer Bushing. Model- RS S
-
100706201739 Ball JointBall Joint
-
119706201735 LH Upper Arm. Model- RSLH Upper Arm. Model- RS
-
119706201736 RH Upper Arm. Model- RSRH Upper Arm. Model- RS
-
125706201737 LH Lower Arm. Model- RSLH Lower Arm. Model- RS
-
125706201738 RH Lower Arm. Model- RSRH Lower Arm. Model- RS
