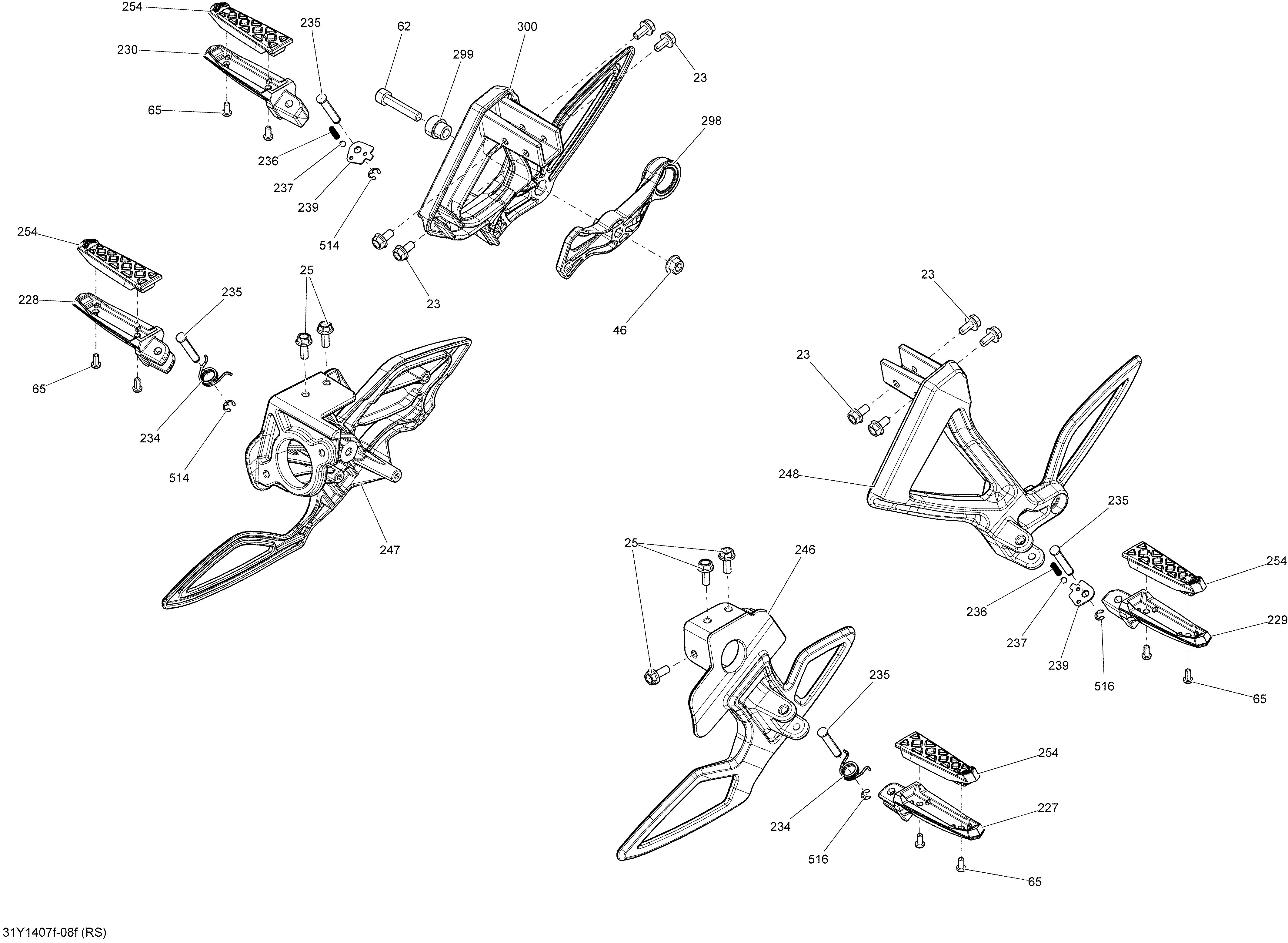

09- Body And Accessories Footrest_31Y1408f для BRP Spyder RSS SM5 - 2014
-
№АртикулНазвание
-
23207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
25207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
46233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
62244005060 Allen Screw S.GRIP M10 X 50Allen Screw S.GRIP M10 X 50
-
65250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
227705004671 LH Front FootrestLH Front Footrest
-
228705004672 RH Front FootrestRH Front Footrest
-
229705004680 LH Rear FootrestLH Rear Footrest
-
230705004681 RH Rear FootrestRH Rear Footrest
-
234705001701 SpringSpring
-
235705001702 Retainer PinRetainer Pin
-
236705001704 SpringSpring
-
237705001705 BallBall
-
239705001706 Indexation PlateIndexation Plate
-
246705004673 Black Carbon LH Front Foot SupportBlack Carbon LH Front Foot Support
-
247705004674 Black Carbon RH Foot SupportBlack Carbon RH Foot Support
-
248705004678 Black Carbon LH Rear Foot SupportBlack Carbon LH Rear Foot Support
-
254705002359 Rubber PadRubber Pad
-
298705006853 Black Muffler SupportBlack Muffler Support
-
299705003765 BushingBushing
-
300705003533 Black Carbon RH Rear Foot SupportBlack Carbon RH Rear Foot Support
-
514705601030 CirclipCirclip
-
516705601030 CirclipCirclip
