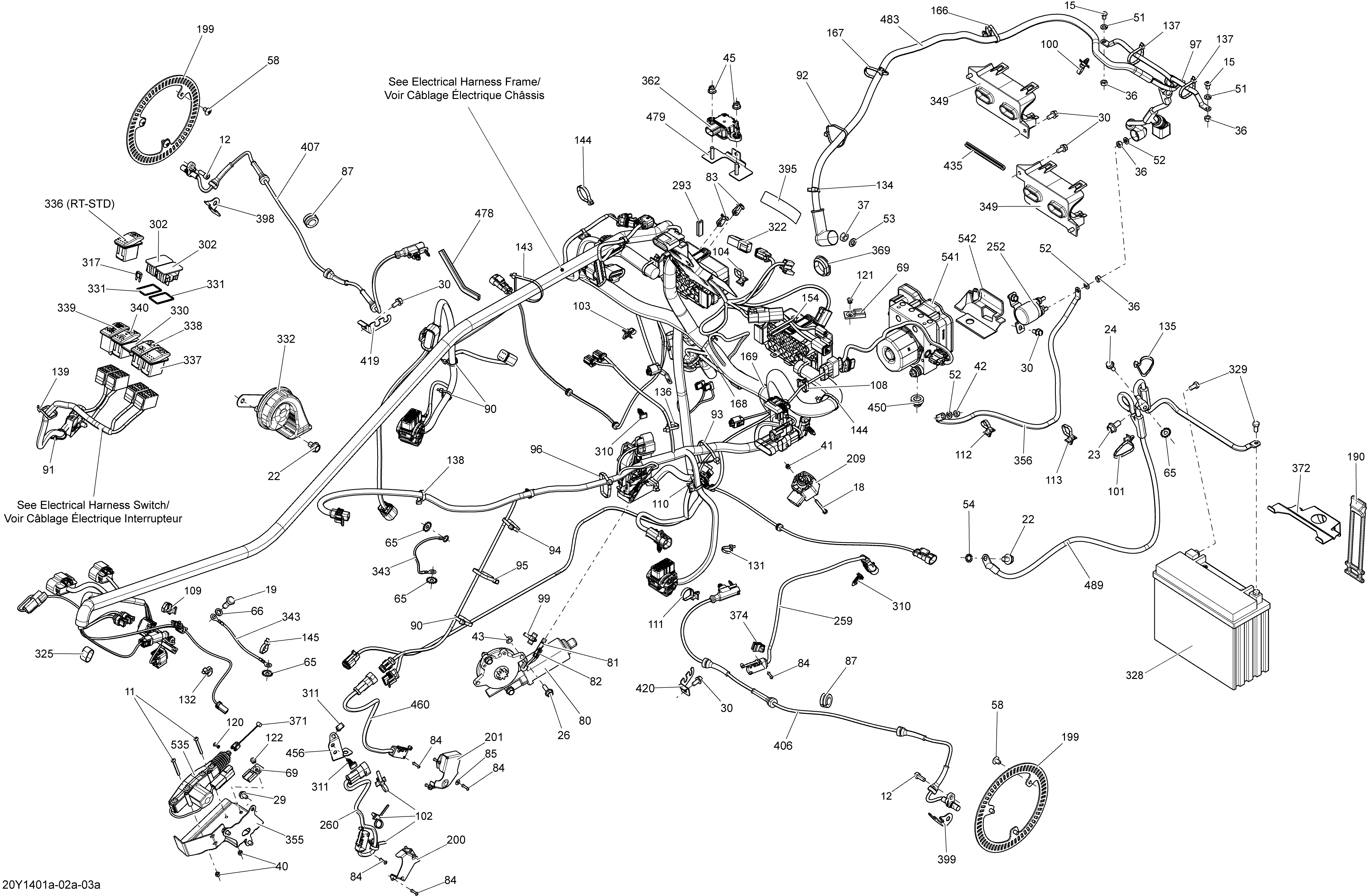

10- Electrical System _20Y1401a для BRP Spyder RT SE6 - 2014
-
№АртикулНазвание
-
11205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
12205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
15205961060 Socket Head Screw M6 X 10, Scotch GripSocket Head Screw M6 X 10, Scotch Grip
-
18207144044 Hex. Cap ScrewHex. Cap Screw
-
19207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
22207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
23207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
24207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
26207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
29210261080 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
30210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
36232061600 Hex. Nut M6Hex. Nut M6
-
37232081414 Hex. Nut M8Hex. Nut M8
-
40232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
41232541484 Elastic Stop Nut M4Elastic Stop Nut M4
-
42232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
43232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
45233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51234161601 Lock Washer Helical M6Lock Washer Helical M6
-
52234161601 Lock Washer Helical M6Lock Washer Helical M6
-
53234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
54234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
58250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
65250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
66250200111 WasherWasher
-
69270000141 ClipClip
-
80278003071 Control Gear Motor. Includes 80 to 82Control Gear Motor. Includes 80 to 82
-
81278000231 Insulation SheathInsulation Sheath
-
82278000230 Male TerminalMale Terminal
-
83293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
84293150023 Pop-rivet 1/8''Pop-rivet 1/8''
-
85234032600 Flat Washer M3, StainlessFlat Washer M3, Stainless
-
87293720095 GrommetGrommet
-
90293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
91293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
92293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
93293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
94293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
96293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
97293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
99293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
100293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
101293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
102293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
103293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
104293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
108293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
109293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
110293750009 Tie-Rap 173 mm. SE6Tie-Rap 173 mm. SE6
-
111293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
112293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
113293750009 Tie-Rap 173 mmTie-Rap 173 mm
-
120390403000 Pop Rivet 5/32Pop Rivet 5/32
-
121390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
122390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
131414115200 Tie-Rap 180 mm. SE6Tie-Rap 180 mm. SE6
-
134414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
135414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
136414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
137414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
138414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
139414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
143414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
144414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
145414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
154414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
166515175220 Tie RapTie Rap
-
167515175220 Tie RapTie Rap
-
168515175220 Tie RapTie Rap
-
169515175220 Tie RapTie Rap
-
190520000528 LatchLatch
-
199705601191 Front Tone WheelFront Tone Wheel
-
200705601257 DeflectorDeflector
-
201705601344 DeflectorDeflector
-
209709401171 Posi-Steer SensorPosi-Steer Sensor
-
252710001364 Starter RelayStarter Relay
-
259710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
260710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
293271001530 TrimTrim
-
302710001999 Plug CarlingPlug Carling
-
310710002033 HolderHolder
-
311710002033 HolderHolder
-
317710002149 Shunt FuseShunt Fuse
-
322710002167 Packard Connector With PlugPackard Connector With Plug
-
325710002211 Rubber Plug, 24.2 X 11.4 mmRubber Plug, 24.2 X 11.4 mm
-
328219800305 Battery, 12 Volts, 21 Amperes. BrazilBattery, 12 Volts, 21 Amperes. Brazil
-
328410922962 Battery, 12 Volts, 21 Amperes. Includes 328 to 329, All Models Except BrazilBattery, 12 Volts, 21 Amperes. Includes 328 to 329, All Models Except Brazil
-
329250000282 Battery Bolt Kit. All Models Except BrazilBattery Bolt Kit. All Models Except Brazil
-
330710002260 PlugPlug
-
331710002288 Panel SealPanel Seal
-
332710002318 HornHorn
-
336710002350 Switch, Parking BrakeSwitch, Parking Brake
-
340710002354 Switch, Heat GripSwitch, Heat Grip
-
343710002374 Fuel Tank Negative CableFuel Tank Negative Cable
-
349710002388 Fuse Holder SupportFuse Holder Support
-
355710002523 Reverse Actuator SupportReverse Actuator Support
-
356710002562 Starter CableStarter Cable
-
362710002677 Yaw Rate SensorYaw Rate Sensor
-
369710002858 Rubber PlugRubber Plug
-
371710002889 Reverse CableReverse Cable
-
372710002893 Battery HolderBattery Holder
-
374710002896 Tie-Rap ClipTie-Rap Clip
-
395710003077 R/L Label DecalR/L Label Decal
-
398710003089 Speed Sensor HolderSpeed Sensor Holder
-
399710003090 Speed Sensor HolderSpeed Sensor Holder
-
406710003091 Speed SensorSpeed Sensor
-
407710003091 Speed SensorSpeed Sensor
-
419710003156 Speed Sensor HolderSpeed Sensor Holder
-
420710003157 Speed Sensor HolderSpeed Sensor Holder
-
435271001530 TrimTrim
-
450710003279 Damper ShockDamper Shock
-
456710003305 Connectors BracketConnectors Bracket
-
460710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
478271001530 TrimTrim
-
479710003494 YRS HolderYRS Holder
-
483710003549 Positive CablePositive Cable
-
489710003550 Ground CableGround Cable
-
535710003776 ActuatorActuator
-
541219800333 Module VCMModule VCM
-
542710003996 VCM Harness ProtectorVCM Harness Protector
