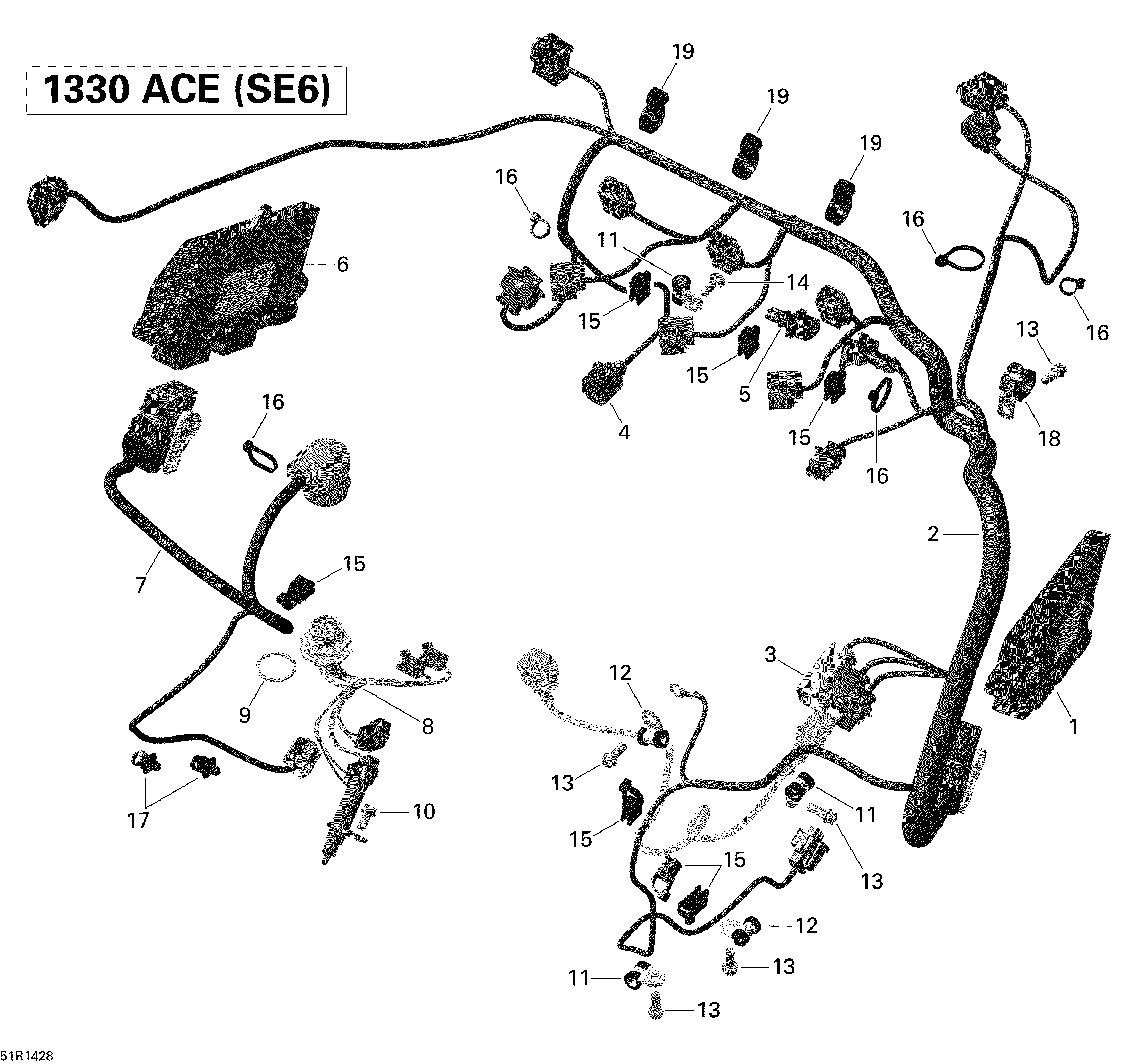

10- Engine Harness And Electronic Module для BRP Spyder RT SE6 - 2014
-
№АртикулНазвание
-
1420264816 ECM, Engine Controle Module. Model-North America, Europe, JapanECM, Engine Controle Module. Model-North America, Europe, Japan
-
1420264817 ECM, Engine Controle Module. Model-Australia, BrazilECM, Engine Controle Module. Model-Australia, Brazil
-
2420266782 Engine Wiring Harness. Includes 2 to 4Engine Wiring Harness. Includes 2 to 4
-
3710001539 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
4710001184 HousingHousing
-
5420650055 ConnectorConnector
-
6420266875 Transmission Module. Model-North America, Europe, JapanTransmission Module. Model-North America, Europe, Japan
-
6420266876 Transmission Module. Model-Australia, BrazilTransmission Module. Model-Australia, Brazil
-
7420266880 Transmission Wiring HarnessTransmission Wiring Harness
-
8420264100 Sensor Wiring Harness. Includes 8 to 9Sensor Wiring Harness. Includes 8 to 9
-
9420450480 O-RingO-Ring
-
10420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
11414176000 Open ClampOpen Clamp
-
12420853414 ClampClamp
-
13420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
14420641588 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
15420951650 Cable ClampCable Clamp
-
16420866714 Tie RapTie Rap
-
17420951345 Tie RapTie Rap
-
18420851493 Cable ClampCable Clamp
-
19420866716 Tie-RapTie-Rap
