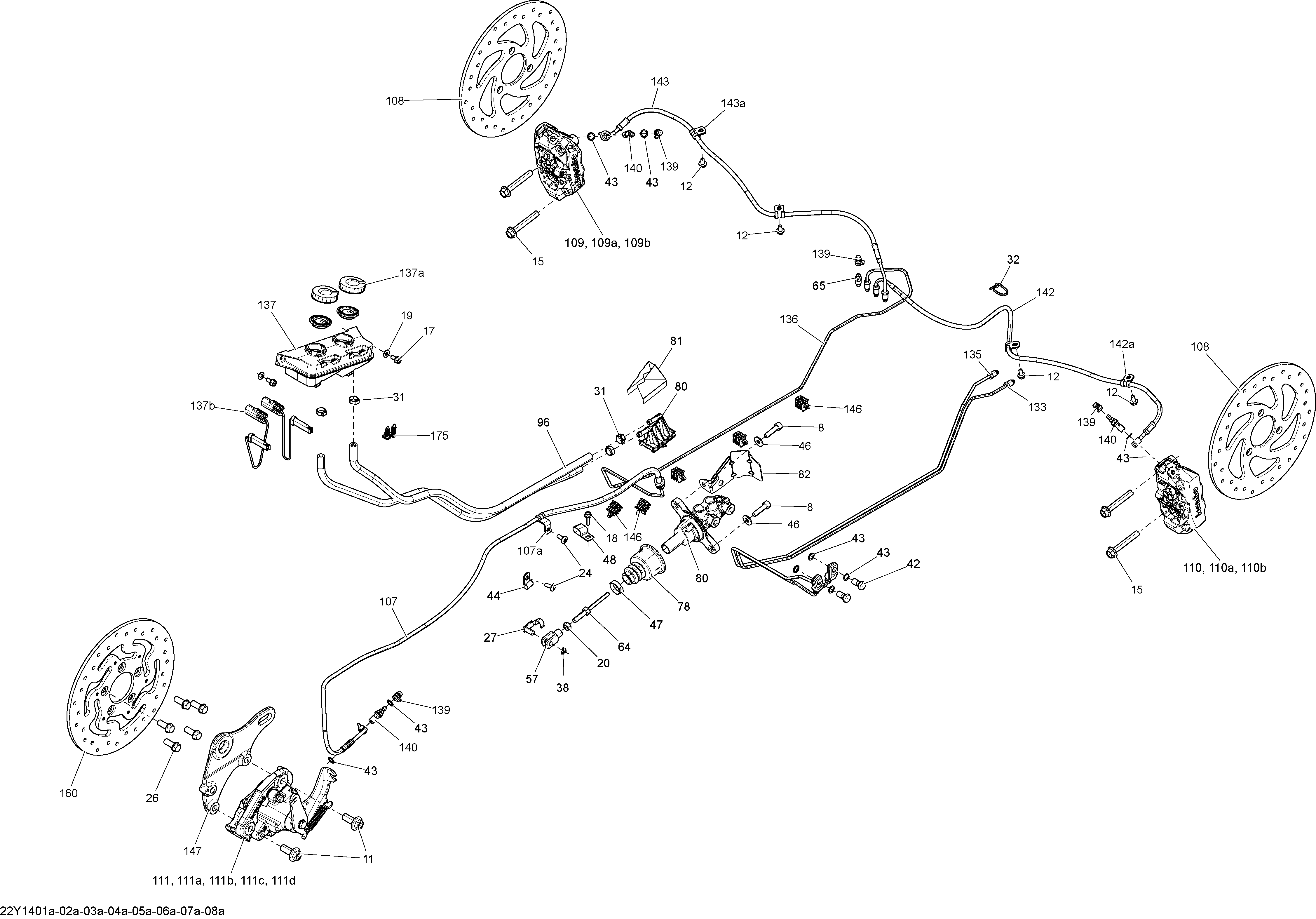

06- Hydraulic Brake ST_22Y1404a для BRP Spyder ST SE5 - 2014
-
№АртикулНазвание
-
8205583044 Allen Screw M8 X 30Allen Screw M8 X 30
-
11207523036 Hex. Flanged Screw S.Grip M12 X 30Hex. Flanged Screw S.Grip M12 X 30
-
12207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
15207506536 Hex. Flanged Screw M10 X 65Hex. Flanged Screw M10 X 65
-
17210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
18210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
19224061121 Flat WasherFlat Washer
-
20232081414 Hex. Nut M8Hex. Nut M8
-
24250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
26250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
27250400062 PinPin
-
31293650047 Crimp ClampCrimp Clamp
-
32293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
38371800700 Cotter PinCotter Pin
-
42414920500 Banjo BoltBanjo Bolt
-
43414920600 WasherWasher
-
44415052400 AttacheAttache
-
46506151245 WasherWasher
-
47509000442 Oetiker Gear ClampOetiker Gear Clamp
-
48515175507 ClipClip
-
57705600100 YokeYoke
-
64705600468 Piston RodPiston Rod
-
65705600502 Bleeder ScrewBleeder Screw
-
78705600716 BellowBellow
-
80705600722 Tandem Cylinder MasterTandem Cylinder Master
-
81705601334 Heat Shield. STHeat Shield. ST
-
82705601335 Brake Cable. STBrake Cable. ST
-
96415129615 Hose 8MMHose 8MM
-
107705600916 Rear Flexible Brake LineRear Flexible Brake Line
-
107a705600459 ClampClamp
-
108705600955 Front Brake DiskFront Brake Disk
-
109705600987 LH Front CaliperLH Front Caliper
-
109a219800237 Brake Pad KitBrake Pad Kit
-
109b219800238 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
110705600988 RH Front CaliperRH Front Caliper
-
110a219800237 Brake Pad KitBrake Pad Kit
-
110b219800238 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
111705600989 Rear CaliperRear Caliper
-
111a219800239 Brake Pad KitBrake Pad Kit
-
111b219800240 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
111c219800241 Rear Cable Support KitRear Cable Support Kit
-
111d219800242 Rear Dust CoverRear Dust Cover
-
133705601157 Tandem Rigid TubeTandem Rigid Tube
-
135705601158 Tandem Rigid TubeTandem Rigid Tube
-
136705601159 Rear Brake Rigid TubeRear Brake Rigid Tube
-
137705601072 Brake Fluid Reservoir Ass'yBrake Fluid Reservoir Ass'y
-
137a219800058 Cap And Diaphragm KitCap And Diaphragm Kit
-
137b705601073 Oil Level SensorOil Level Sensor
-
139705601190 Bleeder Bolt CapBleeder Bolt Cap
-
140705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
142705601254 RH Front Hose. STRH Front Hose. ST
-
142a715900250 Hose Clip. STHose Clip. ST
-
143705601255 LH Front Hose. STLH Front Hose. ST
-
143a715900250 Hose Clip. STHose Clip. ST
-
146705601256 Rigid Tube SupportRigid Tube Support
-
147705601262 Rear Caliper SupportRear Caliper Support
-
160705601300 Rear Brake DiskRear Brake Disk
-
175710002033 HolderHolder
