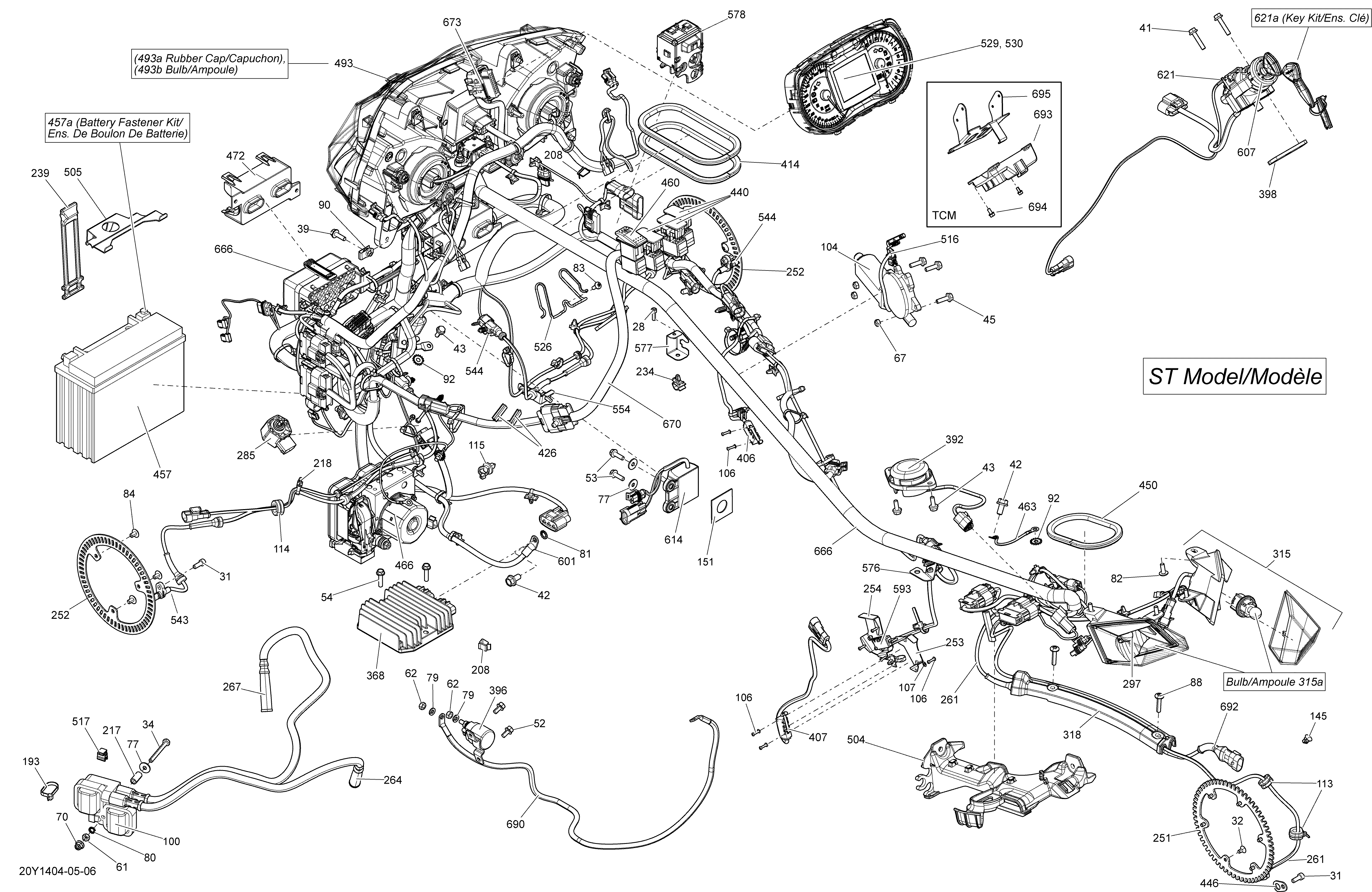

10- Electrical System _20Y1404 для BRP Spyder ST SE5 - 2014
-
№АртикулНазвание
-
28205051644 Socket Screw M5 X 16Socket Screw M5 X 16
-
31205561660 Socket Head Screw M6 X 16, Scotch GripSocket Head Screw M6 X 16, Scotch Grip
-
32205851036 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
34207065544 Hex. Screw M6 X 55Hex. Screw M6 X 55
-
39207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
42207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
43207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
45207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
52210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
53210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
54210262580 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
61232061414 Hex. Nut M6Hex. Nut M6
-
62232061600 Hex. Nut M6Hex. Nut M6
-
67232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
70233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
77234062410 Flat Washer 6 mmFlat Washer 6 mm
-
79234161601 Lock Washer Helical M6Lock Washer Helical M6
-
80234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
81234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
82250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
83250000145 Torx Screw M5 X 14Torx Screw M5 X 14
-
84250000210 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
88250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
90250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
92250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
100278001546 Ignition CoilIgnition Coil
-
104278002579 Parking Barke/Windshield MotorParking Barke/Windshield Motor
-
151293830091 Rubber BumperRubber Bumper
-
193414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
208414227300 ClipClip
-
217512059812 SpacerSpacer
-
218515175220 Tie RapTie Rap
-
234515176795 ClipClip
-
239520000528 LatchLatch
-
251705601062 Wheel SensorWheel Sensor
-
252705601191 Front Tone WheelFront Tone Wheel
-
253705601257 DeflectorDeflector
-
254705601344 DeflectorDeflector
-
261706200560 Speed SensorSpeed Sensor
-
264707000399 Cable Ass'yCable Ass'y
-
267707000518 Cable Ass'yCable Ass'y
-
285709401171 Posi-Steer SensorPosi-Steer Sensor
-
297710000706 LH Tail Light Ass'yLH Tail Light Ass'y
-
315515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
315a415129425 BulbBulb
-
318710001035 ProtectorProtector
-
368710001191 Voltage RegulatorVoltage Regulator
-
392710001346 Passenger Detection SwitchPassenger Detection Switch
-
396710001364 Starter RelayStarter Relay
-
398710001365 Switch SupportSwitch Support
-
406710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
407710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
414271001530 TrimTrim
-
426271001530 TrimTrim
-
440710001999 Plug CarlingPlug Carling
-
446710002024 Shim. SM5Shim. SM5
-
450271001530 TrimTrim
-
457410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
457a295500849 Battery Fastener KitBattery Fastener Kit
-
460710002350 Switch, Parking BrakeSwitch, Parking Brake
-
463710002374 Fuel Tank Negative CableFuel Tank Negative Cable
-
466219800333 Module VCMModule VCM
-
472710002388 Fuse Holder SupportFuse Holder Support
-
493710003891 HeadlampHeadlamp
-
493a219800280 Rubber Cap ProtectorRubber Cap Protector
-
493b515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
504710002860 Rear SupportRear Support
-
505710002893 Battery HolderBattery Holder
-
516710002899 Clip Tie-RapClip Tie-Rap
-
517710002899 Clip Tie-RapClip Tie-Rap
-
526710003017 Grommet SpindleGrommet Spindle
-
529710004111 Multifunction Gauge Cluster. Includes 529 a 530Multifunction Gauge Cluster. Includes 529 a 530
-
530415129349 LensLens
-
543710003091 Speed SensorSpeed Sensor
-
544710003091 Speed SensorSpeed Sensor
-
576710003305 Connectors BracketConnectors Bracket
-
577710003306 Knock Holder SupportKnock Holder Support
-
578710003310 Connector SupportConnector Support
-
593710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
601710003550 Ground CableGround Cable
-
607710003594 Switch CoverSwitch Cover
-
614710003595 D.E.S.S.TM (Digitally Encoded Module)D.E.S.S.TM (Digitally Encoded Module)
-
621710003598 Ignition SwitchIgnition Switch
-
621a710003596 Ignition key With SleeveIgnition key With Sleeve
-
666710003654 Harnness Frame, ST/SM5. SM5Harnness Frame, ST/SM5. SM5
-
666710003655 Harnness Frame, ST/SE5. SE5Harnness Frame, ST/SE5. SE5
-
670710003659 Harness SwitchHarness Switch
-
673710003661 Console Harness. International, Brezil, EuropeConsole Harness. International, Brezil, Europe
-
673710003662 Console HarnessConsole Harness
-
690710003820 Starter CableStarter Cable
-
692710003821 Cargo Box HarnessCargo Box Harness
-
693710003750 Calibrated Module. SE5Calibrated Module. SE5
-
694210261280 Hex. Flanged Screw M6 X 12. SE5Hex. Flanged Screw M6 X 12. SE5
-
695710002977 TCM Module Support. SE5TCM Module Support. SE5
