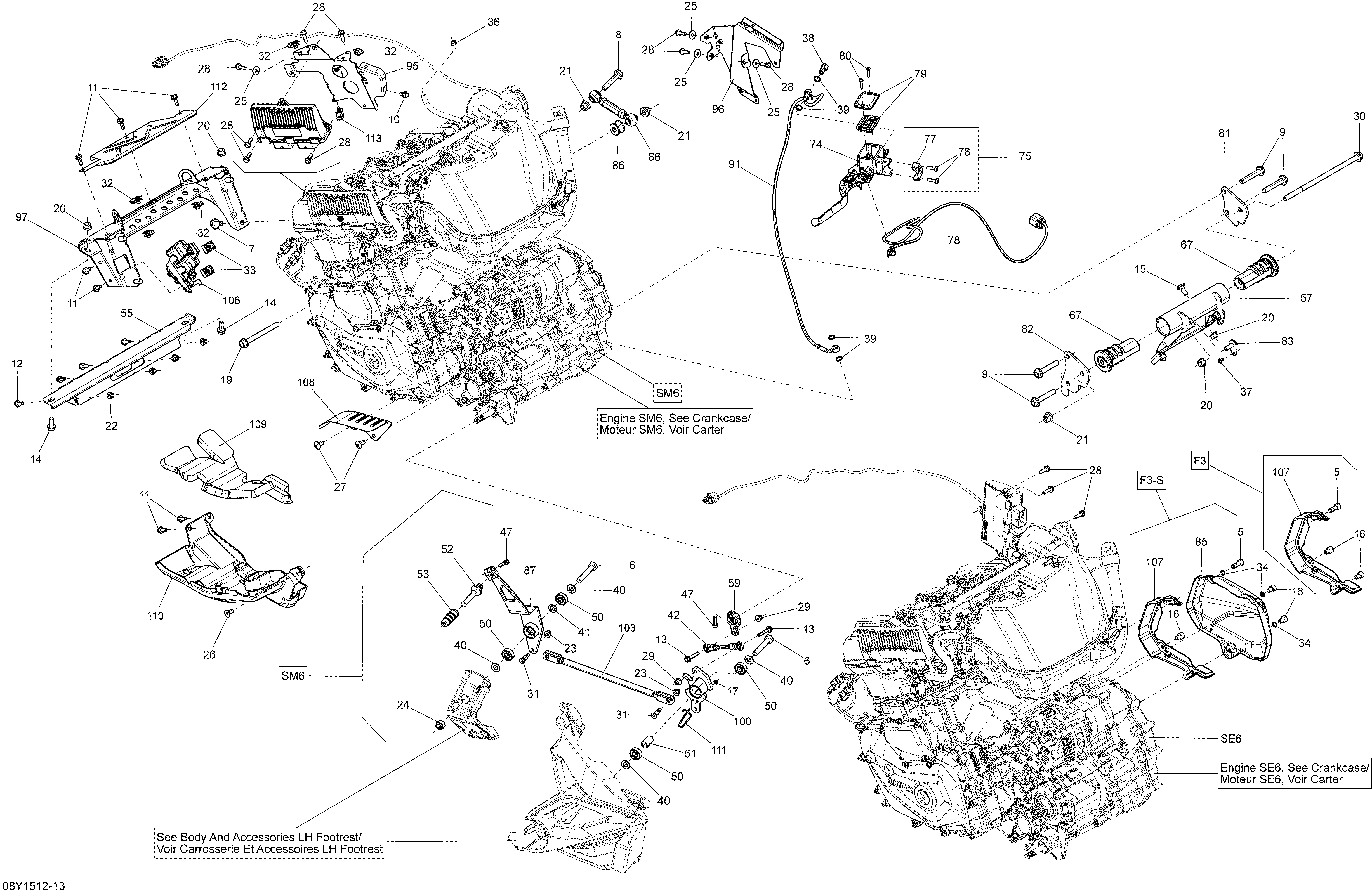

01- Engine _08Y1512 для BRP Spyder F3 SM6 - 2015
-
№АртикулНазвание
-
5205582060 Socket Head Screw M8 X 20, Scotch Grip. SE6Socket Head Screw M8 X 20, Scotch Grip. SE6
-
6207206534 Hex. Screw M10 X 65, Scotch Grip. SM6Hex. Screw M10 X 65, Scotch Grip. SM6
-
7207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
8207504546 Hex. Flanged Screw M10 X 45 Scotch GripHex. Flanged Screw M10 X 45 Scotch Grip
-
9207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
10207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. SM6Hex. Flanged Screw M6 X 30, Scotch Grip. SM6
-
14207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
15207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
16211000127 Socket Head Screw M8 X 10, Scotch Grip. SE6Socket Head Screw M8 X 10, Scotch Grip. SE6
-
17250100178 Push Nut. SM6Push Nut. SM6
-
19230600086 Hex. Flanged Screw M10 X 100Hex. Flanged Screw M10 X 100
-
20233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
21233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23233261466 Hex. Flanged Elastic Nut M6. SM6Hex. Flanged Elastic Nut M6. SM6
-
24233601466 Elastic Locking Nut M10. SM6Elastic Locking Nut M10. SM6
-
25234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
26235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
27250000198 Torx Truss Screw M8 X 16Torx Truss Screw M8 X 16
-
28250000331 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
29233261414 Hex. Flanged Elastic Nut M6. SM6Hex. Flanged Elastic Nut M6. SM6
-
30250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
31250000714 Flanged Screw M6 X 26. SM6Flanged Screw M6 X 26. SM6
-
32250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
33250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
36414420700 Spring Clamp. SM6Spring Clamp. SM6
-
37390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
38414920500 Banjo Bolt. SM6Banjo Bolt. SM6
-
39414920600 Washer. SM6Washer. SM6
-
40503183800 Washer. SM6Washer. SM6
-
41503192496 Washer. SM6Washer. SM6
-
42504152819 Linkage Rod. SM6Linkage Rod. SM6
-
47514054626 Socket Head Screw M6 X 22, Scotch Grip. SM6Socket Head Screw M6 X 22, Scotch Grip. SM6
-
50705600458 Bearing. SM6Bearing. SM6
-
51705600541 Bushing. SM6Bushing. SM6
-
52707000455 Adjustment Rod. SM6Adjustment Rod. SM6
-
53707000456 End Clutch Pedal. SM6End Clutch Pedal. SM6
-
55707000876 Rubber MountRubber Mount
-
57707000877 Frame EtensionFrame Etension
-
59707000926 Shifter Arm. SM6Shifter Arm. SM6
-
66707000959 Connecting RodConnecting Rod
-
67707000973 Rubber MountRubber Mount
-
74707001489 Clutch Lever Ass'y. SM6, Includes 74 to 80Clutch Lever Ass'y. SM6, Includes 74 to 80
-
75719000049 Clamps Kit. SM6, Includes 75 to 77Clamps Kit. SM6, Includes 75 to 77
-
76250000433 Torx Screw M6 X 20. SM6Torx Screw M6 X 20. SM6
-
77219800081 Clamp. SM6Clamp. SM6
-
78219800336 Microswitch. SM6Microswitch. SM6
-
79219800096 Cap Set. SM6, Includes 79 to 80Cap Set. SM6, Includes 79 to 80
-
80415129356 Screw M4 X 20. SM6Screw M4 X 20. SM6
-
81707001294 RH Engine SupportRH Engine Support
-
82707001293 LH Engine SupportLH Engine Support
-
83707001292 AttachAttach
-
86707001423 SpacerSpacer
-
87707001475 Gear Shift Lever. SM6Gear Shift Lever. SM6
-
91707001490 Hose. SM6Hose. SM6
-
95707001529 ECM SupportECM Support
-
96707001530 TCM SupportTCM Support
-
97707001561 Front Engine SupportFront Engine Support
-
100707001573 Shifter Lever Rocker. SM6Shifter Lever Rocker. SM6
-
103219400560 Shifter Linkage Kit (201.0 mm). SM6. (Position 1)Shifter Linkage Kit (201.0 mm). SM6. (Position 1)
-
103219400562 Shifter Linkage Kit (248.0 mm). SM6. (Position 2)Shifter Linkage Kit (248.0 mm). SM6. (Position 2)
-
103219400627 Shifter Linkage Kit (295.9 mm) . SM6. (Position 3) Factory InstalledShifter Linkage Kit (295.9 mm) . SM6. (Position 3) Factory Installed
-
103219400564 Shifter Linkage Kit (344.5 mm). SM6. (Position 4)Shifter Linkage Kit (344.5 mm). SM6. (Position 4)
-
103219400565 Shifter Linkage Kit (393.4 mm) . SM6. (Position 5)Shifter Linkage Kit (393.4 mm) . SM6. (Position 5)
-
106707001627 Connector SupporConnector Suppor
-
107707001628 Wire Cover. SE6Wire Cover. SE6
-
108707001660 Sprocket CoverSprocket Cover
-
109707001657 Acoustic FoamAcoustic Foam
-
110707001658 Skid PlateSkid Plate
-
111707001753 Quick-Attach Bracket. SM6Quick-Attach Bracket. SM6
-
112707601057 Upper Heat DeflectorUpper Heat Deflector
-
113709000633 Harness SupportHarness Support
