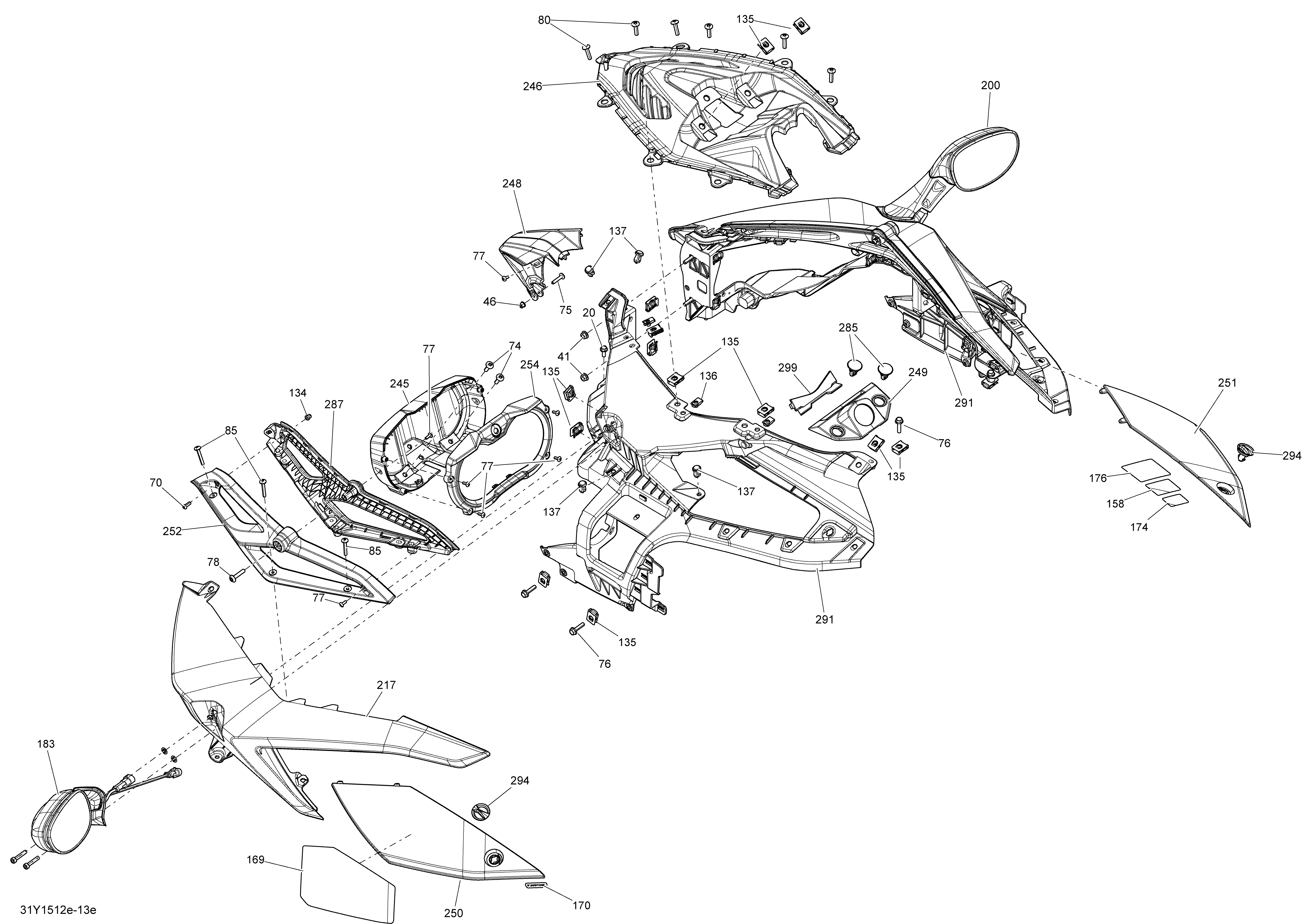

09- Body And Accessories Console_31Y1512e для BRP Spyder F3 SM6 - 2015
-
№АртикулНазвание
-
20210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
41233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
46233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
70235551494 Torx Screw M5 X 14Torx Screw M5 X 14
-
74250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
75250000300 Torx Screw M5 X 25Torx Screw M5 X 25
-
76250000504 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
77250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
78250000604 Torx Screw M6 X 30Torx Screw M6 X 30
-
80250000630 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
85250000732 Torx Screw NylonTorx Screw Nylon
-
134250100152 Cap Nut M5Cap Nut M5
-
135250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
136250100176 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
137293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
158704903119 Warning Decal, Liquide De FreinWarning Decal, Liquide De Frein
-
169704904518 Warning LabelWarning Label
-
170704904673 Card LOGOCard LOGO
-
174704904812 Decal, XPSDecal, XPS
-
176704904924 Caution Decal, Oil LevelCaution Decal, Oil Level
-
183705008964 LH Lighted Mirror AssemblyLH Lighted Mirror Assembly
-
200705008969 RH Lighted Mirror AssemblyRH Lighted Mirror Assembly
-
217708400023 LH Steel Black Console FairingLH Steel Black Console Fairing
-
217708400070 LH Vegas White Console FairingLH Vegas White Console Fairing
-
217708400024 RH Steel Black Console FairingRH Steel Black Console Fairing
-
217708400071 RH Vegas White Console FairingRH Vegas White Console Fairing
-
245708400005 Cluster HolderCluster Holder
-
246708400007 Upper FairingUpper Fairing
-
248708400011 Black Deep Nose FairingBlack Deep Nose Fairing
-
249708400058 Switch Bezel Assembly. Includes 285Switch Bezel Assembly. Includes 285
-
250708400026 LH Steel Black Access CoverLH Steel Black Access Cover
-
250708400073 LH Vegas White Access CoverLH Vegas White Access Cover
-
251708400027 RH Steel Black Access CoverRH Steel Black Access Cover
-
251708400074 RH Vegas White Access CoverRH Vegas White Access Cover
-
252708400016 LH Upper Console HeaderLH Upper Console Header
-
252708400017 RH Upper Console HeaderRH Upper Console Header
-
254708400022 Cluster BezelCluster Bezel
-
285708400046 CapCap
-
287708400053 LH Slider SupportLH Slider Support
-
287708400054 RH Slider SupportRH Slider Support
-
291708400056 LH Console SupportLH Console Support
-
291708400057 RH Console SupportRH Console Support
-
294708400065 Cover Latch Quater TurnCover Latch Quater Turn
-
299708400107 EnjoliveurEnjoliveur
