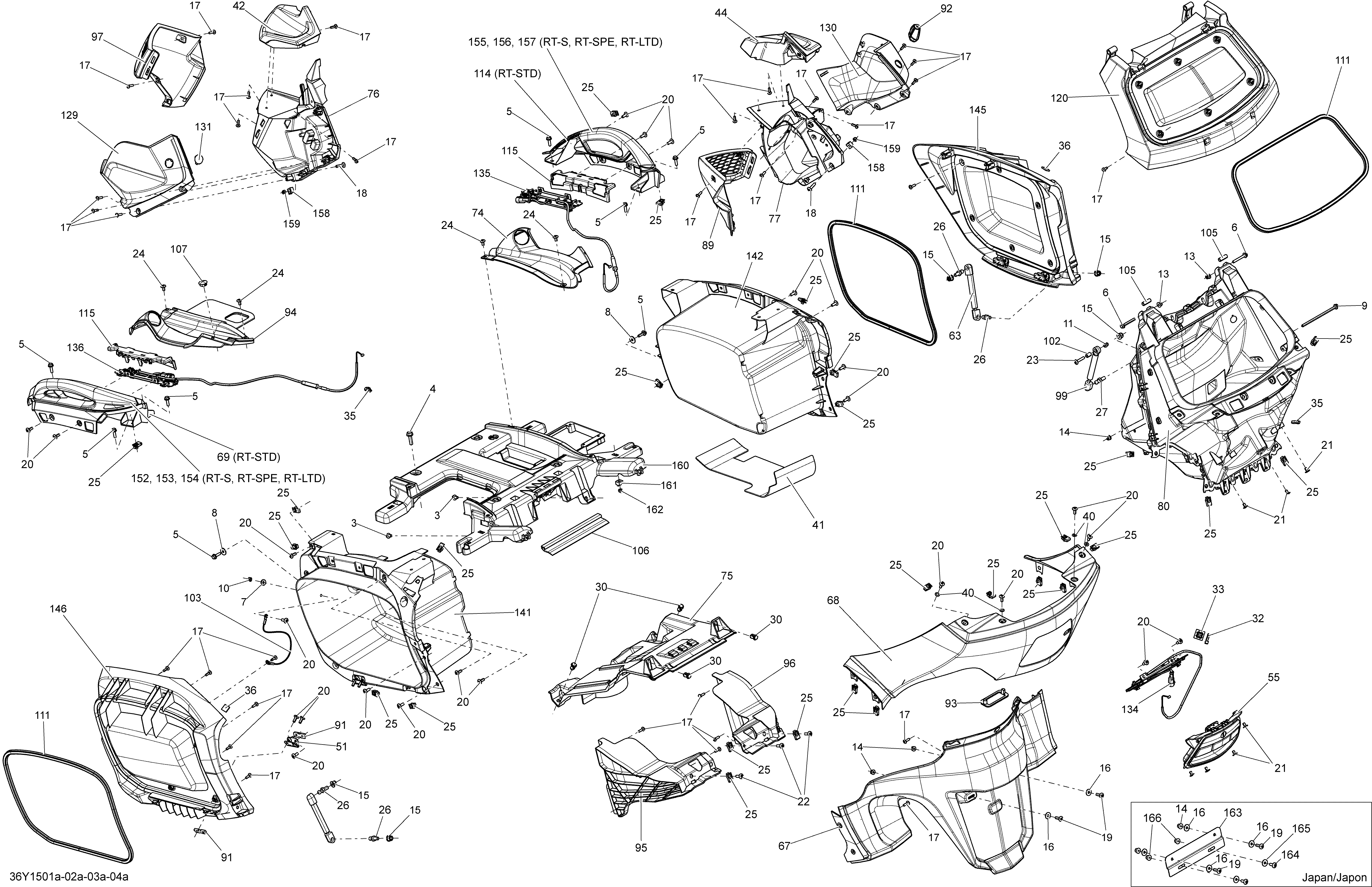

09- Luggages _36Y1501a для BRP Spyder RT SE6 - 2015
-
№АртикулНазвание
-
3207561234 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
4207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
-
5207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
6207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
-
7211200055 Flat Washer, Stainless/NeopreneFlat Washer, Stainless/Neoprene
-
8224061201 Flat WasherFlat Washer
-
9230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
10232061414 Hex. Nut M6Hex. Nut M6
-
11232361493 Domed Nut M6Domed Nut M6
-
13233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
14233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
15233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
16234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
17250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
18250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
19250000303 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
20250000348 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
21250000349 Torx Truss Screw M6 X 10Torx Truss Screw M6 X 10
-
22250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
23250000398 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
24250000454 Torx Screw M6 X 12Torx Screw M6 X 12
-
25250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
26250300016 Ball Head StudBall Head Stud
-
27250300039 Ball Head StudBall Head Stud
-
30293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
32293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
33293750040 Tie-rap MountTie-rap Mount
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36518327441 Lateral Console FoamLateral Console Foam
-
40705003207 Plastic WasherPlastic Washer
-
41705004173 Heat ShieldHeat Shield
-
42708000614 Deep Black LH Arm RestDeep Black LH Arm Rest
-
44708000615 Deep Black RH Arm RestDeep Black RH Arm Rest
-
51708300006 HingeHinge
-
55708301039 Main ControlMain Control
-
63708300011 Gaz ShockGaz Shock
-
67708301557 Rear FenderRear Fender
-
68708301564 Vegas White Rear PannelVegas White Rear Pannel
-
68708301571 Steel Black Rear PannelSteel Black Rear Pannel
-
69708300022 LH Passenger HandleLH Passenger Handle
-
74708300027 RH Handle PannelRH Handle Pannel
-
75708300028 Under Tail Rear Wheel CoverUnder Tail Rear Wheel Cover
-
76708301555 LH Sound BoxLH Sound Box
-
77708301556 RH Sound BoxRH Sound Box
-
80708300044 StorageStorage
-
89708300382 Deep Black RH GrillDeep Black RH Grill
-
91708300129 PlatePlate
-
92708300156 RH Radio Antena BaseRH Radio Antena Base
-
93708300177 PlatePlate
-
94708300209 LH Handle PannelLH Handle Pannel
-
95708300327 LH Inner FenderLH Inner Fender
-
96708300328 RH Inner FenderRH Inner Fender
-
97708300381 Deep Black LH GrillDeep Black LH Grill
-
99708300383 Gaz ShockGaz Shock
-
102708300384 SpacerSpacer
-
103708300385 Retainer CableRetainer Cable
-
105708300394 SpacerSpacer
-
106708300397 SealSeal
-
107708300405 CapCap
-
111293830151 SealSeal
-
114708300024 RH Passenger HandleRH Passenger Handle
-
115708300514 Latch ProtectorLatch Protector
-
120708300678 Inner CoverInner Cover
-
129708300708 Vegas White LH Arm CoverVegas White LH Arm Cover
-
129708301408 Steel Black LH Arm CoverSteel Black LH Arm Cover
-
130708300709 Vegas White RH Arm CoverVegas White RH Arm Cover
-
130708301409 Steel Black RH Arm CoverSteel Black RH Arm Cover
-
131708300716 Vegas White LH CapVegas White LH Cap
-
131708301412 Steel Black LH CapSteel Black LH Cap
-
134708301642 Center LatchCenter Latch
-
135708301641 RH LatchRH Latch
-
136708301640 LH LatchLH Latch
-
141708301016 LH CargoLH Cargo
-
142708301017 RH CargoRH Cargo
-
145708301022 RH Cover InteriorRH Cover Interior
-
146708301023 LH Cover InteriorLH Cover Interior
-
158269500725 Nut Housing Ass'y. Includes 158 to 159Nut Housing Ass'y. Includes 158 to 159
-
159232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
160708300781 Rear Support Ass'y. Includes 160 to 162Rear Support Ass'y. Includes 160 to 162
-
161269500725 Nut Housing Ass'y. Includes 161 to 162Nut Housing Ass'y. Includes 161 to 162
-
162232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
163708301523 Plate Support license. Model-JapanPlate Support license. Model-Japan
-
164250000348 Torx Truss Screw M6 X 16. Model-JapanTorx Truss Screw M6 X 16. Model-Japan
-
165234062600 Flat Washer M6, Stainless. Model-JapanFlat Washer M6, Stainless. Model-Japan
-
166233261494 Hex. Elastic Flanged Nut M6. Model-JapanHex. Elastic Flanged Nut M6. Model-Japan
