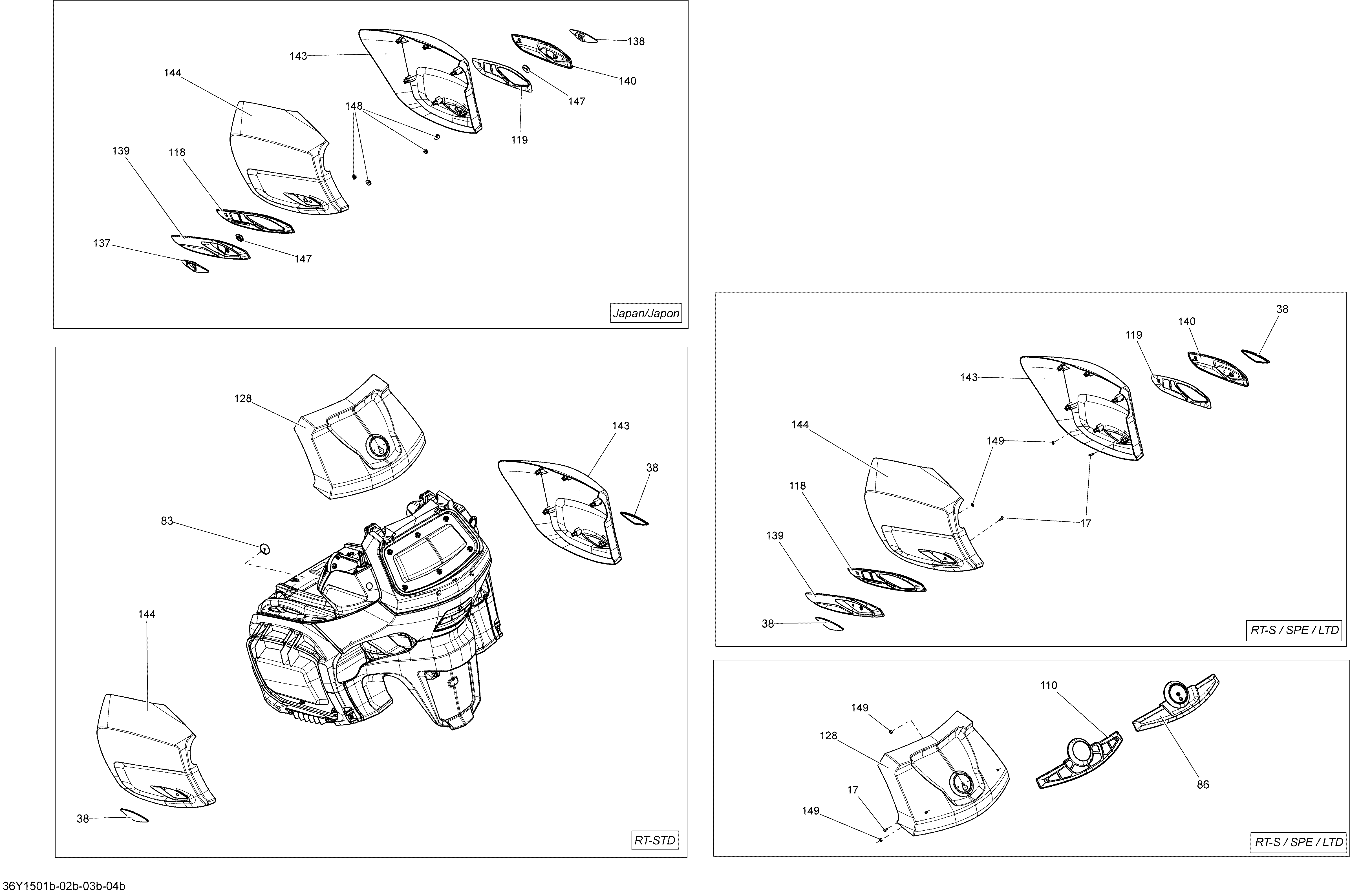

09- Luggages Cover_36Y1501b для BRP Spyder RT SE6 - 2015
-
№АртикулНазвание
-
17250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
38705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
38705003412 Red Lateral Reflector. Model-North AmericaRed Lateral Reflector. Model-North America
-
83708300049 Crontrol CapCrontrol Cap
-
118708300650 LH Moulding Trim. Model-JapanLH Moulding Trim. Model-Japan
-
119708300651 RH Moulding Trim. Model-JapanRH Moulding Trim. Model-Japan
-
128708301106 Vegas White Central Cover. Package-RT STDVegas White Central Cover. Package-RT STD
-
128708301393 Steel Black Central Cover. Package-RT STDSteel Black Central Cover. Package-RT STD
-
137708300979 LH Flash Support. Model-JapanLH Flash Support. Model-Japan
-
138708300980 RH Flash Support. Model-JapanRH Flash Support. Model-Japan
-
139708301014 Chrome LH Moulding. Package-RT STD JapanChrome LH Moulding. Package-RT STD Japan
-
140708301015 Chrome RH Moulding. Package-RT STD JapanChrome RH Moulding. Package-RT STD Japan
-
143708300692 Vegas White RH Cover. Model-AustraliaVegas White RH Cover. Model-Australia
-
143708300692 Vegas White RH Cover. Model-EuropeVegas White RH Cover. Model-Europe
-
143708301112 Vegas White RH Cover. Package-RT STDVegas White RH Cover. Package-RT STD
-
143708301191 Vegas White RH Cover. Model-JapanVegas White RH Cover. Model-Japan
-
143708301397 Steel Black RH Cover. Model-AustraliaSteel Black RH Cover. Model-Australia
-
143708301397 Steel Black RH Cover. Model-EuropeSteel Black RH Cover. Model-Europe
-
143708301397 Steel Black RH Cover. Package-RT STDSteel Black RH Cover. Package-RT STD
-
143708301401 Steel Black RH Cover. Model-JapanSteel Black RH Cover. Model-Japan
-
144708300693 Vegas White LH Cover. Model-EuropeVegas White LH Cover. Model-Europe
-
144708300693 Vegas White LH Cover. Model-AustraliaVegas White LH Cover. Model-Australia
-
144708301111 Vegas White LH Cover. Package-RT STDVegas White LH Cover. Package-RT STD
-
144708301190 Vegas White LH Cover. Model-JapanVegas White LH Cover. Model-Japan
-
144708301396 Steel Back LH Cover. Package-RT STDSteel Back LH Cover. Package-RT STD
-
144708301396 Steel Back LH Cover. Model-EuropeSteel Back LH Cover. Model-Europe
-
144708301396 Steel Back LH Cover. Model-AustraliaSteel Back LH Cover. Model-Australia
-
144708301400 Steel Back LH Cover. Model-JapanSteel Back LH Cover. Model-Japan
-
147708301024 Retaining Washer. Model-JapanRetaining Washer. Model-Japan
-
148708301025 Grommet. Model-JapanGrommet. Model-Japan
-
149250100163 Pressure Nut. Model-JapanPressure Nut. Model-Japan
