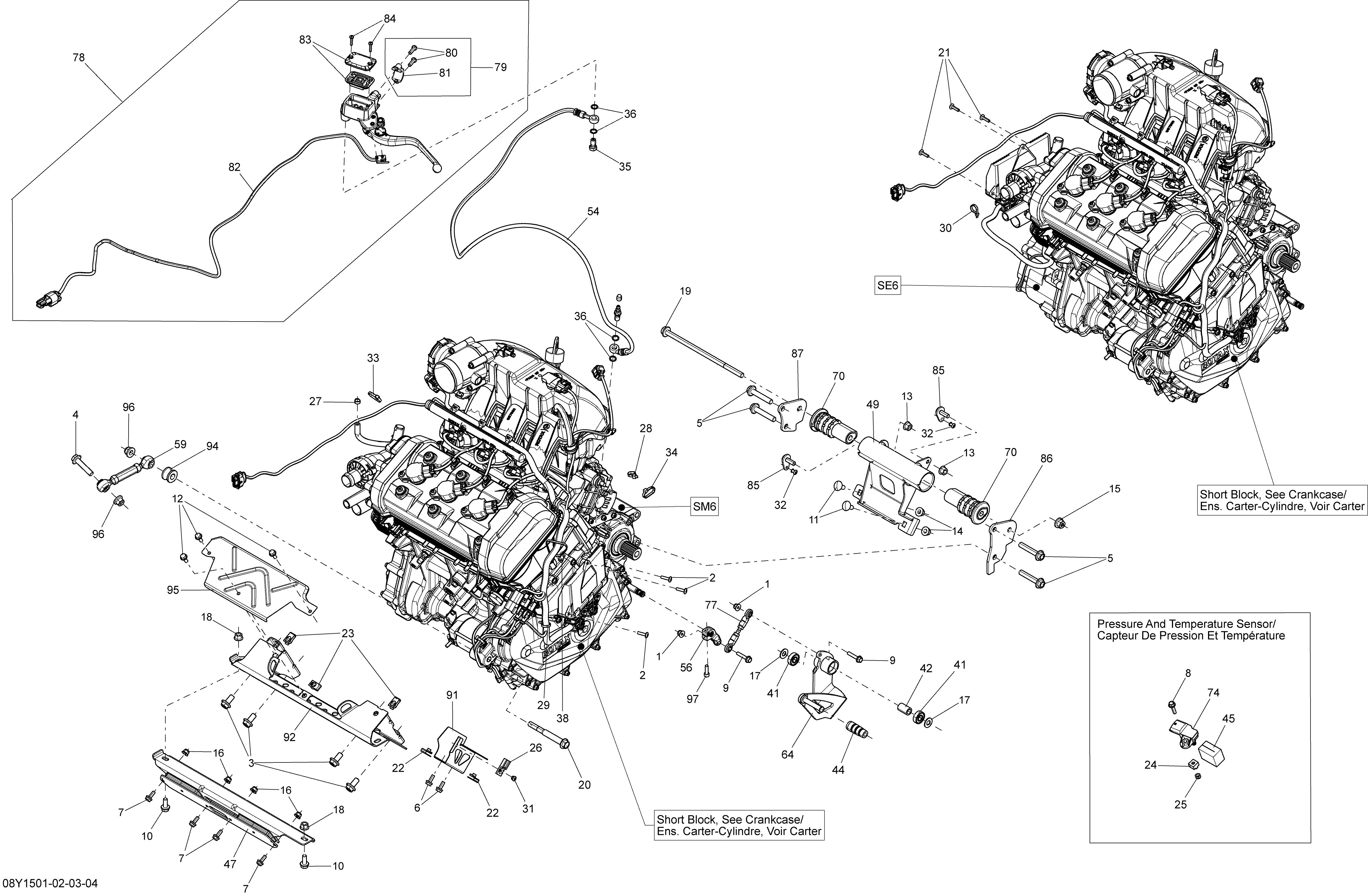

01- Engine SM6_08Y1502 для BRP Spyder RTS SM6 - 2015
-
№АртикулНазвание
-
1233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
3207502044 Flanged Hex Screw M10 X 20Flanged Hex Screw M10 X 20
-
4207504546 Hex. Flanged Screw, M10 X 45 Scotch GripHex. Flanged Screw, M10 X 45 Scotch Grip
-
5207505544 Hex. Flanged Screw M10 X 55, Scotch GripHex. Flanged Screw M10 X 55, Scotch Grip
-
6207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
7207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
8207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
11207782046 Carriage Bolt M8 X 20Carriage Bolt M8 X 20
-
12207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
13233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
14233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
15233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17234001410 Flat Washer 10 mmFlat Washer 10 mm
-
18233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
19250000507 Flanged Hex Screw M10 X 220Flanged Hex Screw M10 X 220
-
20230500046 Hex. Screw M10 X 100, Scotch GripHex. Screw M10 X 100, Scotch Grip
-
22250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
23250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
24269500725 Nut Housing Ass'y. Includes 24 to 25Nut Housing Ass'y. Includes 24 to 25
-
25232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
26270000141 ClipClip
-
27293650044 Oetiker ClampOetiker Clamp
-
28293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
35414920500 Banjo BoltBanjo Bolt
-
36414920600 WasherWasher
-
38515175220 Tie RapTie Rap
-
41705600458 BearingBearing
-
42705600541 BushingBushing
-
44707000456 End Clutch PedalEnd Clutch Pedal
-
45707000586 FilterFilter
-
47707000876 Rubber MountRubber Mount
-
49707000877 Frame EtensionFrame Etension
-
54707000879 HoseHose
-
56707000926 Shifter ArmShifter Arm
-
59707000959 Connecting RodConnecting Rod
-
64707001421 Carbon Black LeverCarbon Black Lever
-
70707000973 Rubber MountRubber Mount
-
74707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
77707001103 Double Ball JointDouble Ball Joint
-
78707000972 Master Cylinder Ass'y. Includes 78 to 84Master Cylinder Ass'y. Includes 78 to 84
-
79719000049 Clamps KitClamps Kit
-
80250000433 Torx Screw M6 X 20Torx Screw M6 X 20
-
81219800081 ClampClamp
-
82219800297 MicroswitchMicroswitch
-
83219800096 Cap SetCap Set
-
84415129356 Screw M4 X 20Screw M4 X 20
-
85707001292 AttachAttach
-
86707001293 LH Engine SupportLH Engine Support
-
87707001294 RH Engine SupportRH Engine Support
-
91707001353 Connector SupportConnector Support
-
92707001561 Front Engine SupportFront Engine Support
-
94707001423 SpacerSpacer
-
95707601057 Upper Heat DeflectorUpper Heat Deflector
-
96233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
97514054626 Socket Head Screw M6 X 22, Scotch GripSocket Head Screw M6 X 22, Scotch Grip
