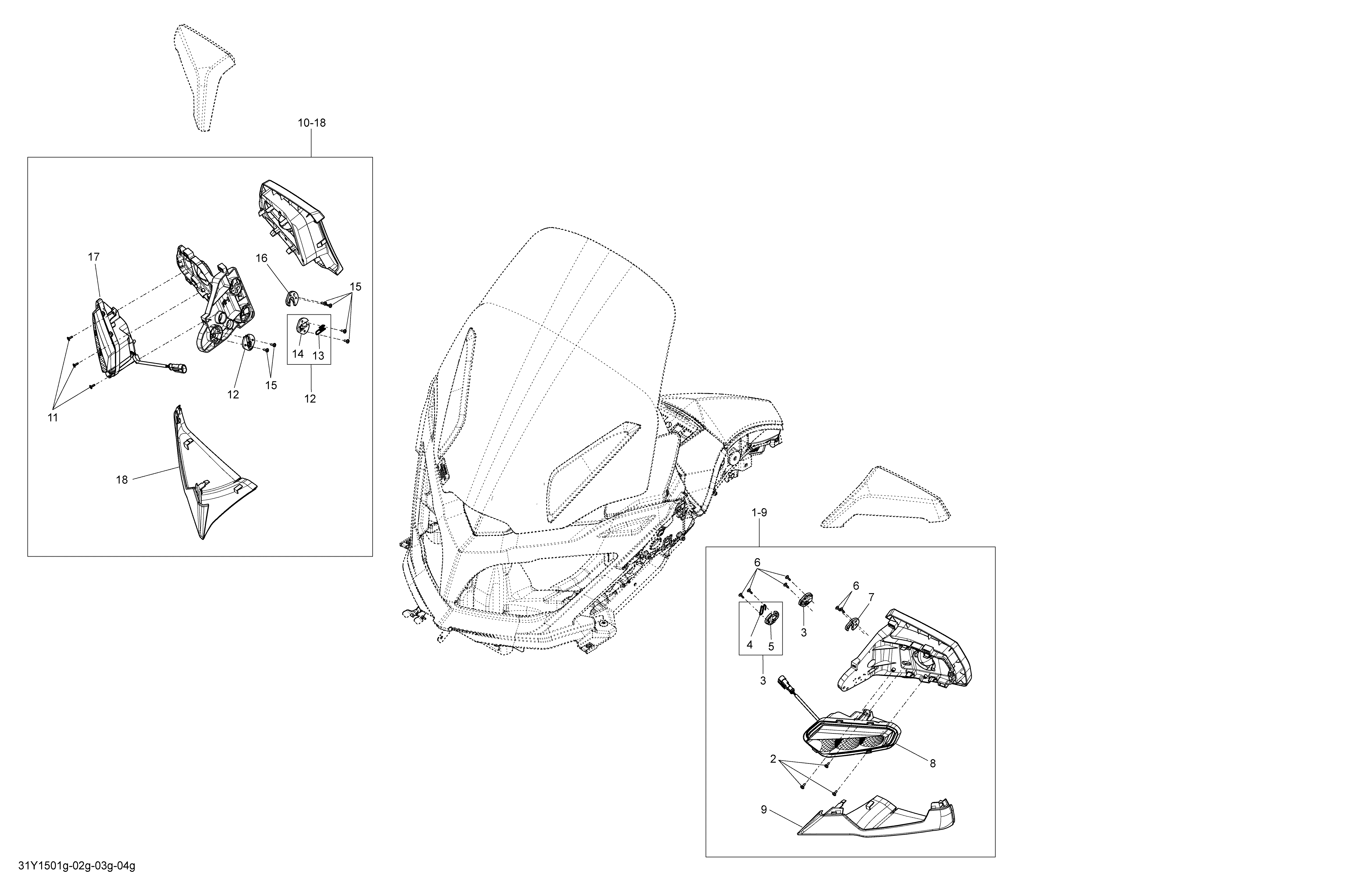

09- Body And Accessories Mirror_31Y1502g для BRP Spyder RTS SM6 - 2015
-
№АртикулНазвание
-
1705004687 LH Mirror Ass'y. Includes 1 to 9LH Mirror Ass'y. Includes 1 to 9
-
2219800118 ScrewScrew
-
3219800156 Housing. Includes 3 to 5Housing. Includes 3 to 5
-
4705006661 SpringSpring
-
5705006849 Spring HousingSpring Housing
-
6219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
7219800158 HousingHousing
-
8710001510 LH Front Flasher UnitLH Front Flasher Unit
-
9705003148 LH Lower Mirror ShellLH Lower Mirror Shell
-
10705004687 LH Mirror Ass'y. Includes 10 to 18LH Mirror Ass'y. Includes 10 to 18
-
11219800118 ScrewScrew
-
12219800156 Housing. Includes 12 to 14Housing. Includes 12 to 14
-
13705006661 SpringSpring
-
14705006849 Spring HousingSpring Housing
-
15219800157 Screw 2.9 X 12.5Screw 2.9 X 12.5
-
16219800158 HousingHousing
-
17710001511 RH Front Flasher UnitRH Front Flasher Unit
-
18705003159 RH Lower Mirror ShellRH Lower Mirror Shell
