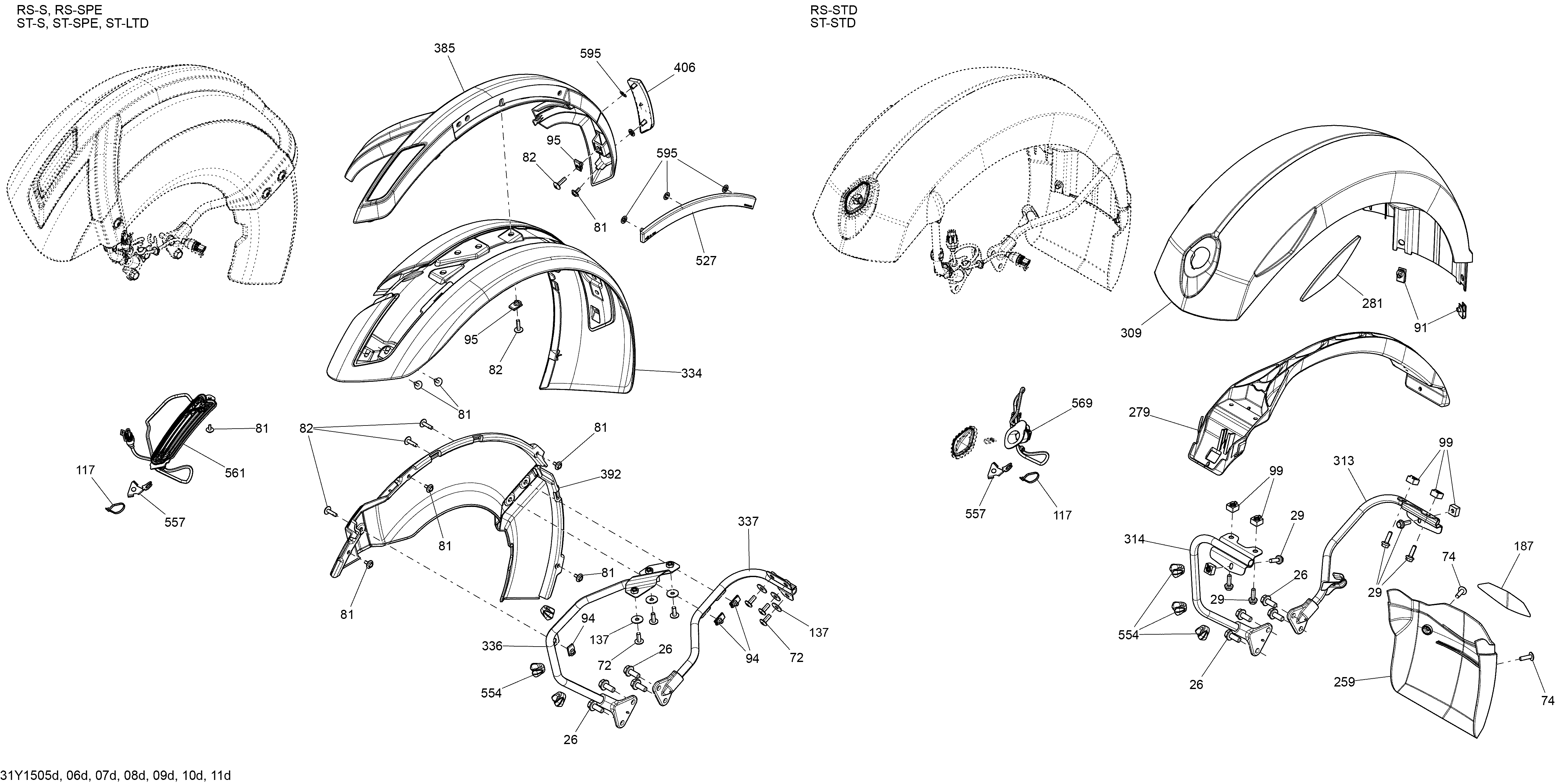

09- Body And Accessories Front Fender_31Y1505d для BRP Spyder ST SM5 - 2015
-
№АртикулНазвание
-
26207582034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
29207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
74250000446 Torx Screw Scotch Grip, M6 X 20Torx Screw Scotch Grip, M6 X 20
-
91250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
99269500725 Nut Housing Ass'yNut Housing Ass'y
-
117293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
187704901160 Reflective StripeReflective Stripe
-
259705001767 LH MudguardLH Mudguard
-
259705001768 RH MudguardRH Mudguard
-
279705002389 Central Front Fender SupportCentral Front Fender Support
-
281705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
309705007994 Steel Black LH Front FenderSteel Black LH Front Fender
-
309705007996 Steel Black RH Front FenderSteel Black RH Front Fender
-
313705008122 LH Painted Fender Rear SupportLH Painted Fender Rear Support
-
313705008123 RH Painted Fender Rear SupportRH Painted Fender Rear Support
-
314705003456 LH Fender Front SupportLH Fender Front Support
-
314705003457 RH Fender Front SupportRH Fender Front Support
-
554710001452 Wire BracketWire Bracket
-
557710002018 RH Wire SupportRH Wire Support
-
557710002019 LH Wire SupportLH Wire Support
-
569710003295 Position LightPosition Light
