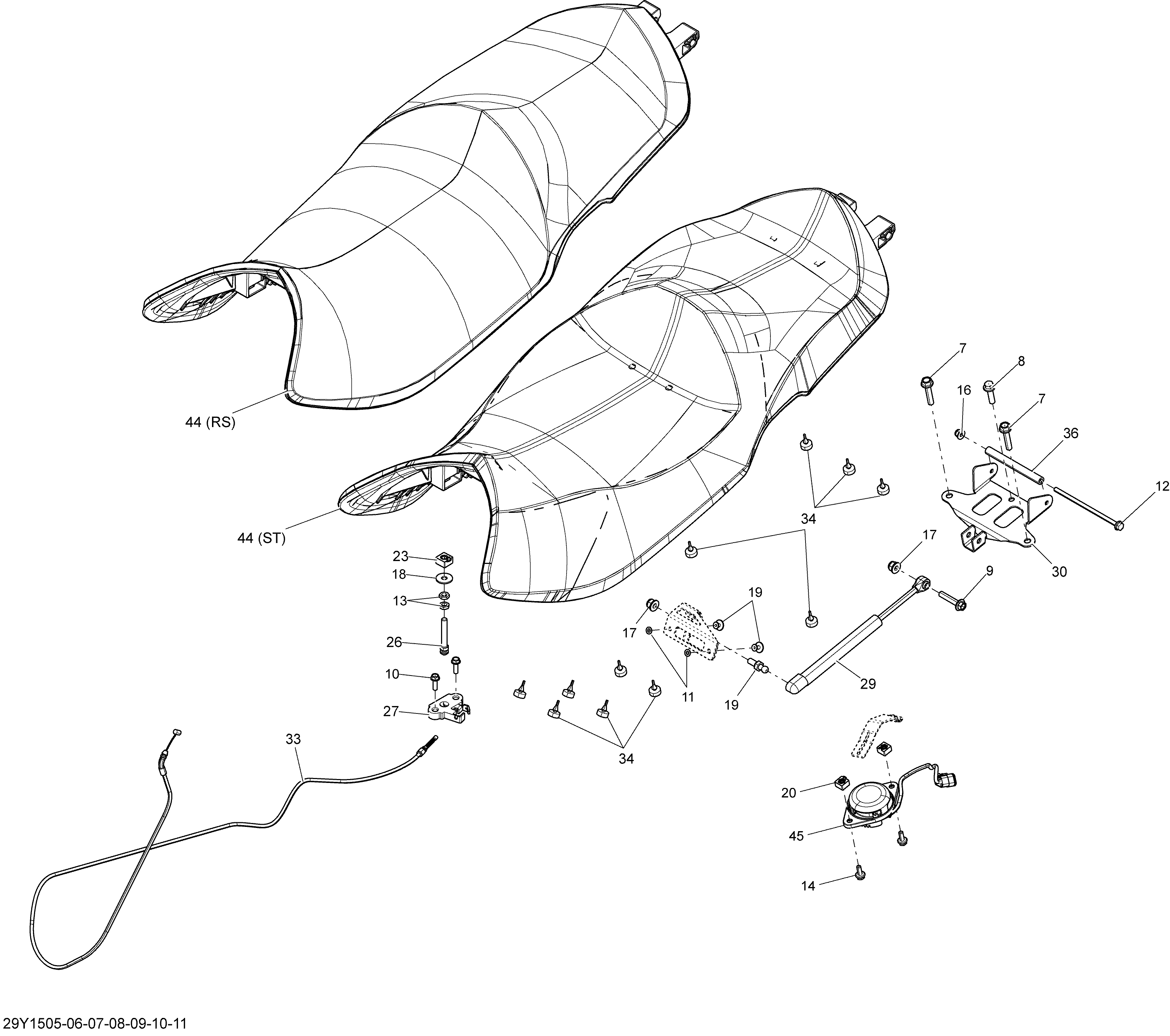

09- Seat _29Y1505 для BRP Spyder ST SM5 - 2015
-
№АртикулНазвание
-
7207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
8207683034 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
9207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
10210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
11211200035 Flat WasherFlat Washer
-
12230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
13232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
14207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
18234082410 Flat Washer 8 mmFlat Washer 8 mm
-
19250300039 Ball Head StudBall Head Stud
-
20269500725 Nut Housing Ass'yNut Housing Ass'y
-
23269501943 Elastic Nut Housing M8Elastic Nut Housing M8
-
24390409600 Pop Rivet 3/16''Pop Rivet 3/16''
-
26705002223 LugLug
-
27705007379 LatchLatch
-
29708000479 Gaz ShockGaz Shock
-
30708001770 Pivot PlatePivot Plate
-
33708001743 Seat CableSeat Cable
-
34708000759 Rubber StopperRubber Stopper
-
36708000824 Spacer BushingSpacer Bushing
-
44708001621 Seat Ass'ySeat Ass'y
-
45710001346 Passenger Detection SwitchPassenger Detection Switch
