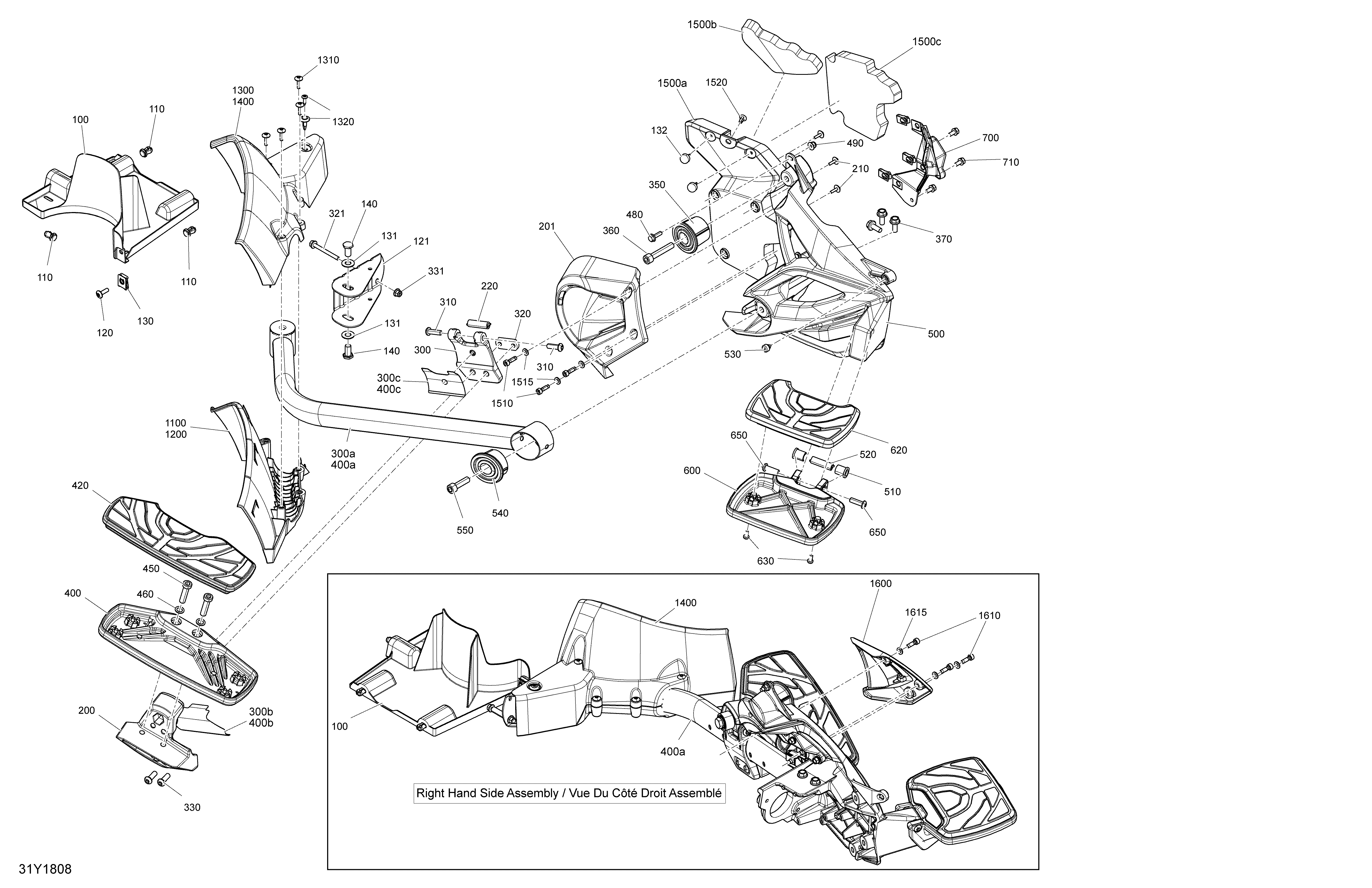

09- Body And Accessories - Footrest LTD для BRP F3 LTD SE6 - 2018
-
№АртикулНазвание
-
100705007785 LH Front Skid PlateLH Front Skid Plate
-
100705007786 RH Front Skid PlateRH Front Skid Plate
-
110293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
120250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
121705008950 Tube SupportTube Support
-
130250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
131506152582 WasherWasher
-
132708000759 Rubber StopperRubber Stopper
-
140250000719 Hex. Cap Screw Full ThreadHex. Cap Screw Full Thread
-
200705009466 Carbon Black LH Slider OutsideCarbon Black LH Slider Outside
-
200705009463 Carbon Black RH Slider OutsideCarbon Black RH Slider Outside
-
201705007780 LH Engine FairingLH Engine Fairing
-
210250000725 Screw M4 X 16Screw M4 X 16
-
220705013628 Pivot PinPivot Pin
-
300705013117 Black, LH Slider ClampBlack, LH Slider Clamp
-
300705013120 Black, RH Slider ClampBlack, RH Slider Clamp
-
300a705008955 Carbon Black - LH Footrest SupportCarbon Black - LH Footrest Support
-
300b705009452 LH Frame Protector OutsideLH Frame Protector Outside
-
300c705009025 LH Frame Protector InsideLH Frame Protector Inside
-
310250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
320705008553 Back FlangeBack Flange
-
321250000778 Screw-Hex.Flange M6 X 60Screw-Hex.Flange M6 X 60
-
330250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
331233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
350705010202 Pivot CapPivot Cap
-
360205505560 Socket Head ScrewSocket Head Screw
-
370207582054 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
400705009454 Foot Board LhFoot Board Lh
-
400705009455 Foot Board RhFoot Board Rh
-
400a705008954 RH Carbon Black Footrest SupportRH Carbon Black Footrest Support
-
400b705009453 Rh ProtectorRh Protector
-
400c705009023 RH Frame Protector InsideRH Frame Protector Inside
-
420705009229 Lh PadLh Pad
-
420705009230 Rh PadRh Pad
-
450250000997 Thin Socket Screw, Scotch Grip, M10Thin Socket Screw, Scotch Grip, M10
-
460250200105 Stainless Flat Washer, 10 mmStainless Flat Washer, 10 mm
-
480207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
490233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
500705008276 LH Bright Chrome Rear Footrest Support. ChromeLH Bright Chrome Rear Footrest Support. Chrome
-
500705009401 LH Carbon Black Rear Footrest Support. BlackLH Carbon Black Rear Footrest Support. Black
-
500705008277 RH Bright Chrome Rear Footrest Support. ChromeRH Bright Chrome Rear Footrest Support. Chrome
-
500705009402 RH Carbon Black Rear Footrest Support. BlackRH Carbon Black Rear Footrest Support. Black
-
510705008166 Spacer BushingSpacer Bushing
-
520705013628 Pivot PinPivot Pin
-
530293830005 Rubber BumperRubber Bumper
-
540705010203 Pivot CapPivot Cap
-
550244003560 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
600705010759 Carbon Black - RH Foot BoardCarbon Black - RH Foot Board
-
620705009234 Foot Board Pad, PassengerFoot Board Pad, Passenger
-
630250000099 Allen Plastite Screw #12Allen Plastite Screw #12
-
650250000830 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
700705008961 LH Fairing SupportLH Fairing Support
-
700705008962 RH Fairing SupportRH Fairing Support
-
710210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
1100705007794 LH DeflectorLH Deflector
-
1200705007795 RH DeflectorRH Deflector
-
1300705009027 LH ShellLH Shell
-
1310250000586 Torx Truss M5 X 20Torx Truss M5 X 20
-
1320414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
1400705009029 RH ShellRH Shell
-
1500a705009144 LH Acoustic FairingLH Acoustic Fairing
-
1500b705009344 Acoustic FoamAcoustic Foam
-
1500c705009162 Acoustic FoamAcoustic Foam
-
1510205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1515234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
1520293730024 Dart, FastexDart, Fastex
-
1600705007781 RH Engine FairingRH Engine Fairing
-
1610205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1615234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
