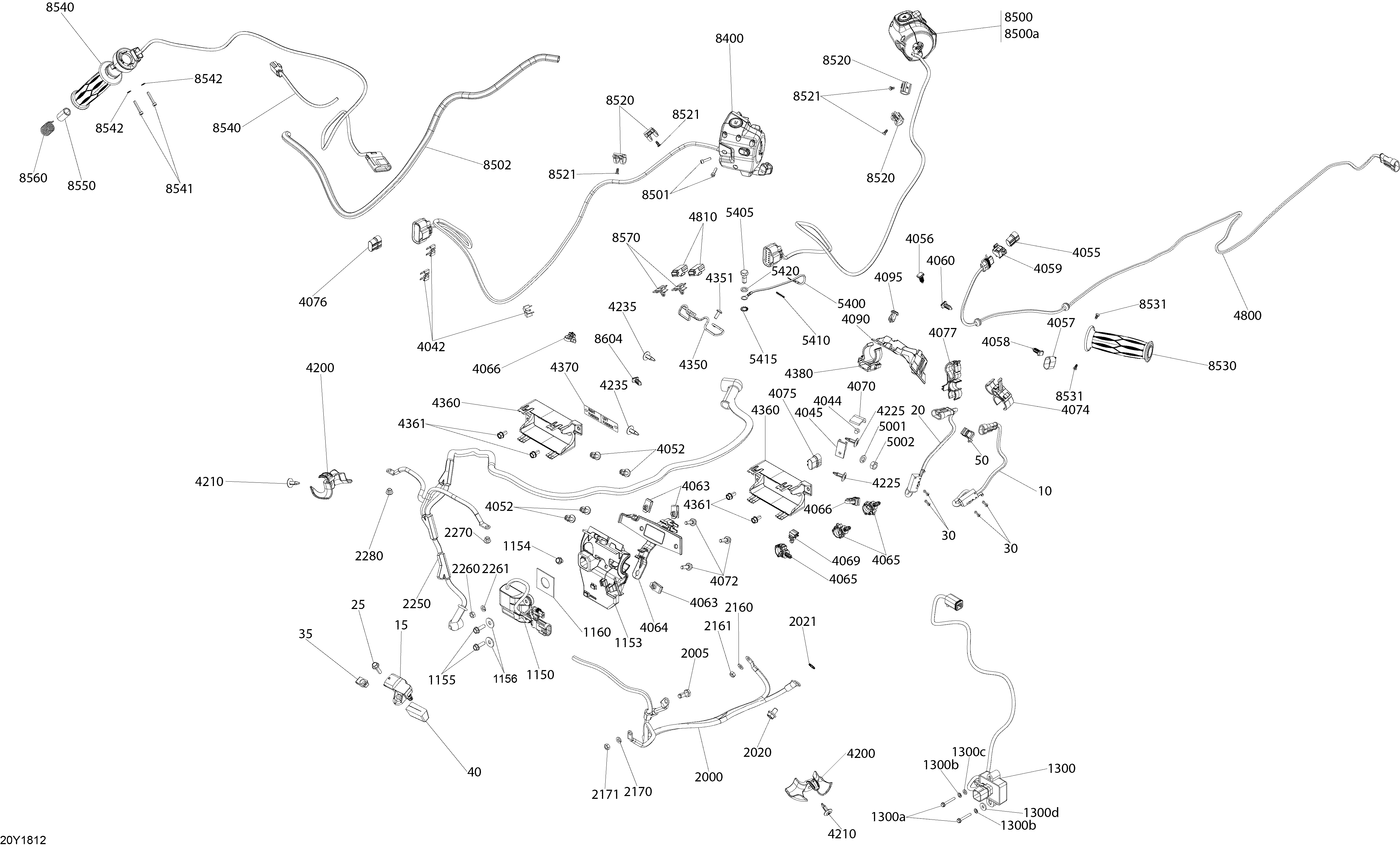

10- Electrical Accesories F3 - LTD для BRP F3 LTD SE6 - 2018
-
№АртикулНазвание
-
10710003412 Brake Light Switch Ass'yBrake Light Switch Ass'y
-
10707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
20710001379 Brake Pressure Switch Ass'yBrake Pressure Switch Ass'y
-
20207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
30293150150 Pop RivetPop Rivet
-
30250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
40707000586 FilterFilter
-
50710002899 Clip Tie-RapClip Tie-Rap
-
1150710004916 Dess ModuleDess Module
-
1153710004308 Wire SupportWire Support
-
1154210261050 Screw-Forming Hex.Hd.Fl.Din.7500DScrew-Forming Hex.Hd.Fl.Din.7500D
-
1155210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
1156234062410 Flat Washer 6 mmFlat Washer 6 mm
-
1160293830091 Rubber BumperRubber Bumper
-
1300710006092 CCK Module Ass'y. AustraliaCCK Module Ass'y. Australia
-
2000710005322 Starter CableStarter Cable
-
2005207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
2020207581244 Hex. Flanged Screw M8 X 12, Scotch GripHex. Flanged Screw M8 X 12, Scotch Grip
-
2021234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
2160234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
2161232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
2170234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2171232061600 Hex. Nut M6Hex. Nut M6
-
2250710005026 Pos CablePos Cable
-
2260232061600 Hex. Nut M6Hex. Nut M6
-
2261234161601 Lock Washer Helical M6Lock Washer Helical M6
-
2270293150173 Rivet 6,4 mmRivet 6,4 mm
-
2280293150173 Rivet 6,4 mmRivet 6,4 mm
-
4042710001222 LockLock
-
4044390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
4045270000141 ClipClip
-
4052293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4065293750083 Support CableSupport Cable
-
4066293750058 Locking Tie RapLocking Tie Rap
-
4069293750063 Clip Tie-RapClip Tie-Rap
-
4070709000401 Rubber PadRubber Pad
-
4074710004613 SupportSupport
-
4075710004901 Connector Plug. North AmericaConnector Plug. North America
-
4076710004901 Connector Plug. North AmericaConnector Plug. North America
-
4077710004669 Wire SupportWire Support
-
4090710004794 Harness HolderHarness Holder
-
4095293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
4200710004931 Harness HolderHarness Holder
-
4210414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4225414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4235414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
4350709401619 Wire GuideWire Guide
-
4351250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4360710004472 Fuse Holder SupportFuse Holder Support
-
4361210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4370710003077 R/L Label DecalR/L Label Decal
-
4380710004299 Cable SupportCable Support
-
5001234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
5002232081414 Hex. Nut M8Hex. Nut M8
-
5400710005134 Fuel Tank CableFuel Tank Cable
-
5405207382060 Hex. Screw M8 X 20, Scotch GripHex. Screw M8 X 20, Scotch Grip
-
5410250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
5415234481608 Serrated Lock Washer 8 mmSerrated Lock Washer 8 mm
-
5420250200111 WasherWasher
-
8400710005427 Housing-SwitchHousing-Switch
-
8500710004583 Housing-Switch RH. Includes 8500 to 8500aHousing-Switch RH. Includes 8500 to 8500a
-
8500a710005158 Housing SwitchHousing Switch
-
8501250000494 Socket Screw, M4 X 16 Scotch GripSocket Screw, M4 X 16 Scotch Grip
-
8502710004231 Braided SleeveBraided Sleeve
-
8520709401804 Wire GuideWire Guide
-
8521250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
8530709400625 Heating Handle GripHeating Handle Grip
-
8531250000453 Torx Cutting Screw, M4 X 10Torx Cutting Screw, M4 X 10
-
8540709400929 Throttle Heating GripThrottle Heating Grip
-
8541205042594 Socket Screw, M4 X 25Socket Screw, M4 X 25
-
8542234040600 Flat Washer 4 mmFlat Washer 4 mm
-
8550709401801 BushingBushing
-
8560709401937 SpringSpring
-
8570515175283 Housing SupportHousing Support
-
8604710002033 HolderHolder
-
1300a250000955 Hex. Screw Forming M4 X 30Hex. Screw Forming M4 X 30
-
1300b211100002 Push NutPush Nut
-
1300c213200016 Flat Washer, EmhartFlat Washer, Emhart
-
1300d234052400 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
