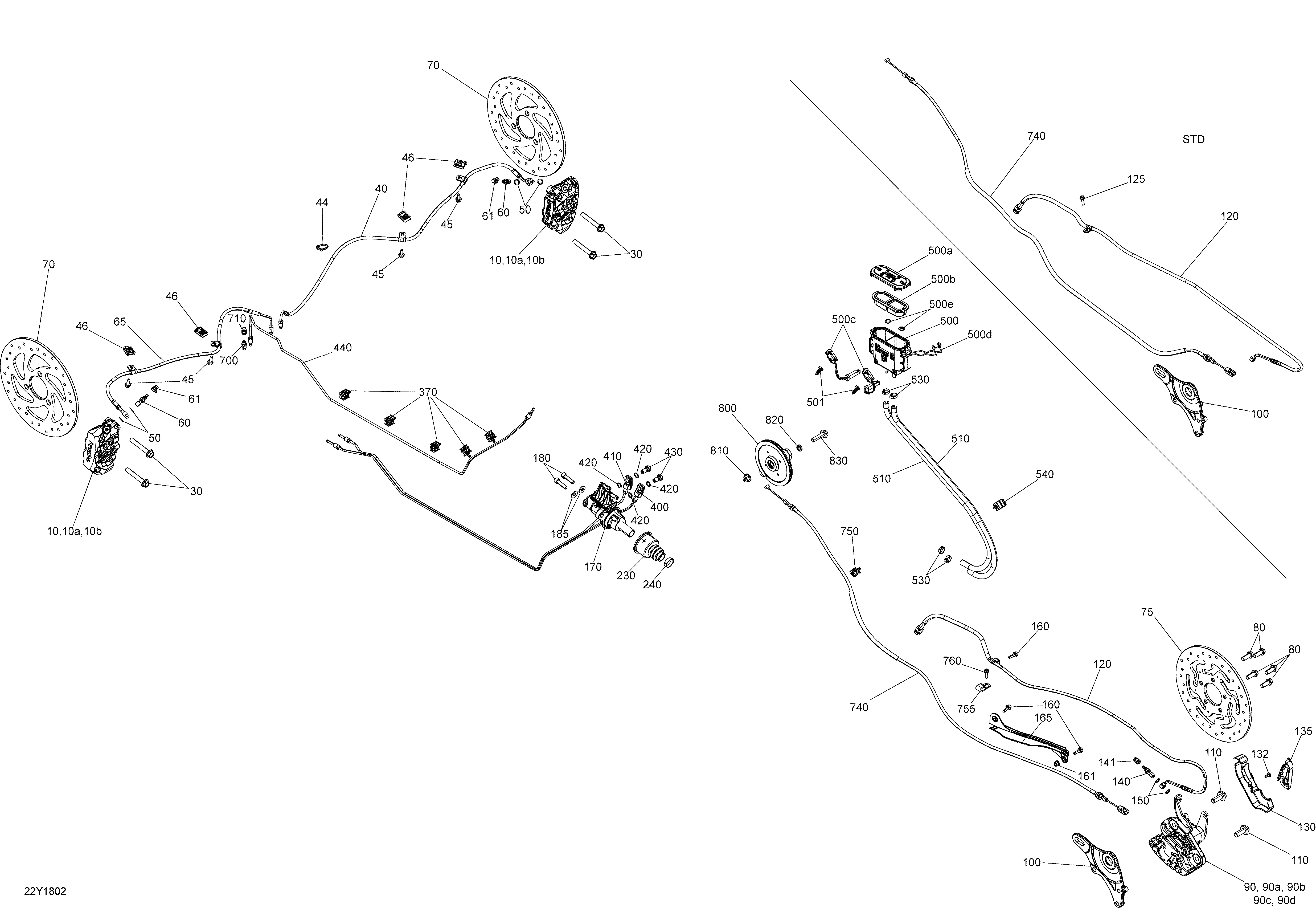

06- Brakes для BRP F3 STD SE6 - 2018
-
№АртикулНазвание
-
10705600987 LH Front Caliper. Includes 10 to 10bLH Front Caliper. Includes 10 to 10b
-
10705600988 RH Front Caliper. Includes 10 to 10bRH Front Caliper. Includes 10 to 10b
-
10a219800237 Brake Pad KitBrake Pad Kit
-
10b219800238 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
30207506556 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
40705601254 RH Front Hose. Includes 40 to 40aRH Front Hose. Includes 40 to 40a
-
40a715900250 Hose Clip. Not ShownHose Clip. Not Shown
-
44293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
45207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
46250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
50414920600 WasherWasher
-
60705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
61705601190 Bleeder Bolt CapBleeder Bolt Cap
-
65705601471 -LH Front Hose. Includes 65 to 65a-LH Front Hose. Includes 65 to 65a
-
65a715900250 Hose Clip. Not ShownHose Clip. Not Shown
-
70705601631 Front Brake DiskFront Brake Disk
-
75705601632 Rear Brake DiskRear Brake Disk
-
80250000562 Hex Flange Screw M10 X 25Hex Flange Screw M10 X 25
-
90705600989 Rear Caliper. Includes 90 to 90dRear Caliper. Includes 90 to 90d
-
90A219800239 Brake Pad KitBrake Pad Kit
-
90b219800240 Spring/Pin/Clip KitSpring/Pin/Clip Kit
-
90c219800241 Rear Cable Support KitRear Cable Support Kit
-
90d219800242 Rear Dust CoverRear Dust Cover
-
100705601450 Rear Brake Caliper SupportRear Brake Caliper Support
-
110207523056 Hex. Flanged Screw M12 X 30, Scotch GripHex. Flanged Screw M12 X 30, Scotch Grip
-
120705601500 Brake LineBrake Line
-
125207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
130705601400 Caliper Cap. Except AustraliaCaliper Cap. Except Australia
-
132250000821 Torx Screw 24 X 0.5. Except AustraliaTorx Screw 24 X 0.5. Except Australia
-
135705601406 Caliper Cap. Except AustraliaCaliper Cap. Except Australia
-
140705601201 Banjo Bolt/ BleederBanjo Bolt/ Bleeder
-
141705601190 Bleeder Bolt CapBleeder Bolt Cap
-
150414920600 WasherWasher
-
170705600722 Tandem Cylinder MasterTandem Cylinder Master
-
180205583087 Allen Screw M8 X 30Allen Screw M8 X 30
-
185506151245 WasherWasher
-
230705600716 BellowBellow
-
240509000442 Oetiker Gear ClampOetiker Gear Clamp
-
370705601513 Rigid Tube SupportRigid Tube Support
-
400705601157 Tandem Rigid TubeTandem Rigid Tube
-
410705601158 Tandem Rigid TubeTandem Rigid Tube
-
420414920600 WasherWasher
-
430507032551 Banjo BoltBanjo Bolt
-
440705601159 Rear Brake Rigid TubeRear Brake Rigid Tube
-
500705601526 Master Cylinder Reservoir. Includes 500 to 500eMaster Cylinder Reservoir. Includes 500 to 500e
-
500a219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
500b219800350 Diaphragm Cover AssemblyDiaphragm Cover Assembly
-
500c705601073 Oil Level SensorOil Level Sensor
-
500d705601294 Spindle LockSpindle Lock
-
500e211100002 Push NutPush Nut
-
501710002033 HolderHolder
-
502415129507 Hose. Not ShownHose. Not Shown
-
510705601236 Formed HoseFormed Hose
-
530293650047 Crimp ClampCrimp Clamp
-
540709000571 Hose SupportHose Support
-
700705600502 Bleeder ScrewBleeder Screw
-
710705601190 Bleeder Bolt CapBleeder Bolt Cap
-
740707001375 Parking Brake CableParking Brake Cable
-
750293750083 Support CableSupport Cable
-
755515175507 ClipClip
-
760210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
800705600768 Front Pulley Cable. Includes 800 to 800aFront Pulley Cable. Includes 800 to 800a
-
800a705600458 Bearing. Not ShownBearing. Not Shown
-
810233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
820293900087 BushingBushing
-
830207604054 Hex. Flanged Screw M10 X 40Hex. Flanged Screw M10 X 40
