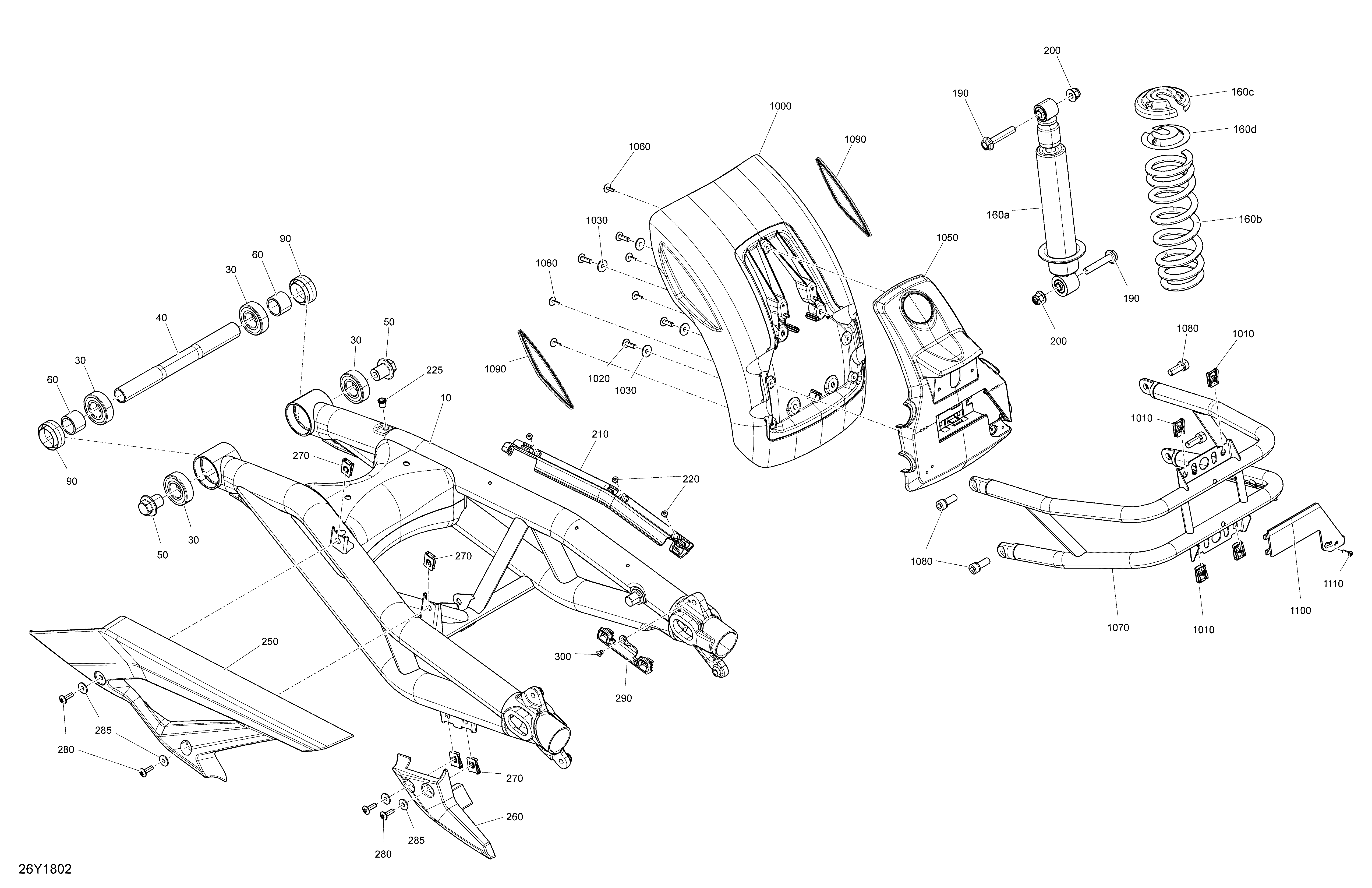

08- Rear Suspension для BRP F3 STD SE6 - 2018
-
№АртикулНазвание
-
10706002313 Black SwingarmBlack Swingarm
-
30293350115 Ball BearingBall Bearing
-
40706001182 Swing Arm AxleSwing Arm Axle
-
50706001579 Bolt M20Bolt M20
-
60706001152 SpacerSpacer
-
90706001366 SleeveSleeve
-
160a706001703 ShockShock
-
160b706002113 SpringSpring
-
160c503193781 Spring StopperSpring Stopper
-
160d503193782 CapCap
-
190207605554 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
200233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
210706202131 Cable CapCable Cap
-
220293150102 Rivet 3/16''Rivet 3/16''
-
225293450275 InsertInsert
-
250705010380 Upper Belt GuardUpper Belt Guard
-
260705008756 Lower Belt GuardLower Belt Guard
-
270250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
280250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
285234062670 Flat Washer, StainlessFlat Washer, Stainless
-
290706202264 Cable CapCable Cap
-
300293150102 Rivet 3/16''Rivet 3/16''
-
1000705011661 Rear FenderRear Fender
-
1010250100169 Panel Nut M6 X 1Panel Nut M6 X 1
-
1020250000705 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1030250200082 Flat WasherFlat Washer
-
1050705008241 Rear Fender Moulding. All Except North AmericaRear Fender Moulding. All Except North America
-
1050705009197 Rear Fender Moulding. North AmericaRear Fender Moulding. North America
-
1060250000725 Screw M4 X 16Screw M4 X 16
-
1070705008249 Carbon Black Rear Fender SupportCarbon Black Rear Fender Support
-
1080205502560 Allen Screw S.GRIP M10 X 25Allen Screw S.GRIP M10 X 25
-
1090705002423 Lateral Reflector, Amber. All Except North AmericaLateral Reflector, Amber. All Except North America
-
1090705003412 Lateral Reflector, Red. North AmericaLateral Reflector, Red. North America
-
1100705008990 Cover MouldingCover Moulding
-
1110250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
