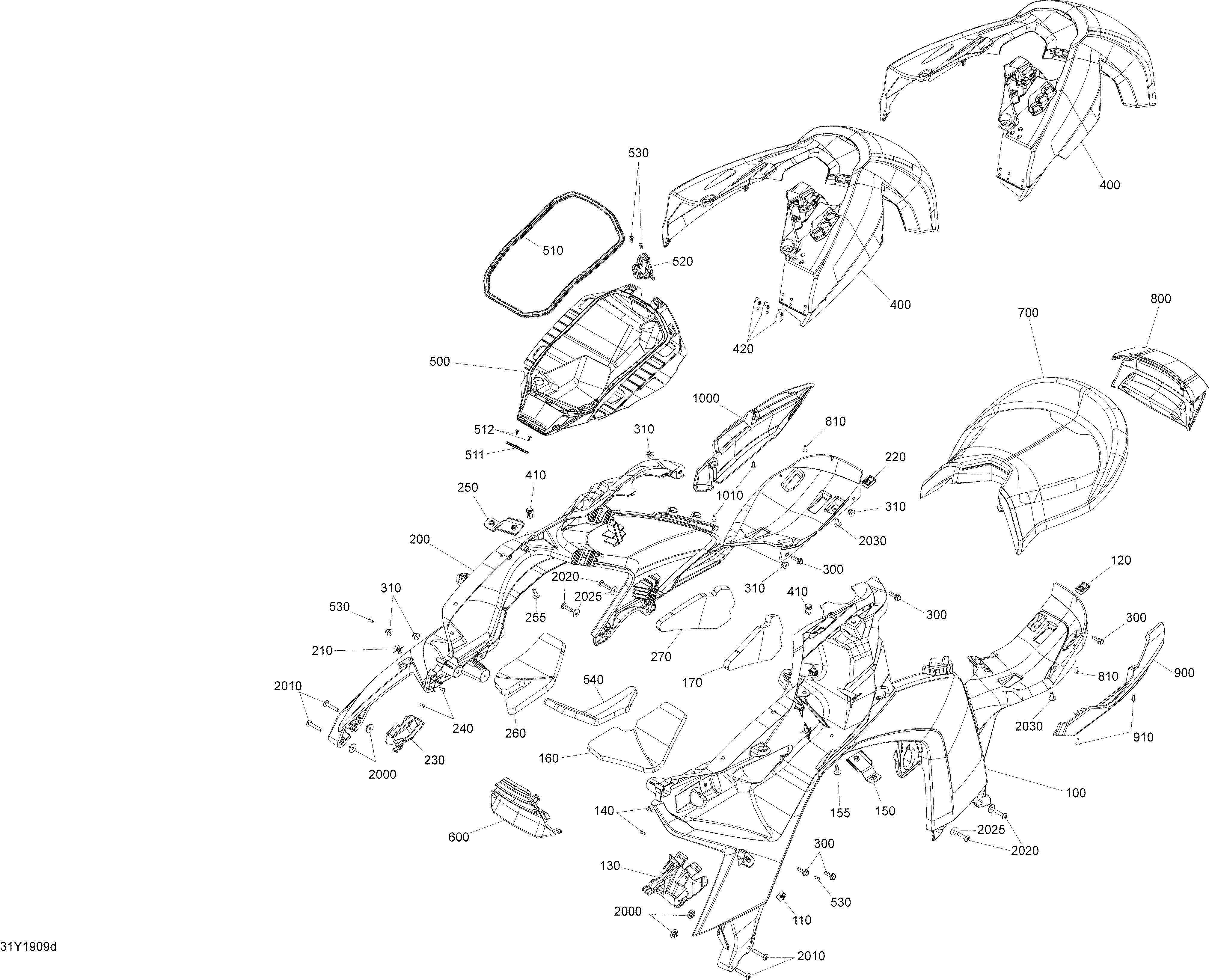

09- Body - Driver Seat / Upper Body Module для BRP 002 - RYKER STD 900 ACE - 2019
-
№АртикулНазвание
-
100705205817 LH Upper FrameLH Upper Frame
-
110293730080 Dart ClipDart Clip
-
120250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
130705013415 LH Holder (support)LH Holder (support)
-
140250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
150705207855 Low Beam Support Assy. InternationalLow Beam Support Assy. International
-
155250000722 Torx Screw M6 X 20. InternationalTorx Screw M6 X 20. International
-
160705013944 Acoustic Foam Upper Front LH. Engine 900 ACEAcoustic Foam Upper Front LH. Engine 900 ACE
-
170705013946 Acoustic Foam Upper Rear LH. Engine 900 ACEAcoustic Foam Upper Rear LH. Engine 900 ACE
-
200705205818 RH Upper FrameRH Upper Frame
-
210293730080 Dart ClipDart Clip
-
220250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
230705013416 RH Holder (support)RH Holder (support)
-
240250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
250705207855 Low Beam Support Assy. InternationalLow Beam Support Assy. International
-
255250000722 Torx Screw M6 X 20. InternationalTorx Screw M6 X 20. International
-
260705013945 Acoustic Foam Upper Front RH. Engine 900 ACEAcoustic Foam Upper Front RH. Engine 900 ACE
-
270705013947 Acoustic Foam Upper Rear RH. Engine 900 ACEAcoustic Foam Upper Rear RH. Engine 900 ACE
-
300207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
310233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
400705010726 Tank Cover, B-160 Deep Black. Canada/USATank Cover, B-160 Deep Black. Canada/USA
-
400705013589 Tank Cover, B-160 Deep Black. InternationalTank Cover, B-160 Deep Black. International
-
410293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
420515178223 Clip ConnectorClip Connector
-
500705205819 Storage Compartment FrontStorage Compartment Front
-
510708200794 Neoprene Seal JointNeoprene Seal Joint
-
511705013475 PivotPivot
-
512250001034 Torx-Truss Screw K40 X 10Torx-Truss Screw K40 X 10
-
520705007380 Push LatchPush Latch
-
530250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
540705013943 Acoustic Foiam, Storage Compartment. Engine 900 ACEAcoustic Foiam, Storage Compartment. Engine 900 ACE
-
600705013110 Front FairingFront Fairing
-
700708002411 Driver SeatDriver Seat
-
800705013202 Rear SpoilerRear Spoiler
-
810250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
900705013413 LH Side CapLH Side Cap
-
910250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
1000705013414 RH Side CapRH Side Cap
-
1010250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
2000705014119 Large Shoulder Nut M6Large Shoulder Nut M6
-
2010250000867 Torx-truss Hex. Screw M6X35, Nylon ProtTorx-truss Hex. Screw M6X35, Nylon Prot
-
2020250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
2025234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2030250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
