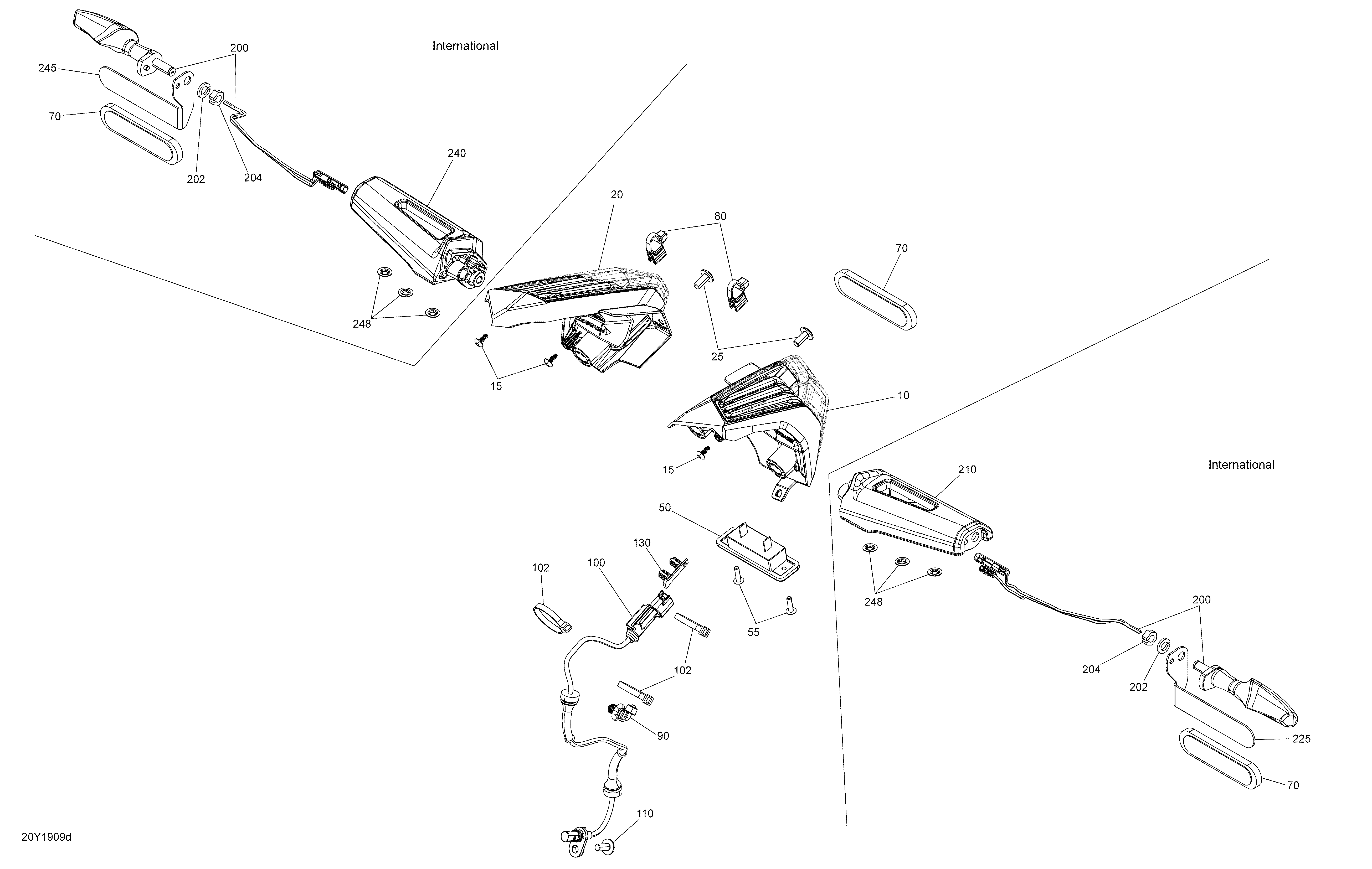

10- Electrical - Taillights для BRP 002 - RYKER STD 900 ACE - 2019
-
№АртикулНазвание
-
10710005284 Taillight LHTaillight LH
-
15250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
20710005285 Taillight RHTaillight RH
-
25250000789 Torx Truss M6X14Torx Truss M6X14
-
50710005501 License LightLicense Light
-
55250000287 Flanged Torx Screw K40 X 16Flanged Torx Screw K40 X 16
-
70705012439 Red Reflector. Canada/USARed Reflector. Canada/USA
-
70705012439 Red Reflector. InternationalRed Reflector. International
-
80710005037 Clip Tie-RapClip Tie-Rap
-
90710005237 Christmas Tree Tie-RapChristmas Tree Tie-Rap
-
100710005610 Speed SensorSpeed Sensor
-
102414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
110250000789 Torx Truss M6X14Torx Truss M6X14
-
130278002910 Clip (double dart)Clip (double dart)
-
200710005847 Light Tuen Signal Amber. InternationalLight Tuen Signal Amber. International
-
202710006520 Washer Slotted. InternationalWasher Slotted. International
-
204710006521 Nut Slotted. InternationalNut Slotted. International
-
210710006132 Support Turn Signal Rear LH. InternationalSupport Turn Signal Rear LH. International
-
225710006472 Support Reflector Rear LH. InternationalSupport Reflector Rear LH. International
-
240710006133 Support Turn Signal Rear RH. InternationalSupport Turn Signal Rear RH. International
-
245710006473 Support Reflector Rear RH. InternationalSupport Reflector Rear RH. International
-
248732610072 Push Nut. InternationalPush Nut. International
